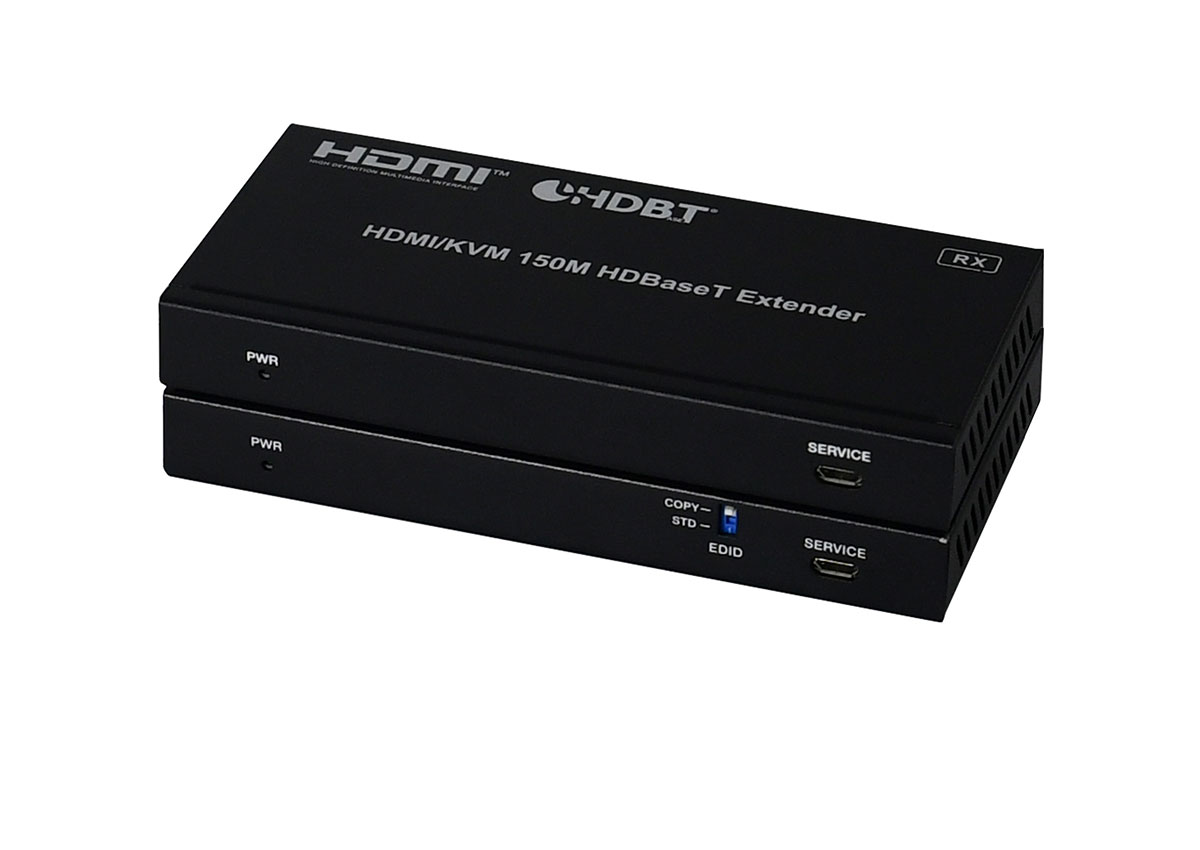

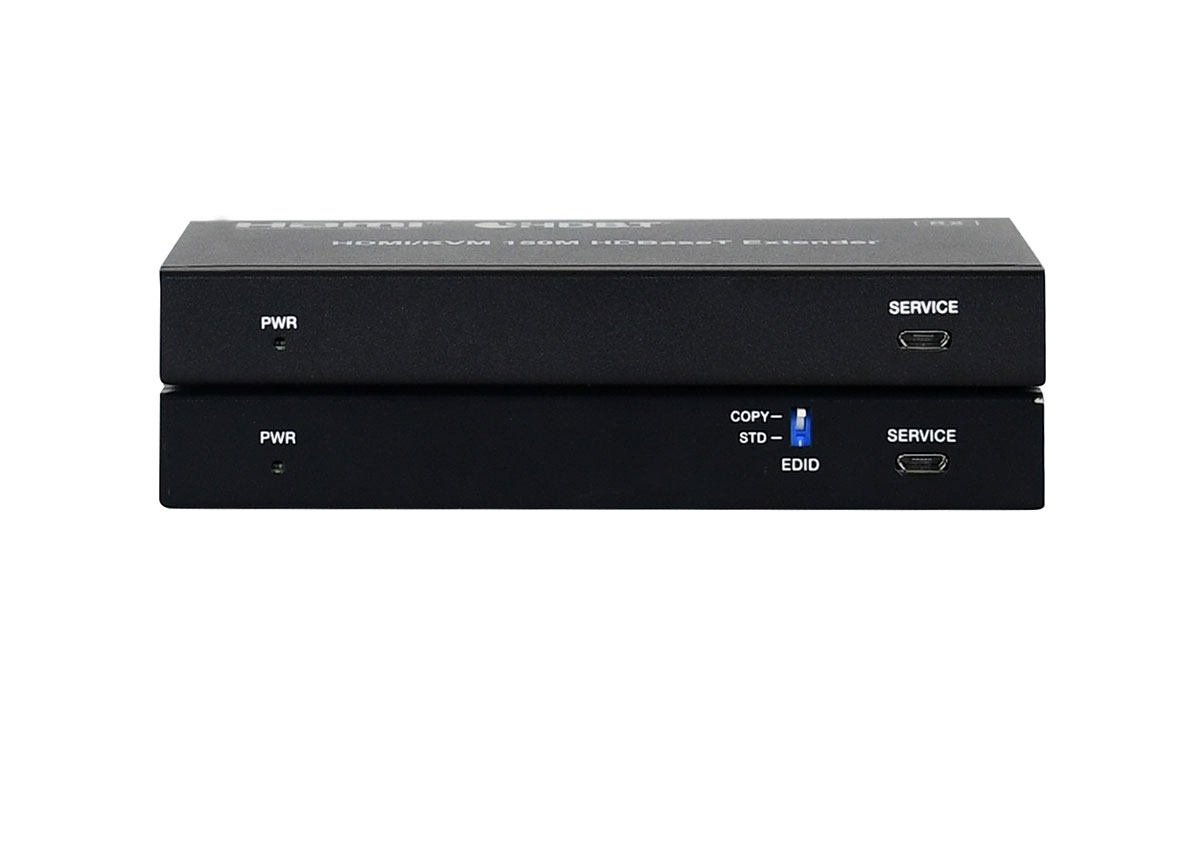

18Gbps HDBaseT Extender(150m) with KVM Function

Item no.18Gbps HDBaseT

18GBPS-150M-User-Manual DownLoad

Send Email Get Price

Product Overview Product Features Parameter Related Product Contact us

Product Overview

This 18Gbps HDBaseT Extender can extend HDMI signal, bi-directional IR control signal and USB KVM signal to a distance up to 150m via a single CAT6 cable. This product converts HDMI signal to standard HDBaseT signal and transmits it through LAN cable. It can easily control signal source device or display device from the remote end through bi-directional IR signal pass-through function, Video resolution up to 4K2K@60Hz YUV 4:4:4. It also supports USB KVM and POC function.

The extender can be widely used in other fields such as video conference system, multimedia signal broadcasting, HDMI signal extension, etc.

Product Features

HDMI2.0b,HDCP 2.2 and USB 1.1 compliant
Support 18Gbps video bandwidth
Support video resolution up to 4K2K@60Hz YUV 4:4:4
The transmission distance can be extended up to 492ft / 150m at the resolution of 1080P@60Hz, or 394ft /120m at 42K@60Hz 4:4:4 via a single CAT6 cable
Support bi-directional IR signal and USB KVM signal pass-through
Support bi-directional POC (Power over Cable) function
Compact design for easy and flexible installation

Parameter

Technical
HDMI Compliance	HDMI2.0b
HDCP Compliance	HDCP 2.2
Video Bandwidth	18Gbps
Video Resolution	Up to 4K2K@60Hz YUV 4:4:4
USB Compliance	USB 1.1
IR Level	5Vp-p
IR Frequency	Wideband 20K-60KHz
Transmission Distance	1080P@60--150m, 4K60--120m
Color Space	RGB, YCbCr_4:4:4, YCbCr_4:2:2
Color Depth	8-bit, 10-bit, 12-bit (1080P@60Hz) 8-bit (4K2K@60HZ YUV4:4:4) 8-bit, 10-bit, 12-bit (4K2K@30Hz)
HDR	HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio Format	LPCM 7.1CH, Dolby True HD, and DTS-HD Master
ESD Protection	Human body model---±8kV (Air-gap discharge) &±4kV(Contact discharge)
Connection

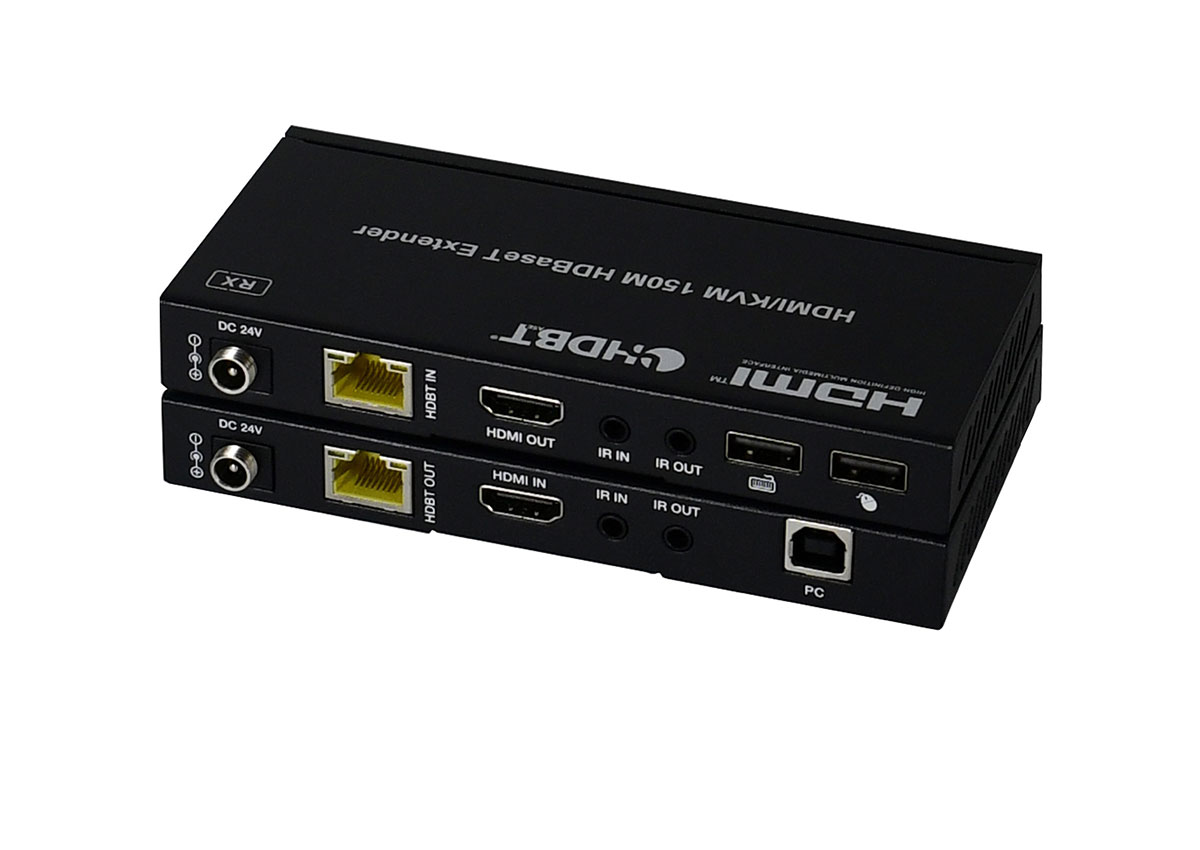

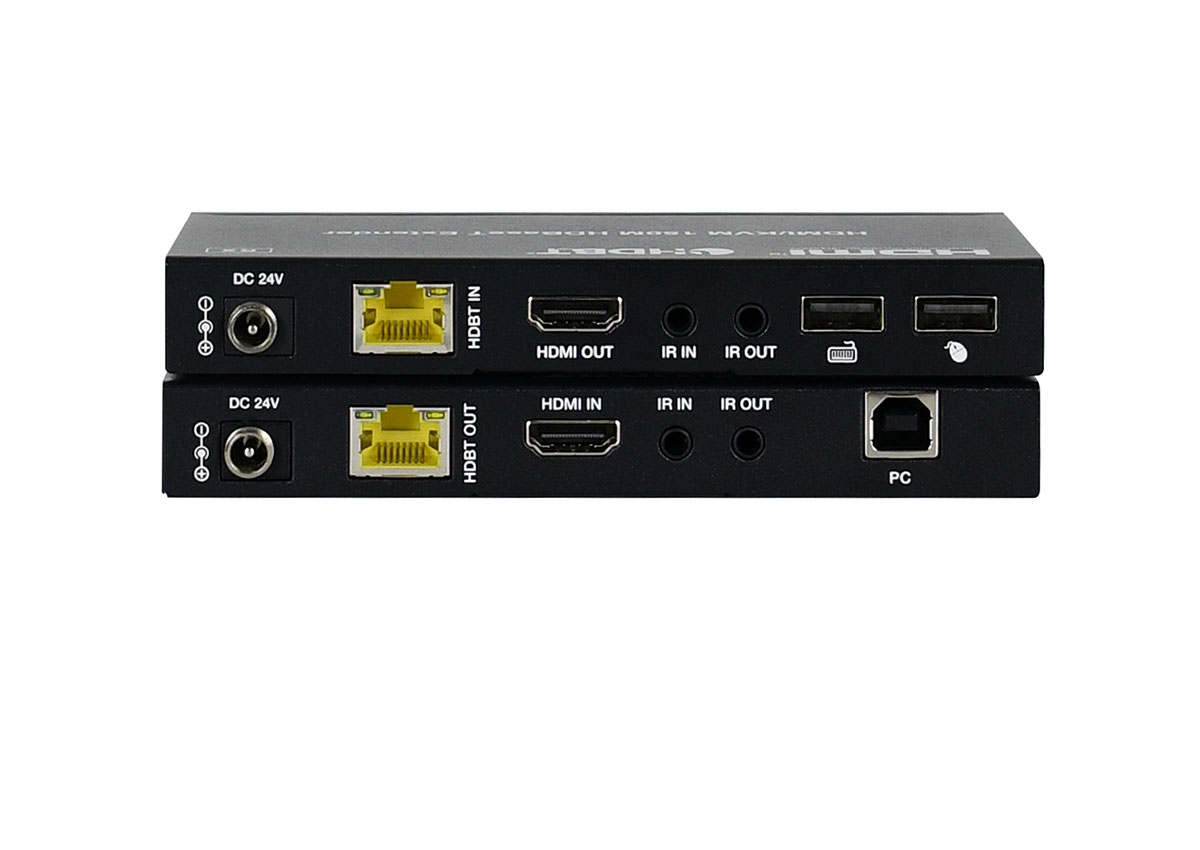

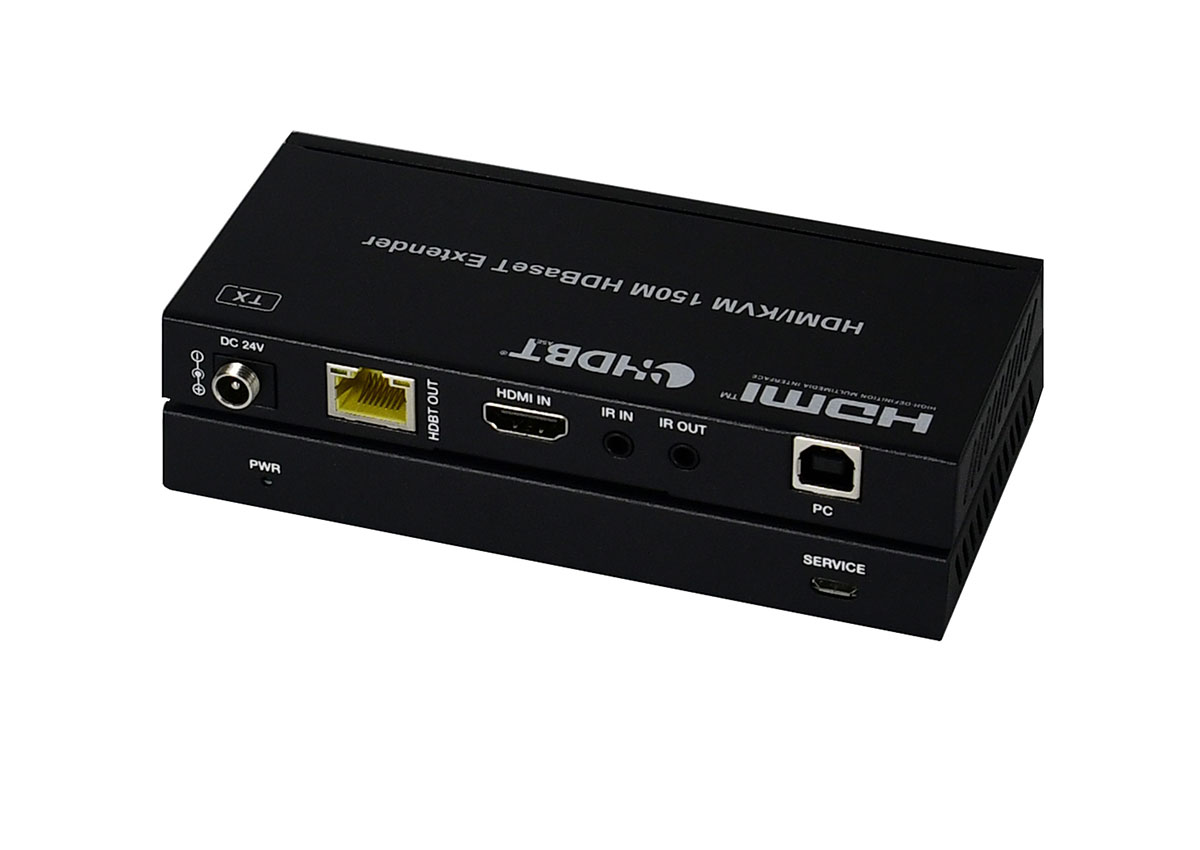

Transmitter	Input: 1xHDMI IN [Type A,19-pin female] 1xIR IN [35mm Stereo Mini-jack] 1xSERVICE [Micro-USB jack] 1xUSB [USB-B, 4-pin female] Output: 1xHDBT OUT[RJ45] 1xIR OUT [3.5mm Stereo Mini-jack]

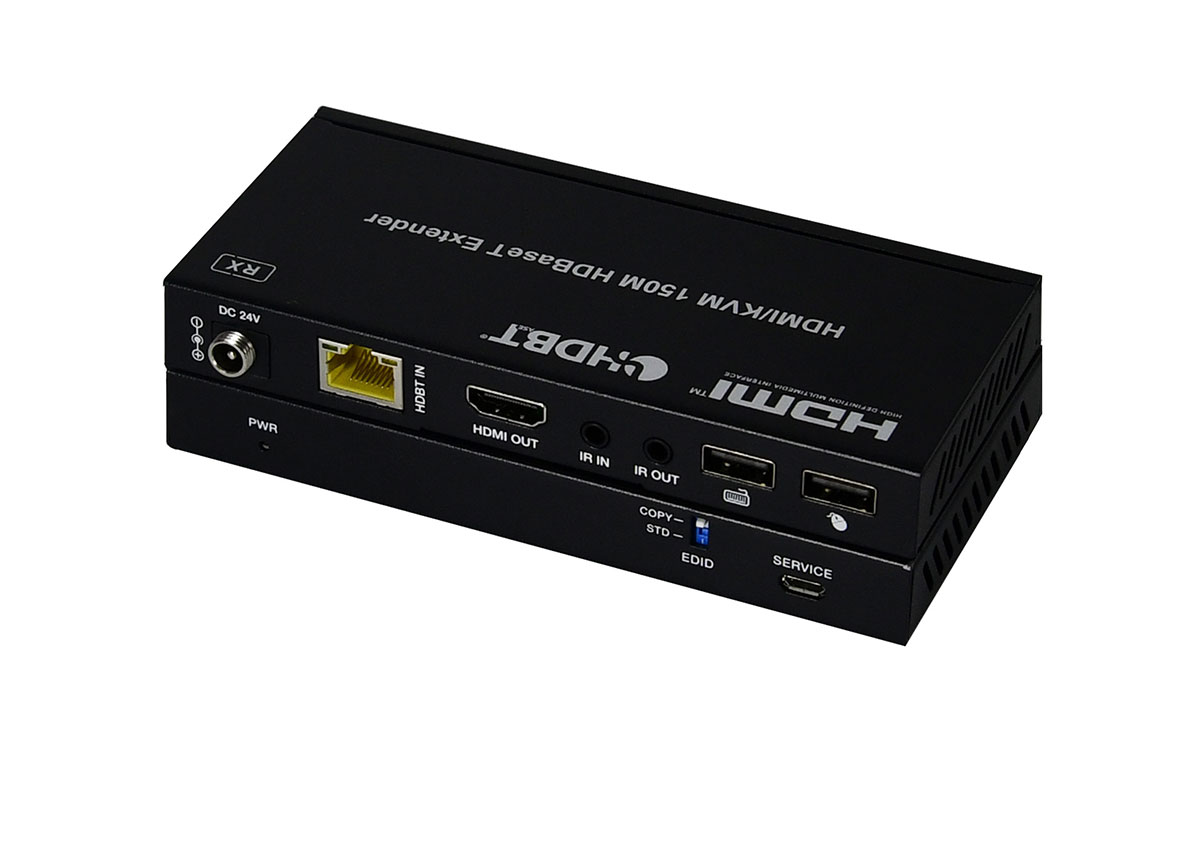

Receiver	Input: 1xHDBT IN [RJ45 with light] 1xIR IN [3.5mm Stereo Mini-jack] 1xSERVICE [Micro-USB jack] Output: 1xHDMI OUT [Type A, 19-pin female] 1xIR OUT [3.5mm Stereo Mini-jack] 2xUSB [USB-A, 4-pin female]
Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions	Transmitter/ Receiver:140mm (W)x65mm(D)x18mm(H)
Weight	Transmitter: 246g, Receiver: 246g
Power Supply	DC 24V/1A; Support POC function
Power Consumption	10W
Operating Temperature	0℃-40℃/32℉~104℉
Storage Temperature	-20℃~60℃/-4℉~140℉
Relative Humidity	20~90% RH(non-condensing)
