VGA 8 Port KVM Switch

Item no.8 Port KVM

The Axtron’s LCD KVM Switch features an integrates 15″/15.6″/17″/17.3″/18.5″/19″/21.5″ LCD screen, keyboard, and touchpad in a single console, occupying only 1U of rack space.

LCD-KVM-SWITCH DownLoad

Send Email Get Price

Product Overview Product Features Parameter Related Product Contact us

Product Overview

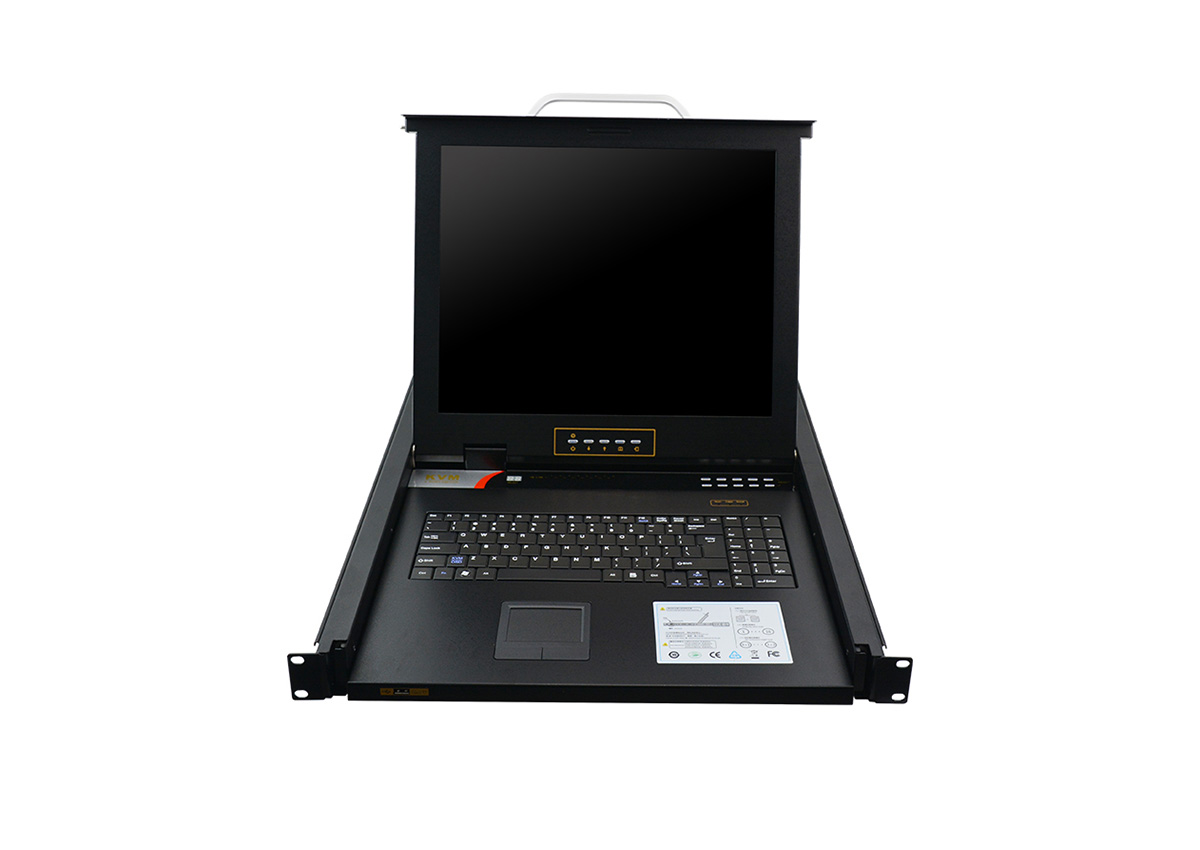

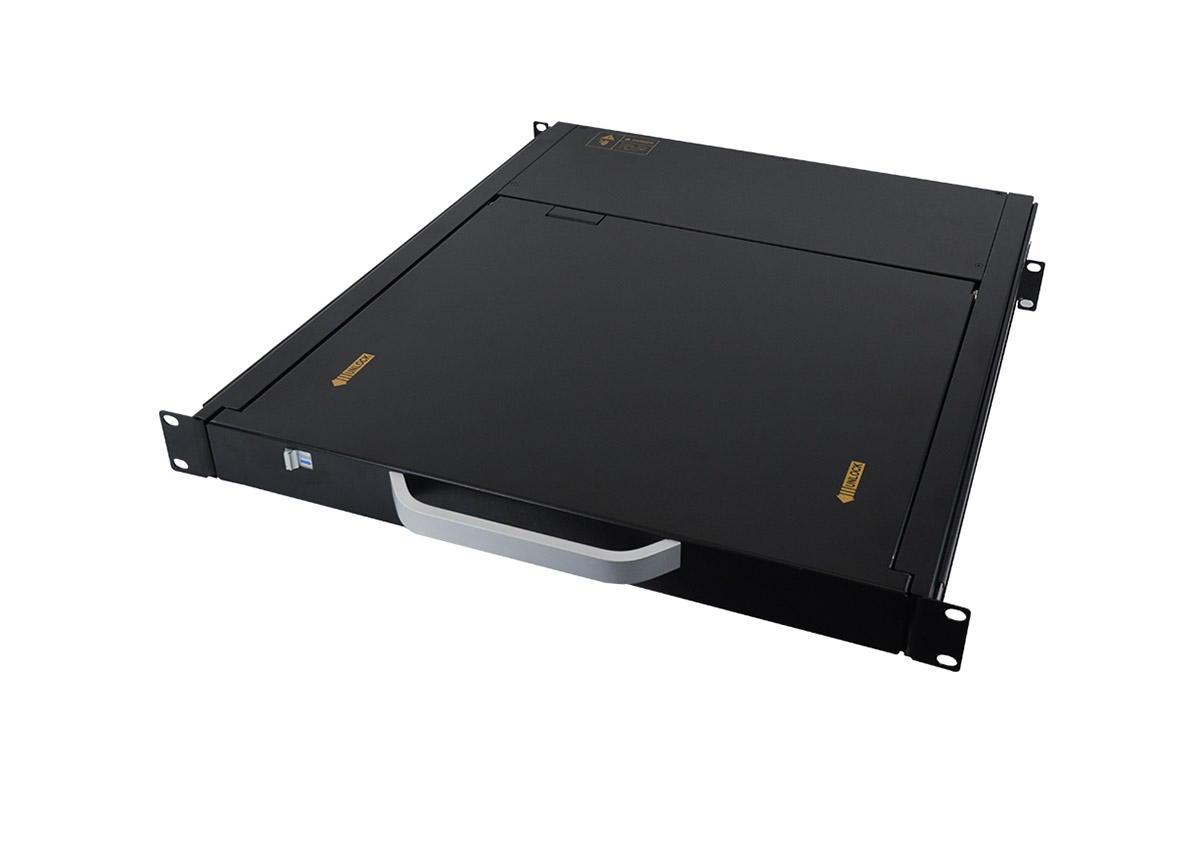

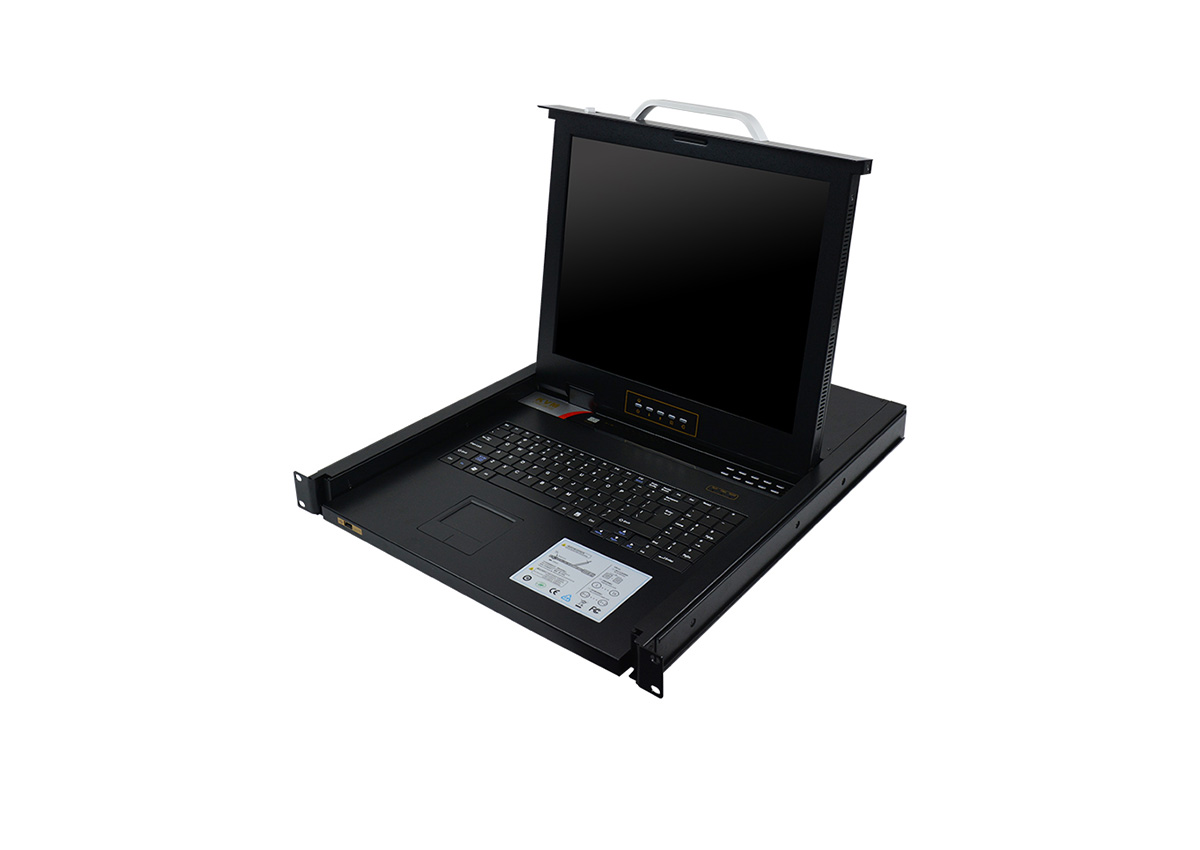

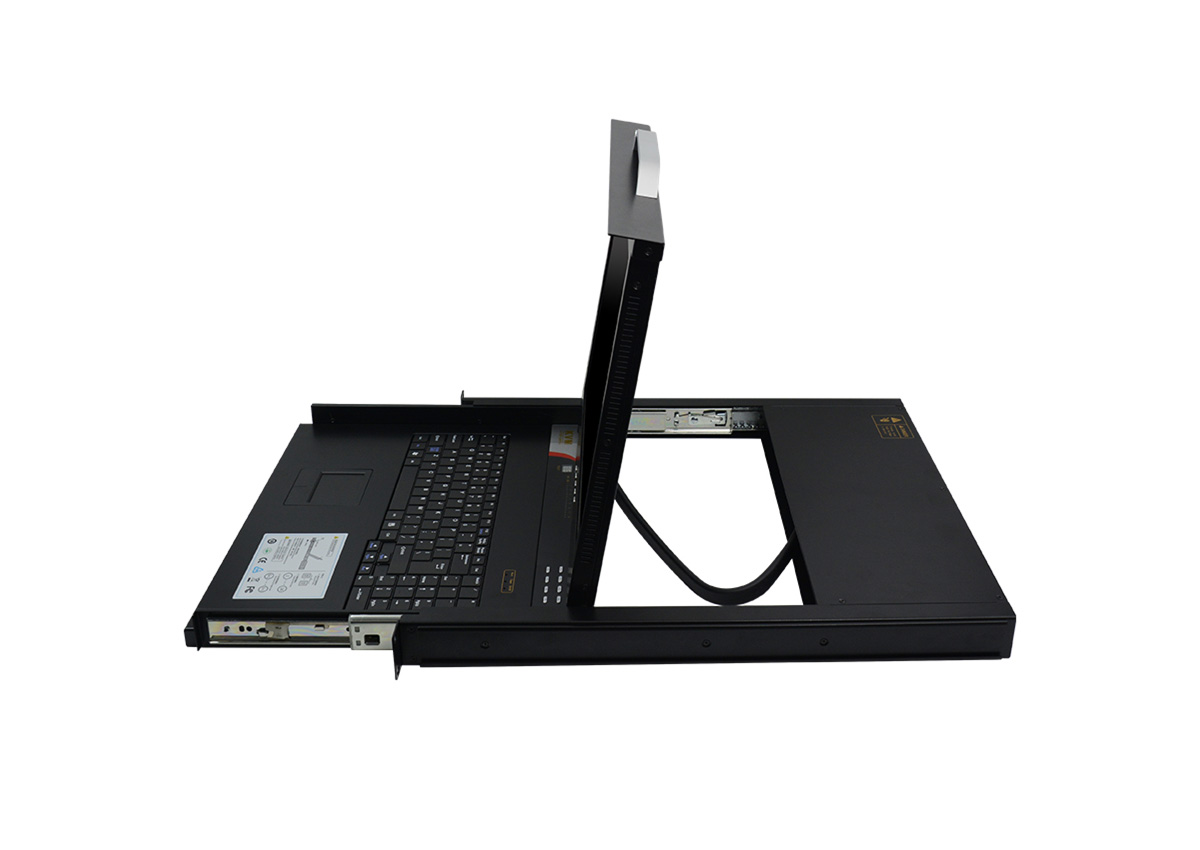

The Axtron’s LCD KVM Switch features an integrates 15"/15.6"/17"/17.3"/18.5"/19"/21.5" LCD screen, keyboard, and touchpad in a single console, occupying only 1U of rack space. It allows access and control of up to 4 / 8 / 16 computers from a single console (keyboard, mouse and monitor).

Switching between computers can be easily accomplished by front panel pushbuttons, keyboard hotkey combination or on-screen-display (OSD).

Product Features

4/8/16 port KVM switch
Support a local control terminal
Support multiple system: Microsoft Windows, Netware, Unix, Linux, Kylin
Not need to install software, and you can simply select your computer through on-screen menus, buttons, or hotkeys.
Provide multiple hotkey combinations for switching computer ports and other control functions. So the hotkey function can be used on multiple types of keyboards and also prevent the hotkey duplication problem.
Support two levels password security
Provides ACL (Access Control List) security functions, can store eight independent control lists
Hot pluggable: add or remove connected computers without shutting down the KVM switch or computer.
Support display plug and play
When switching computers, the keyboard state can be restored.

Parameter

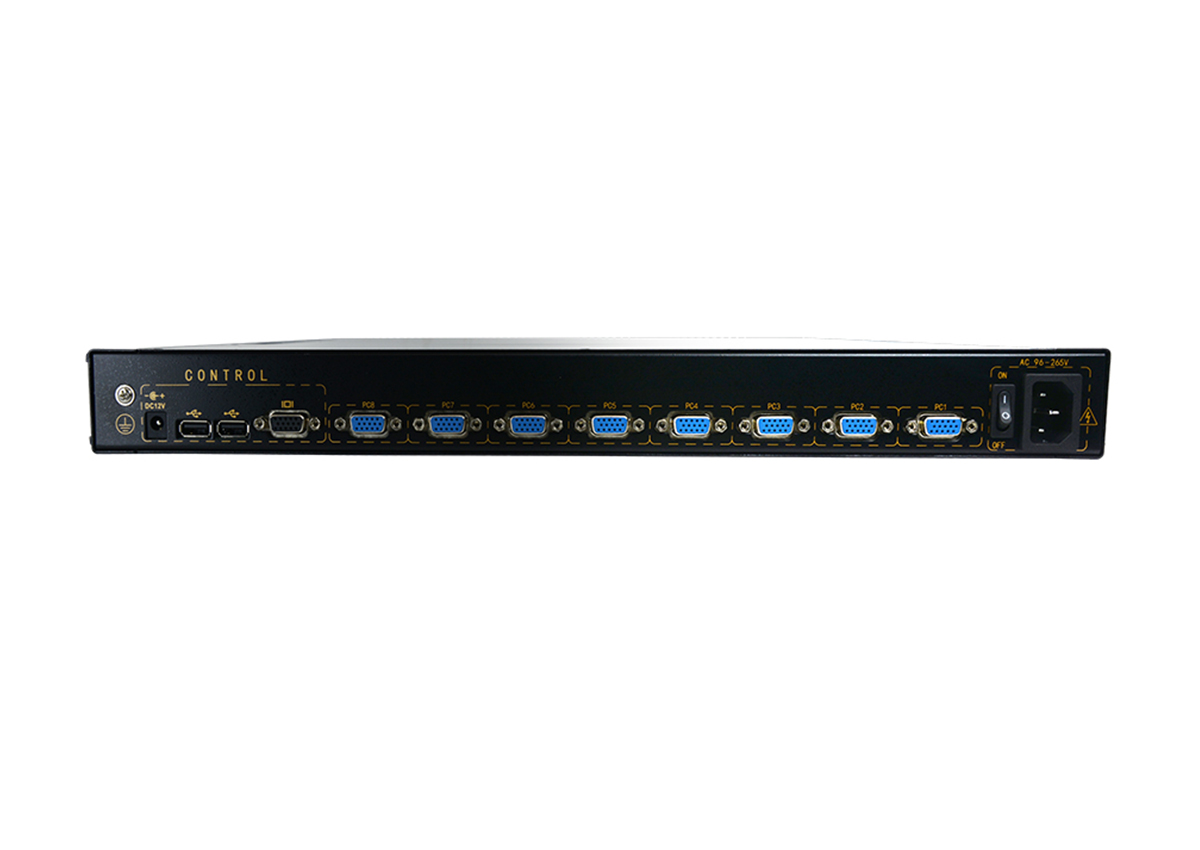

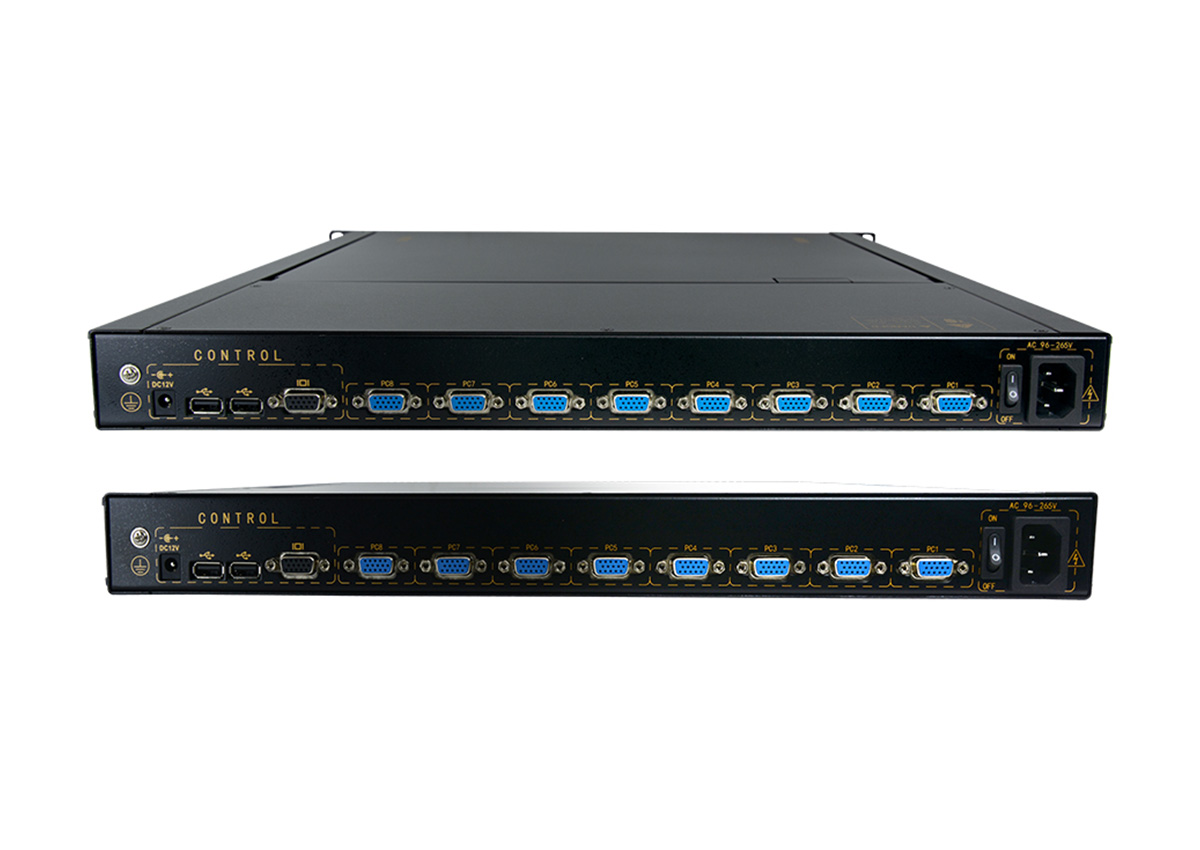

Port connector	USB&PS2/VGA
Number of ports	4/8/16
Control port type	USB/VGA
Longest VGA Cable	1.8-10m
Image resolution (local control end)	1920 x 1440
Computer selection	On-screen menus, hotkeys, buttons
Hotkeys	Multiple hotkeys (Scroll-Lock/Caps-Lock/Num-Lock/KVM OSD)
Computer port light	LED light for each port: digital display and blue LED signal light
Auto scan time	10-255 seconds
Keyboard	USB&PS2 notebook 104 keyboard, mechanical life: 1 million times
Mouse	PS2 Notebook Touchpad
Maximum number of cascade	Up to 256 computers 16-port model
LCD displays parameters	Display specification: 15"/15.6"/17"/17.3"/18.5"/19"/21.5"
	Display ratio: 4:3; 16:9
	Display type: XVGA -- FHD TFT LCD
	Display brightness: 300--1000 ( can customized)
	Display contrast ratio: 1000:1
	Display resolution: 1024 * 768 -- 1920 * 1080 Full HD
	Display color: 16.7 M
	Display backlight: LED life, working 30,000-40,000 hours
	Display pixels: see Appendix A for details.
	Display visual surface: see Appendix Form A for details
Power supply type	DC 12V adapter (built-in power supply random)
Power supply input	AC 100-240V, 50/60HZ, DC12V 3.33A.
Model structure	1U 19” Rack,
Enclosure material	Aluminum alloy + electrolytic plate
Case color	Industrial paint black sprinkle dot (color can be customized)
Model power	About 19 W
Operating humidity	0-80%, no condensation
Operating temperature	0~60℃
Storage temperature	-20~60℃
Gross weight of the model	17-20KG
Model size (mm)	See Appendix Table A

Appendix Table A：

Model size (mm):	Model display resolution:
15" series dimensions: 445 x 440 x 44	Display:1024*768 60/75HZ
15.6" series dimensions: 445 x 440 x 44	Display:1920*1024 60HZ
17" series size: 445x520x44	Display:1280*1024 60/75HZ
17.3" series size:445x475x44	Display:1920*1080 60HZ
19" series size:445x585X44	Display:1280*1024 60/75HZ
18.5" series size:445x530x44	Display:1366*768 60/75HZ
21.5" series size:445x668x44	Display:1920*1080 60HZ
18.5"HD series size:445x530x44	Display:1920*1080 60HZ
23.8"HD series size:445x705x44	Display:1920*1080 60HZ
Model display:	Display visible type (mm):
15" series	305203 4:3 pixels: 0.2640.264
15.6" series	346194 16:9 pixels: 0.1800.180
17" series	338269 4:3 pixels: 0.2640.264
17.3" series	380215 16:9 pixels: 0.1980.198
10" series	377300 4:3 pixels: 0.2930.293
18.5"HD series	408230 16:9 pixels: 0.2130.213
18.5"SD series	408230 16:9 pixels: 0.2990.299
