VGA 16 Port KVM Switch

Item no.16 Port KVM

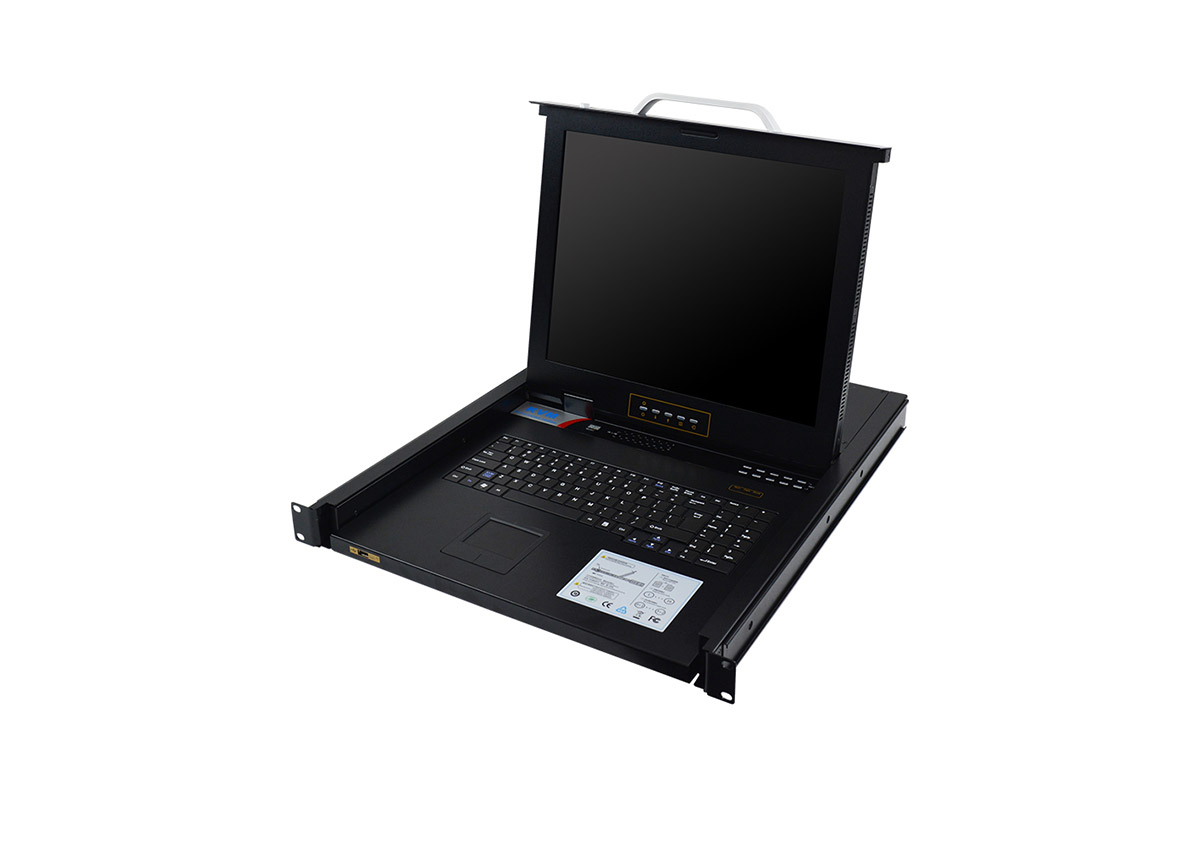

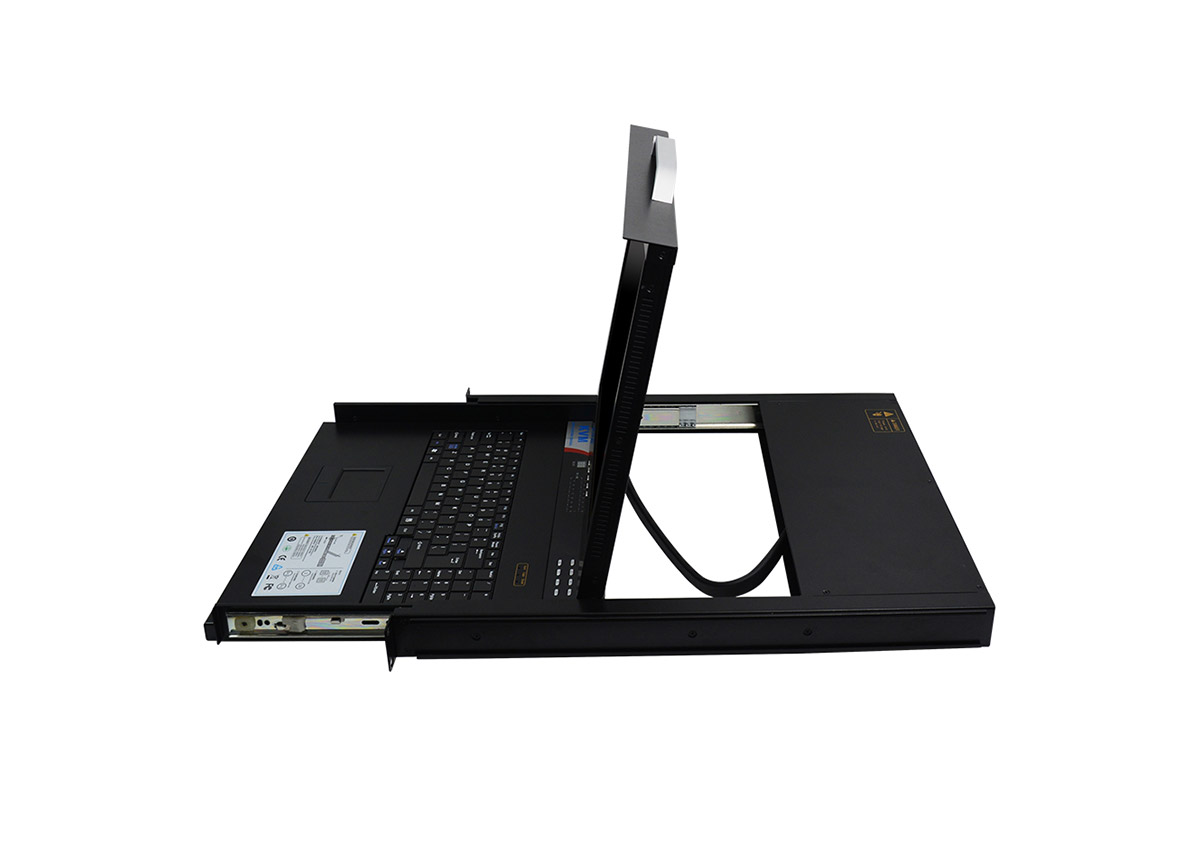

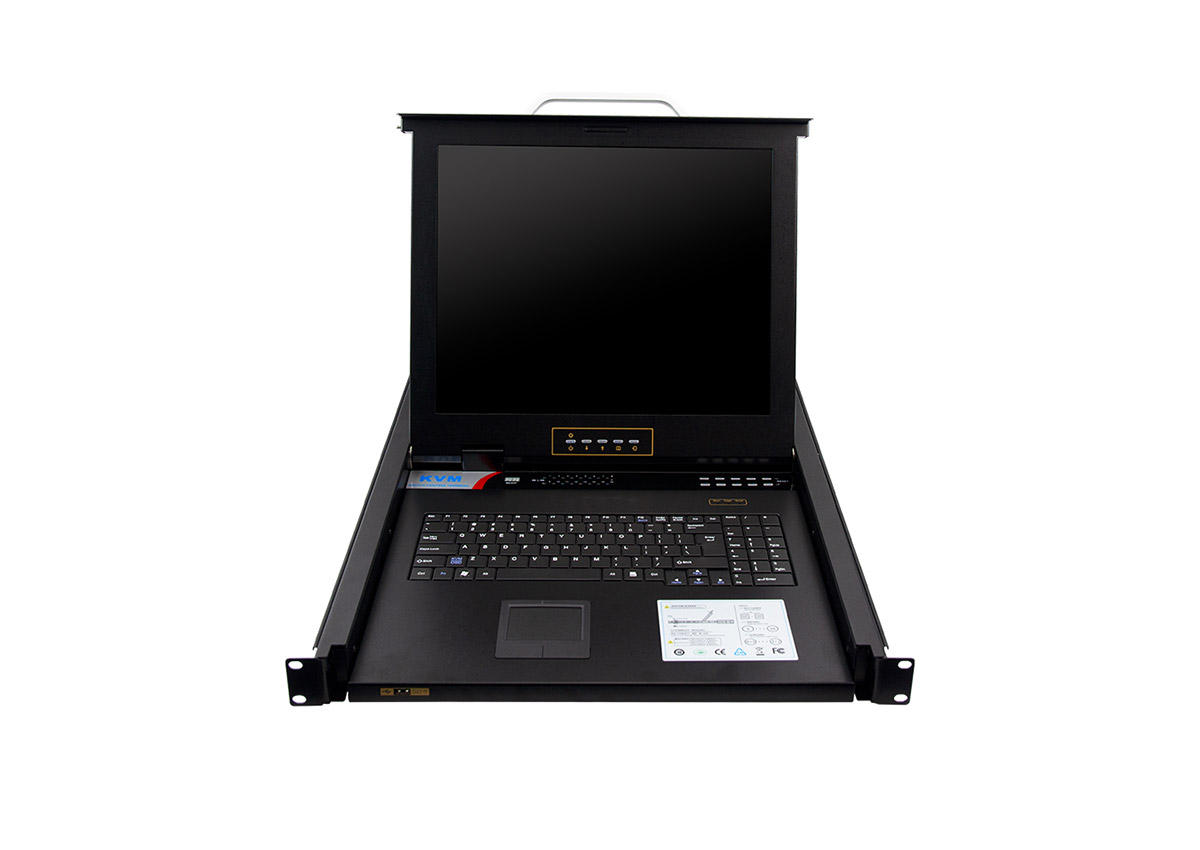

The Axtron’s LCD KVM Switch features an integrates 15″/15.6″/17″/17.3″/18.5″/19″/21.5″ LCD screen, keyboard, and touchpad in a single console, occupying only 1U of rack space.

Product Overview

The Axtron’s LCD KVM Switch features an integrates 15"/15.6"/17"/17.3"/18.5"/19"/21.5" LCD screen, keyboard, and touchpad in a single console, occupying only 1U of rack space. It allows access and control of up to 4 / 8 / 16 computers from a single console (keyboard, mouse and monitor).

Switching between computers can be easily accomplished by front panel pushbuttons, keyboard hotkey combination or on-screen-display (OSD).

Product Features

  • 4/8/16 port KVM switch
  • Support a local control terminal
  • Support multiple system: Microsoft Windows, Netware, Unix, Linux, Kylin
  • Not need to install software, and you can simply select your computer through on-screen menus, buttons, or hotkeys.
  • Provide multiple hotkey combinations for switching computer ports and other control functions. So the hotkey function can be used on multiple types of keyboards and also prevent the hotkey duplication problem.
  • Support two levels password security
  • Provides ACL (Access Control List) security functions, can store eight independent control lists
  • Hot pluggable: add or remove connected computers without shutting down the KVM switch or computer.
  • Support display plug and play
  • When switching computers, the keyboard state can be restored.

Parameter

Port connector

USB&PS2/VGA

Number of ports

4/8/16

Control port type

USB/VGA

Longest VGA Cable

1.8-10m

Image resolution (local control end)

1920 x 1440

Computer selection

On-screen menus, hotkeys, buttons

Hotkeys

Multiple hotkeys (Scroll-Lock/Caps-Lock/Num-Lock/KVM OSD)

Computer port light

LED light for each port: digital display and blue LED signal light

Auto scan time

10-255 seconds

Keyboard

USB&PS2 notebook 104 keyboard, mechanical life: 1 million times

Mouse

PS2 Notebook Touchpad

Maximum number of cascade

Up to 256 computers 16-port model

LCD displays parameters

Display specification: 15"/15.6"/17"/17.3"/18.5"/19"/21.5"

Display ratio: 4:3; 16:9

Display type: XVGA -- FHD     TFT LCD

Display brightness: 300--1000 ( can customized)

Display contrast ratio: 1000:1

Display resolution: 1024 * 768 -- 1920 * 1080 Full HD

Display color: 16.7 M

Display backlight: LED life, working 30,000-40,000 hours

Display pixels: see Appendix A for details.

Display visual surface: see Appendix Form A for details

Power supply type

DC 12V adapter (built-in power supply random)

Power supply input

AC 100-240V, 50/60HZ, DC12V  3.33A.

Model structure

1U 19” Rack,

Enclosure material

Aluminum alloy + electrolytic plate

Case color

Industrial paint black sprinkle dot (color can be customized)

Model power

About 19 W

Operating humidity

0-80%, no condensation

Operating temperature

0~60℃

Storage temperature

-20~60℃

Gross weight of the model

17-20KG

Model size (mm)

See Appendix Table A



Appendix Table A:

Model size (mm): Model display resolution:
15" series dimensions: 445 x 440 x 44 Display:1024*768      60/75HZ
15.6" series dimensions: 445 x 440 x 44 Display:1920*1024     60HZ
17" series size: 445x520x44 Display:1280*1024     60/75HZ
17.3" series size:445x475x44 Display:1920*1080     60HZ
19" series size:445x585X44 Display:1280*1024     60/75HZ
18.5" series size:445x530x44 Display:1366*768       60/75HZ
21.5" series size:445x668x44 Display:1920*1080     60HZ
18.5"HD series size:445x530x44 Display:1920*1080     60HZ
23.8"HD series size:445x705x44 Display:1920*1080     60HZ
Model display: Display visible type (mm):
15" series 305*203 4:3         pixels: 0.264*0.264
15.6" series 346*194 16:9        pixels: 0.180*0.180
17" series 338*269 4:3         pixels: 0.264*0.264
17.3" series 380*215 16:9        pixels: 0.198*0.198
10" series 377*300 4:3          pixels: 0.293*0.293
18.5"HD series 408*230 16:9        pixels: 0.213*0.213
18.5"SD series 408*230 16:9        pixels: 0.299*0.299
