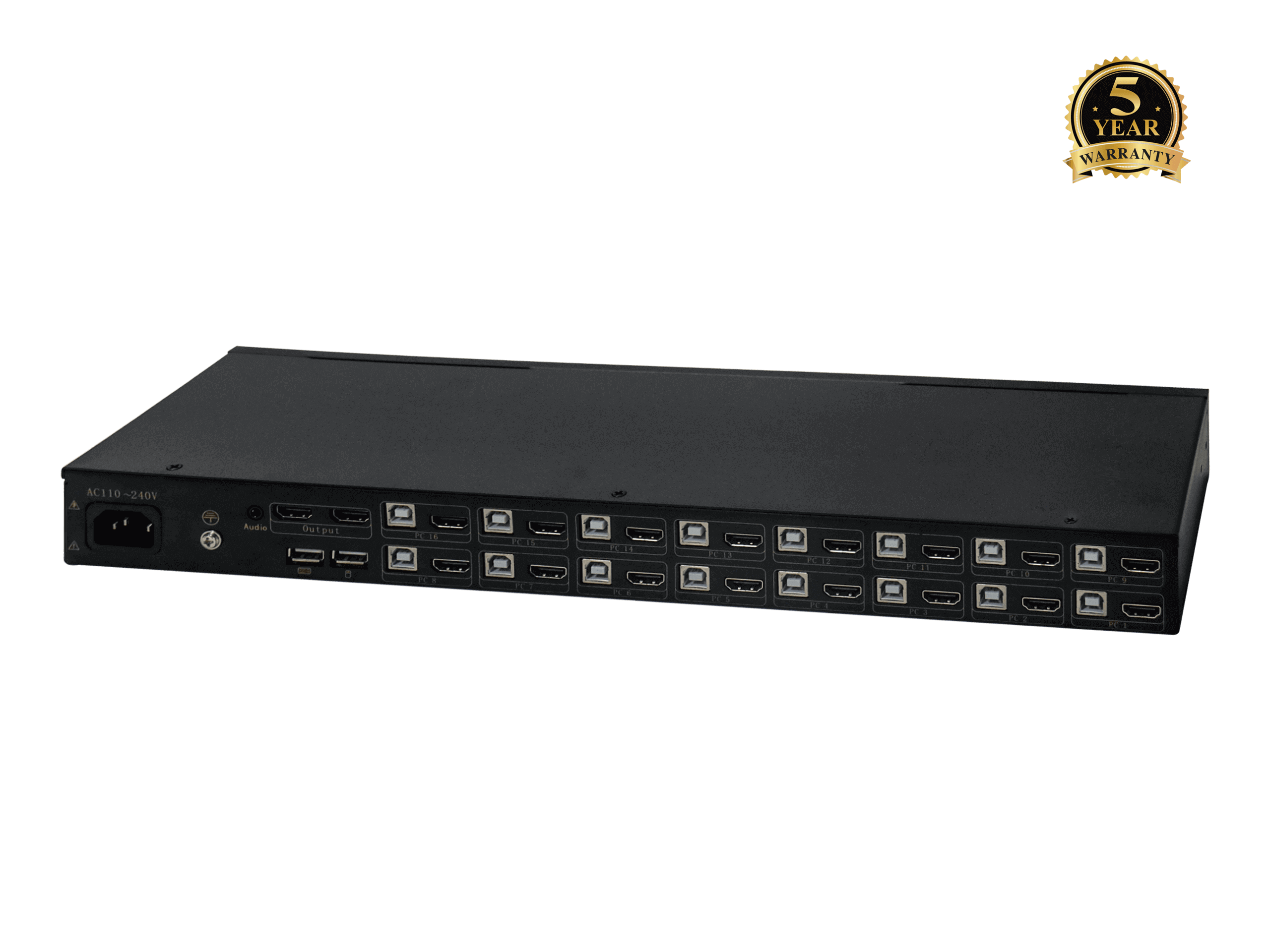

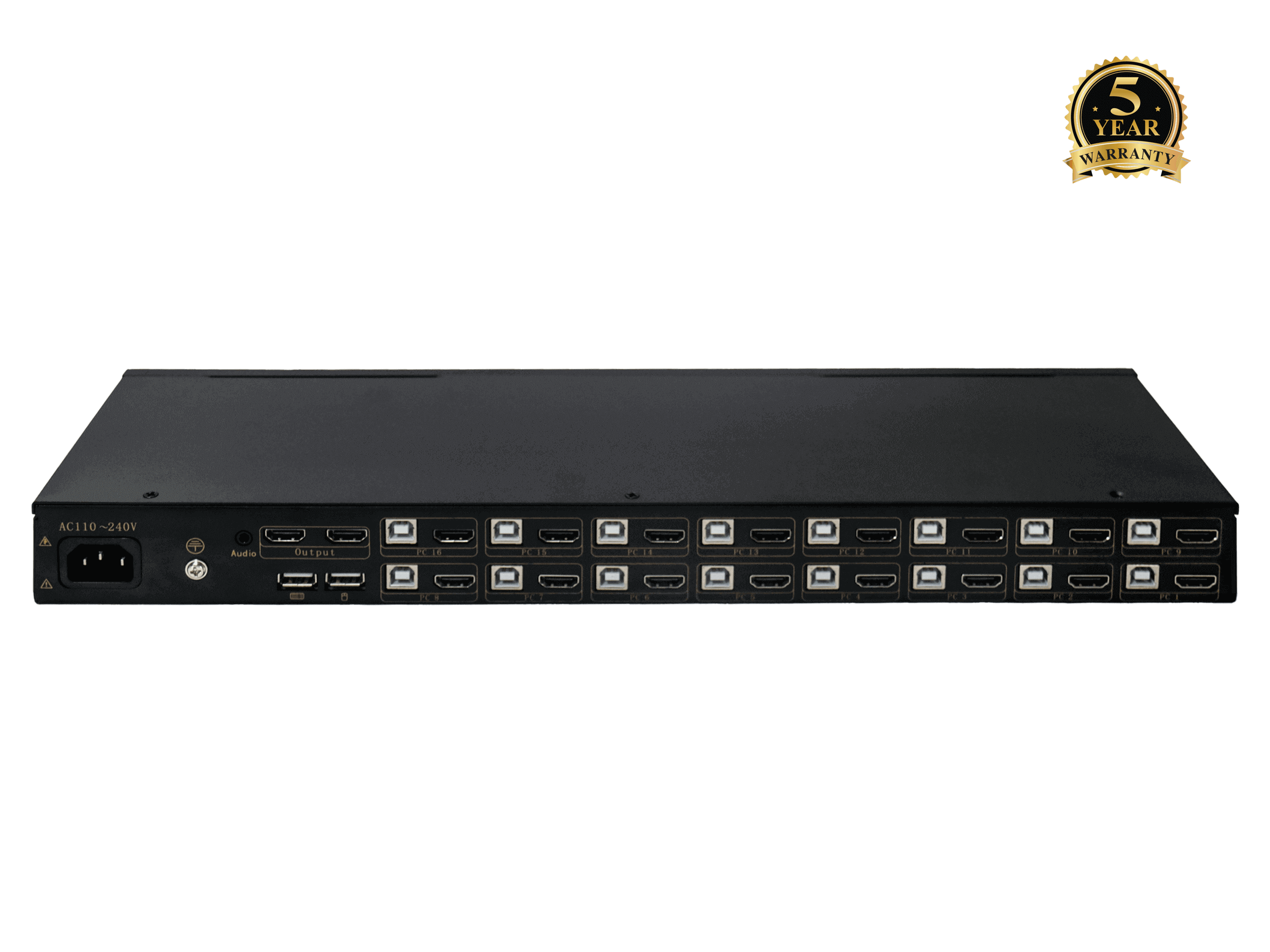

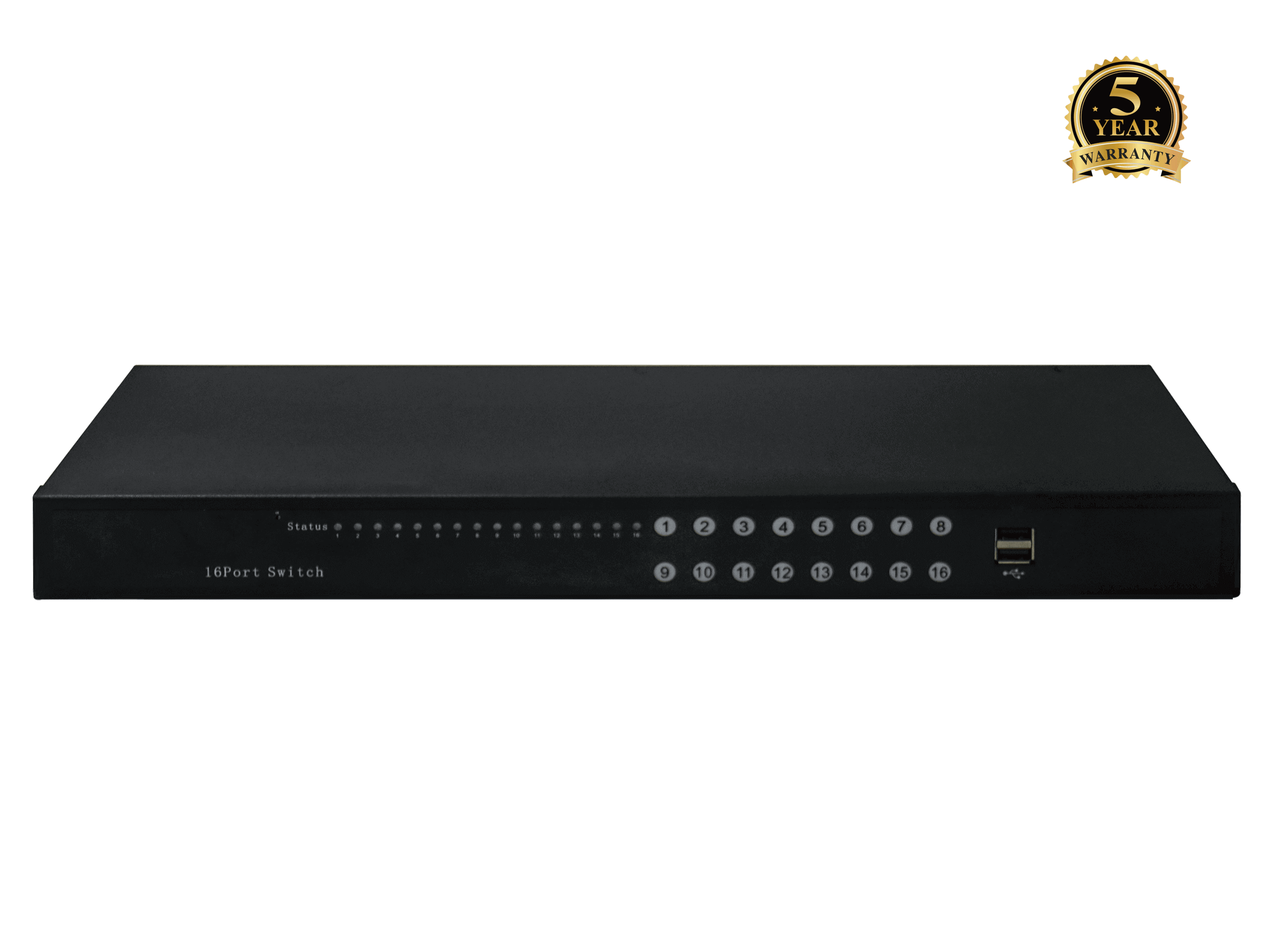

Rackmount HDMI 16 Ports

Item no.1016HDMI

1U Rack-Mountable,HDMI Port,USB2.0,3 Switch method,3840×2160@30Hz.

    Product Overview

    The 1016HDMI rack-mountable USB KVM switch allows access and control of up to 16 computers from a single console (keyboard, mouse, and monitor). By cascading to an additional 31 additional switches, up to 512 computers can be controlled from a single keyboard and mouse console.

    Support resolutions up to 3840x2160; DDC2B. Switching between computers can be easily done through front panel buttons, keyboard hotkey combinations, or on-screen display (OSD).

    The rack-mounted KVM switch supports USB connections for the console and computers, allowing for the connection of an additional HDMI display.

    Product Features

    • Standard 19-inch rack installation, occupying only 1U rack space.
    • Standard HDMI connection - Connect to servers or computers through standard HDMI connectors.
    • Supports computers with USB keyboards and mice.
    • Convenient computer switching is achieved through front panel buttons, keyboard hotkey combinations, or on-screen display (OSD).
    • Automatic scanning function, used to monitor the computer selected by the user.
    • Hot plug - You can add or remove computers without shutting down the switch.
    • By naming the server and entering the SN number in a fuzzy manner, you can quickly locate and select the server security features you need.
    • A single group of control terminals manages 16 servers
    • Can cascade multiple devices and manage up to 512 computers
    • Support multi-user account management and management level, password protection and search PC server name
    • High brightness, high definition, resolution up to 3840x2160@30Hz
    • Support various operating systems:Dos/Windows series, Linux, Unix Mac OS 8.6/9/10, SUN Solaris 8/9

    Parameter

    Model TX-1016HDMI
    direct computer connection 16 units
    Maximum computer connections 512 units
    cable port HDMI interface (3*USB keyboard and mouse)
    Toggle scan time 1~255 seconds (OSD adjustable)
    Applicable cabinet 800-1040 MM
    switch mode  hotkey switch key switch OSD
    Display resolution: 3840*2160   brightness: 300nits   contrast ratio 1000:1
    LED display control multilingual OSD Adjust for best results
    Voltage input  A110V-240V 50Hz-60Hz   power:10W
    Cabinet material High-strength corrosion-resistant steel plate
    color Insulating black paint (Other colors available)
    physical dimension 135mm(deep)*444mm(Width)*43.8mm(high)
    weight 3.7KG
    storage temperature -30℃~70℃
    Operating temperature -10℃~60℃
    humidity  0%~80%RH
    Safety certification  FCC CE ROHS ISO9001
