OVER IP Rackmount VGA 16 Ports

Item no.1016IPVGA

1U Rack-Mountable,VGA Port,USB2.0,3 Switch method，1920×1080@30-60Hz.

Send Email Get Price

Product Overview Product Features Parameter Related Product Contact us

Product Overview

The 1016IPVGA rack-mountable USB KVM switch allows access and control of up to 16 computers from a single console (keyboard, mouse, and monitor). By cascading to an additional 15 additional switches, up to 512 computers can be controlled from a single keyboard and mouse console.

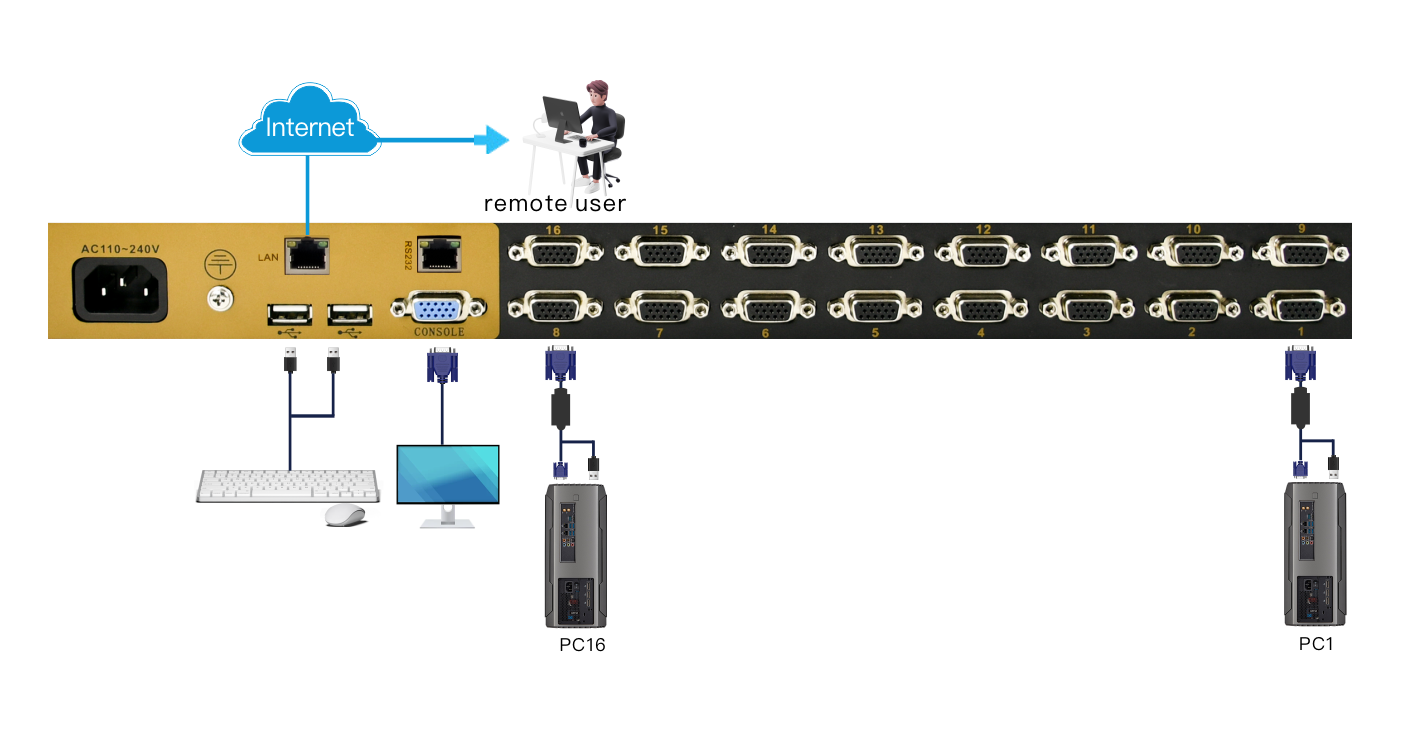

Uses TCP/IP communication protocol, and can be accessed from anywhere on the local area network, wide area network, or Internet through an IE browser or Windows-based client. The IP KVM 16-port allows one local user and one remote user to monitor and access 16 servers from one console.

Support resolutions up to 1920x1080; DDC2B. Switching between computers can be easily done through front panel buttons, keyboard hotkey combinations, or on-screen display (OSD).

The rack-mounted KVM switch supports USB connections for the console and computers, allowing for the connection of an additional VGA display.

Product Features

Standard 19-inch rack installation, occupying only 1U rack space.
Standard VGA connection - Connect to servers or computers through standard VGA connectors.
Adaptive 10/100/1000Mbps network.
Remote users and local users can control the same server/computer simultaneously.
Configurable user and group permissions for server access and control
Support firmware upgrade
Supports computers with USB keyboards and mice.

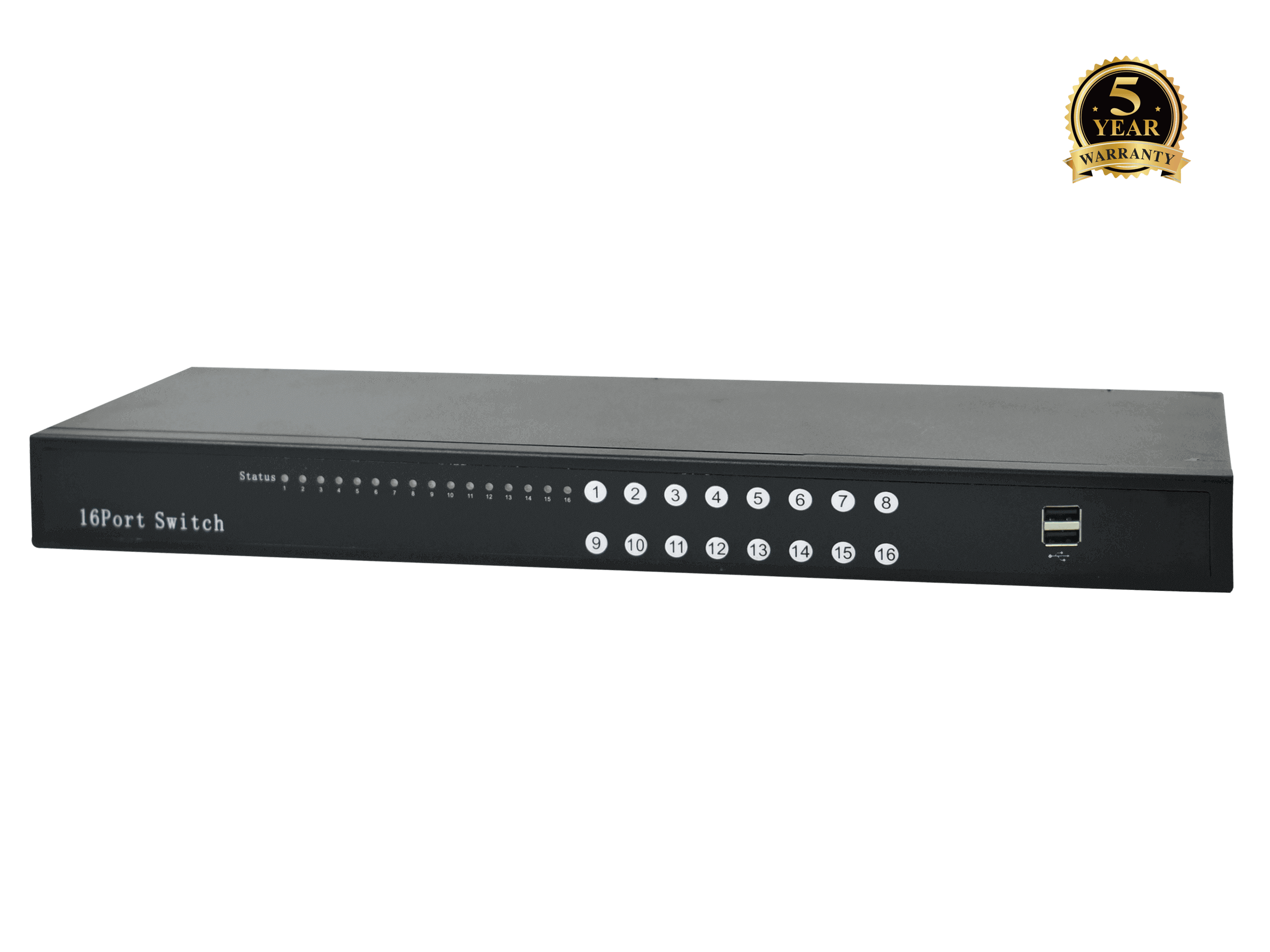

Convenient computer switching is achieved through front panel buttons, keyboard hotkey combinations, or on-screen display (OSD).
Automatic scanning function, used to monitor the computer selected by the user.
Hot plug - You can add or remove computers without shutting down the switch.
By naming the server and entering the SN number in a fuzzy manner, you can quickly locate and select the server security features you need.
A single group of control terminals manages 16 servers
Can cascade multiple devices and manage up to 512 computers
Support multi-user account management and management level, password protection and search PC server name
High brightness, high definition, resolution up to 1920x1080@60Hz
Support various operating systems：Dos/Windows series, Linux, Unix Mac OS 8.6/9/10, SUN Solaris 8/9

Parameter

Model	TX-1016IPHD
direct computer connection	16 units
Maximum computer connections	512 units
cable port	HDMI interface (3*USB keyboard and mouse)
Toggle scan time	1~255 seconds (OSD adjustable)
Applicable cabinet	800-1040 MM
switch mode	hotkey switch key switch OSD
Display	resolution: 1920*1080 brightness: 300nits contrast ratio 1000:1
LED display control	multilingual OSD Adjust for best results
Voltage input	A110V-240V 50Hz-60Hz power:10W
Cabinet material	High-strength corrosion-resistant steel plate
color	Insulating black paint (Other colors available)
physical dimension	135mm(deep)444mm(Width)43.8mm(high)
weight	3.7KG
storage temperature	-30℃~70℃
Operating temperature	-10℃~60℃
humidity	0%~80%RH
Safety certification	FCC CE ROHS ISO9001
