KVM100V

Item no.KVM100V

With VGA (analog) and HDMI (digital) video signal input
Receiver (RX) dual copy display output（HDMI+VGA）
With two standard RS-232 and RS-485 communication ports
Excellent EMC electromagnetic compatibility performance
USB2.0 protocol pass-through without third party driver
Meet the use in the high altitude environment of 5500m

KVM100V DownLoad

Send Email Get Price

Product Overview Product Features Parameter Related Product Contact us

Product Overview

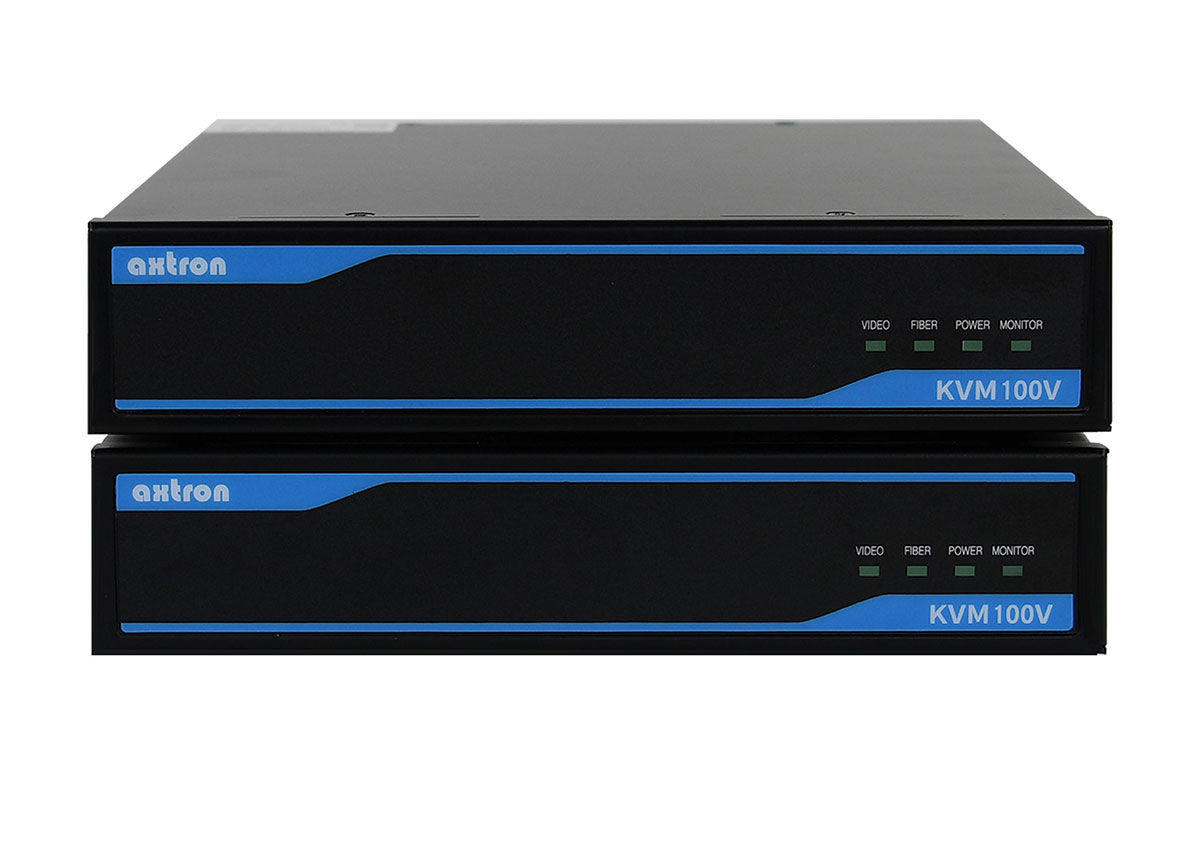

KVM100V is a KVM signal long line driver developed for industrial automation and rail transit industry applications. Its core uses high-speed FPGA chip for signal acquisition and coding, and then uses single-mode and multi-mode optical fiber as the carrier to transmit high-definition audio and video and control signals (including USB, PS/2 keyboard and mouse, 3.5 mm stereo audio, VGA video, HDMI video, RS-232 & RS-485, etc.) according to the optical modules with different communication distances, remote transmission and control within the range of 500 meters to 80 km can be realized. The minimum working unit of KVM100V consists of a transmitter (TX) and a receiver (RX). The transmitter and receiver are designed in a compact structure, which is convenient to be installed on the console or in a compact space.

Product Features

With VGA (analog) and HDMI (digital) video signal input
Receiver (RX) dual copy display output（HDMI+VGA）
With two standard RS-232 and RS-485 communication ports
Excellent EMC electromagnetic compatibility performance
USB2.0 protocol pass-through without third party driver
Meet the use in the high altitude environment of 5500m

Parameter

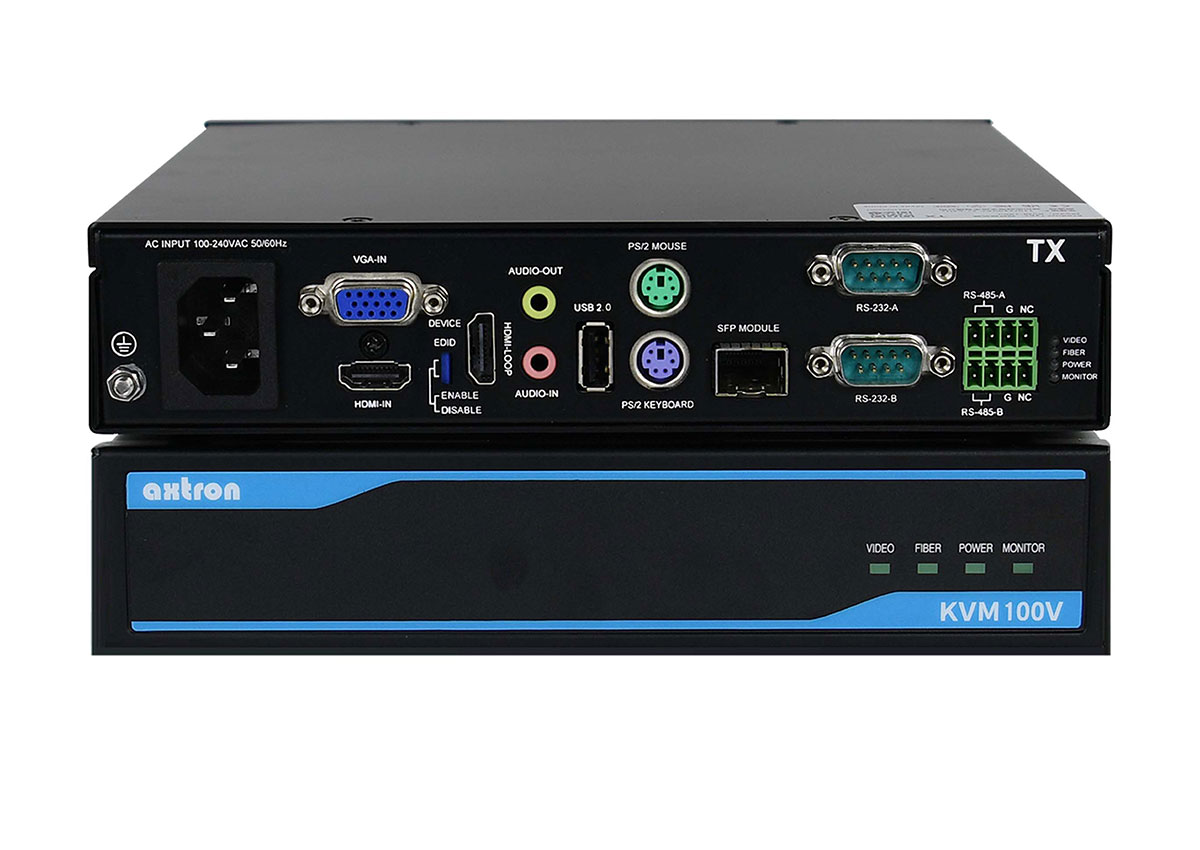

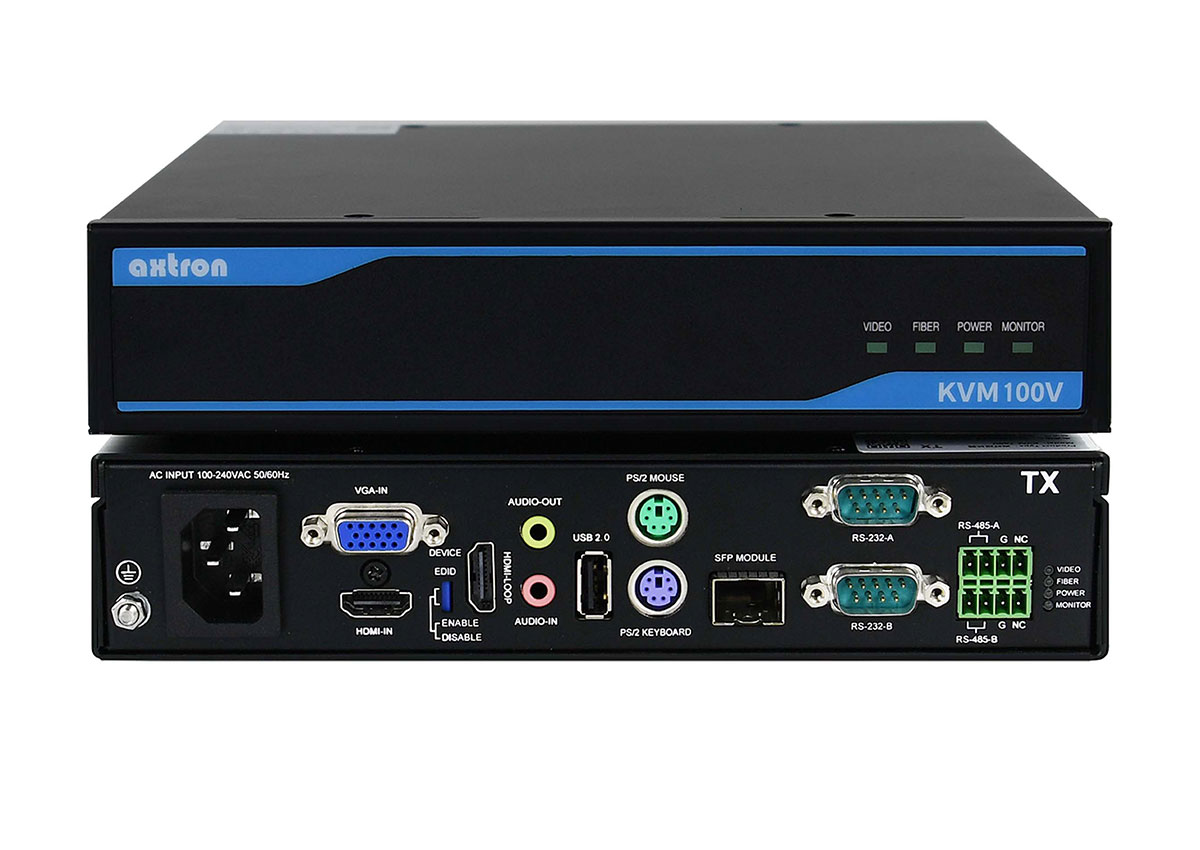

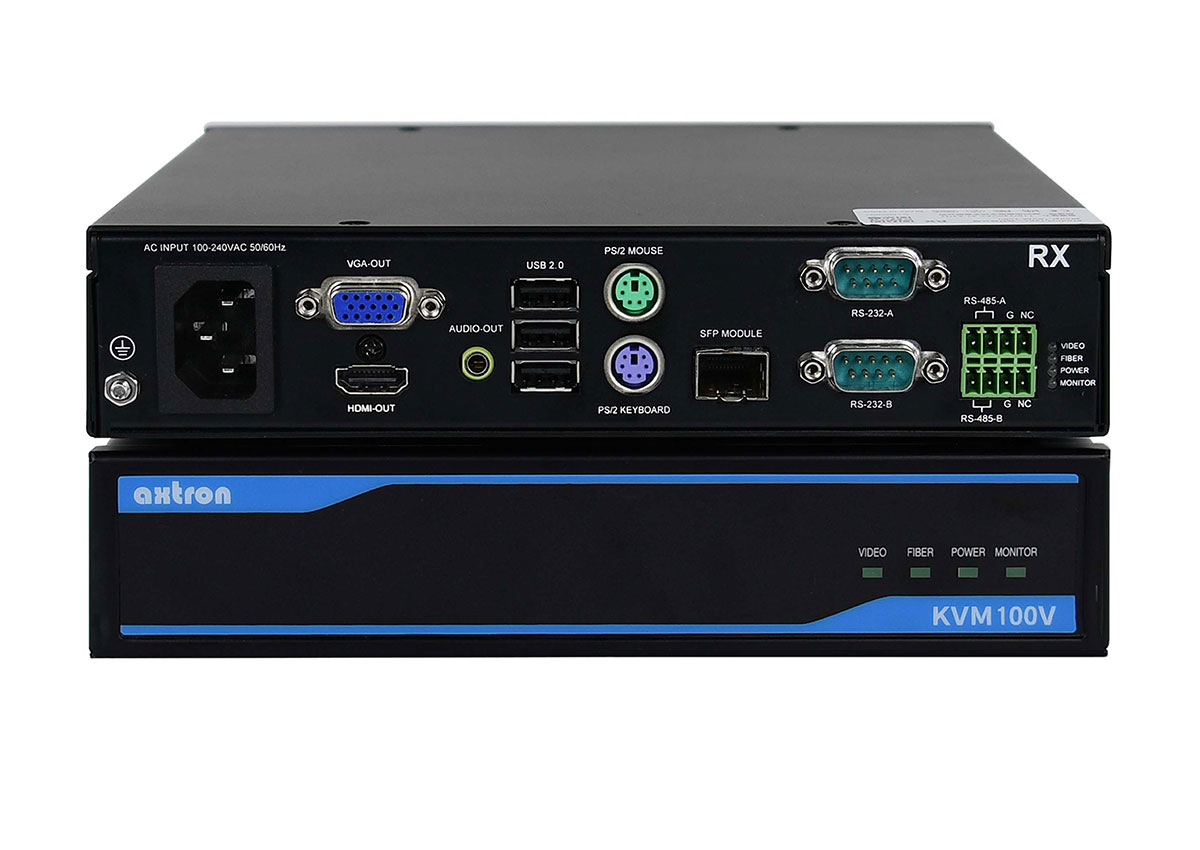

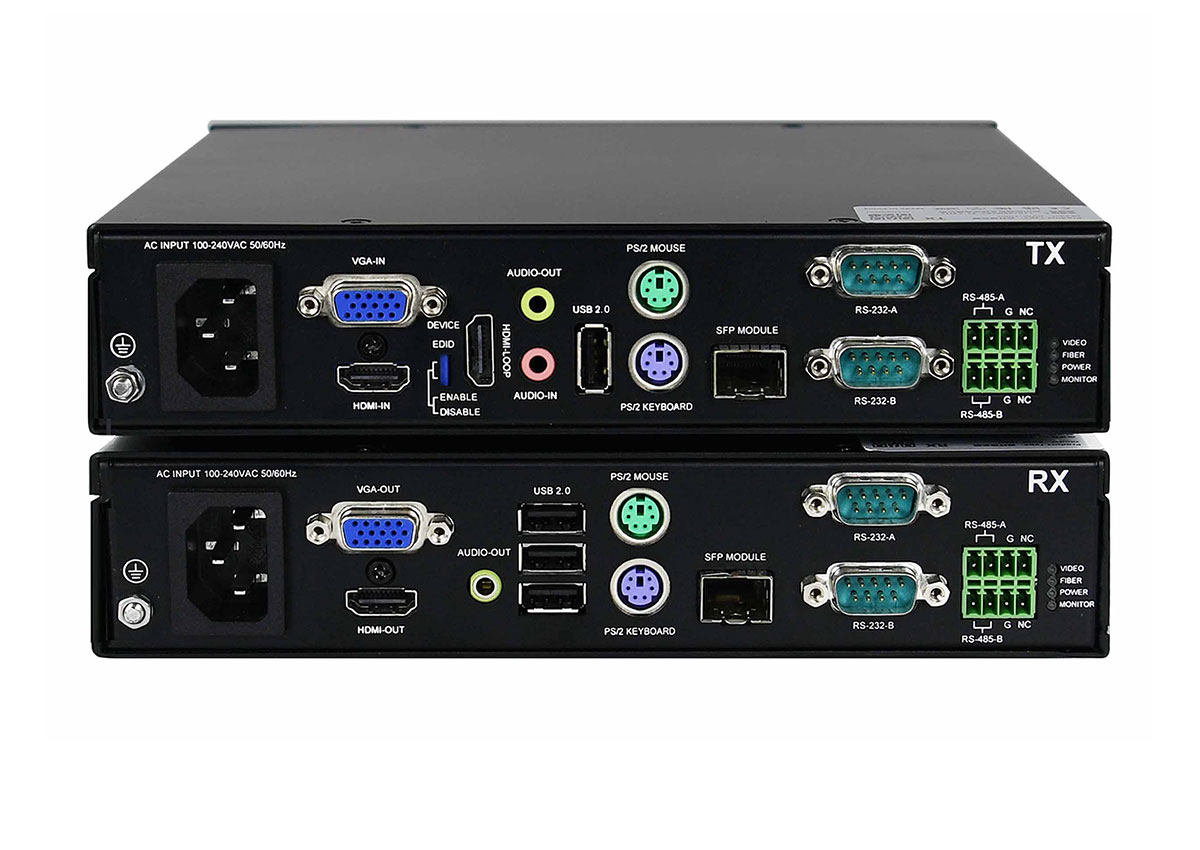

Transmitter (TX) Port Configuration					Receiver (RX) Port Configuration
Category	Description			Qty.	Category	Description	Qty.
HDMI Video Input	HDMI-A (male)			1	HDMI Video Output	HDMI-A (male)	1
VGA video input	DB 15 Socket (hole) female			1	VGA Video Output	DB 15 Socket (hole) female	1
HDMI Loop	HDMI-A provide one HDMI video loop output			1	USB Input	USB2.0-A Socket	3
USB Input	USB2.0-A Socket			1	Audio Loop	3.5mm Audio Socket	1
Audio Input	3.5mm Audio Socket			1	PS/2 Mouse	6P Mini-DIN F (Green) Socket	1
Audio Loop	3.5mm Audio Socket			1	PS/2 Keyboard	6P Mini-DIN F (purple) Socket	1
PS/2 Mouse	6P Mini-DIN F (Green) Socket			1	Fiber Interface	SFP Socket, Optional SC or LC (single and dual fiber) optical module	1
PS/2 Keyboard	6P Mini-DIN F (purple) Socket			1	RS-232	DB 9 Socket (pin) male	2
Fiber Interface	SFP Socket, Optional SC or LC (single and dual fiber) optical module			1	RS-485	3.5mm spacing Terminal Block	2
RS-232	DB 9 Socket (pin) male			2	/	/	/
RS-485	3.5mm spacing Terminal Block			2	/	/	/
Dimensions	43536044.4 mm（WDH）				Dimensions	21020644.4 mm（WDH）
Power Supply	C13 Socket, AC Input 100VAC-240V AC±20%，50/60Hz
Environmental Parameters
Operating Temperature	-25~60℃	Storage Temperature	-40~80℃		Vibration Shock	IEC 60068-2-6 1Grms
Humidity	5~95%@45℃ non-condensing	Altitude	≤5500m		MTBF	≥100000H
Product Certification	CE,FCC,KC,UL,PSE,UKCA,RoHS
