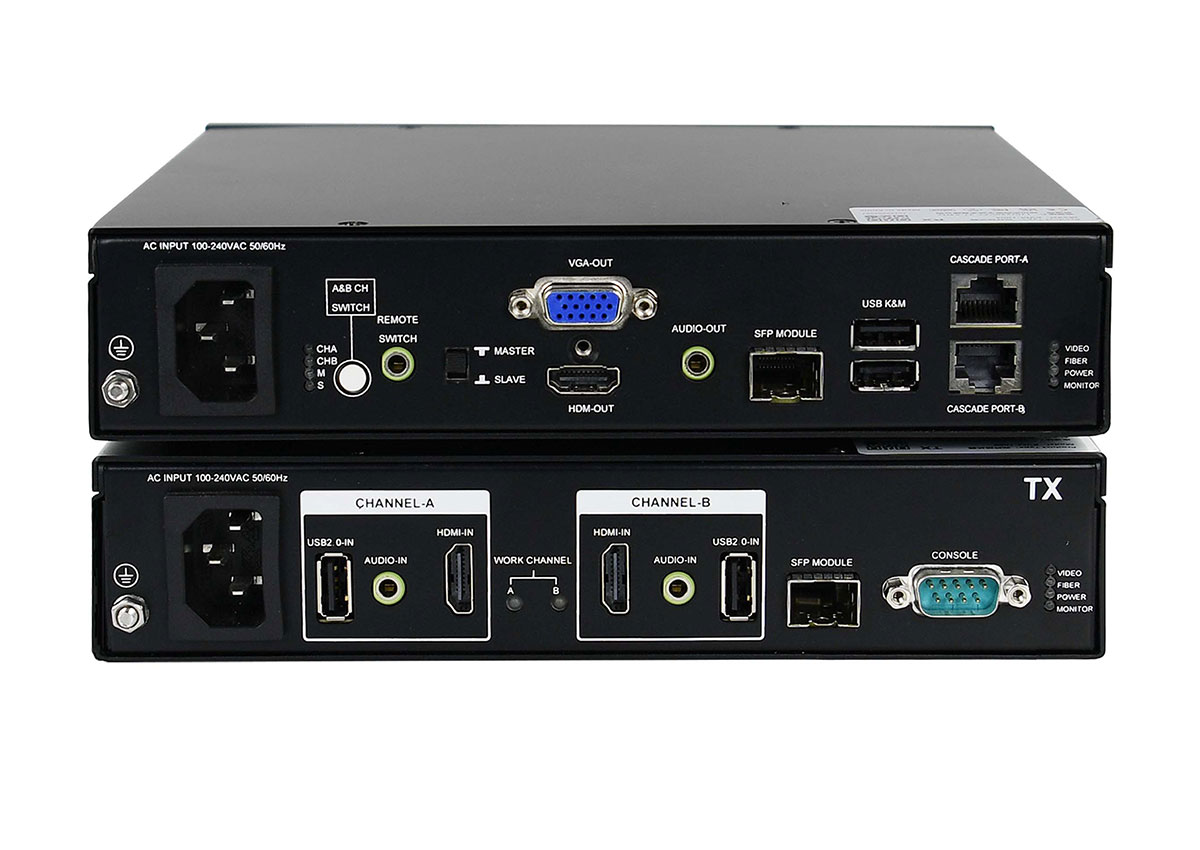

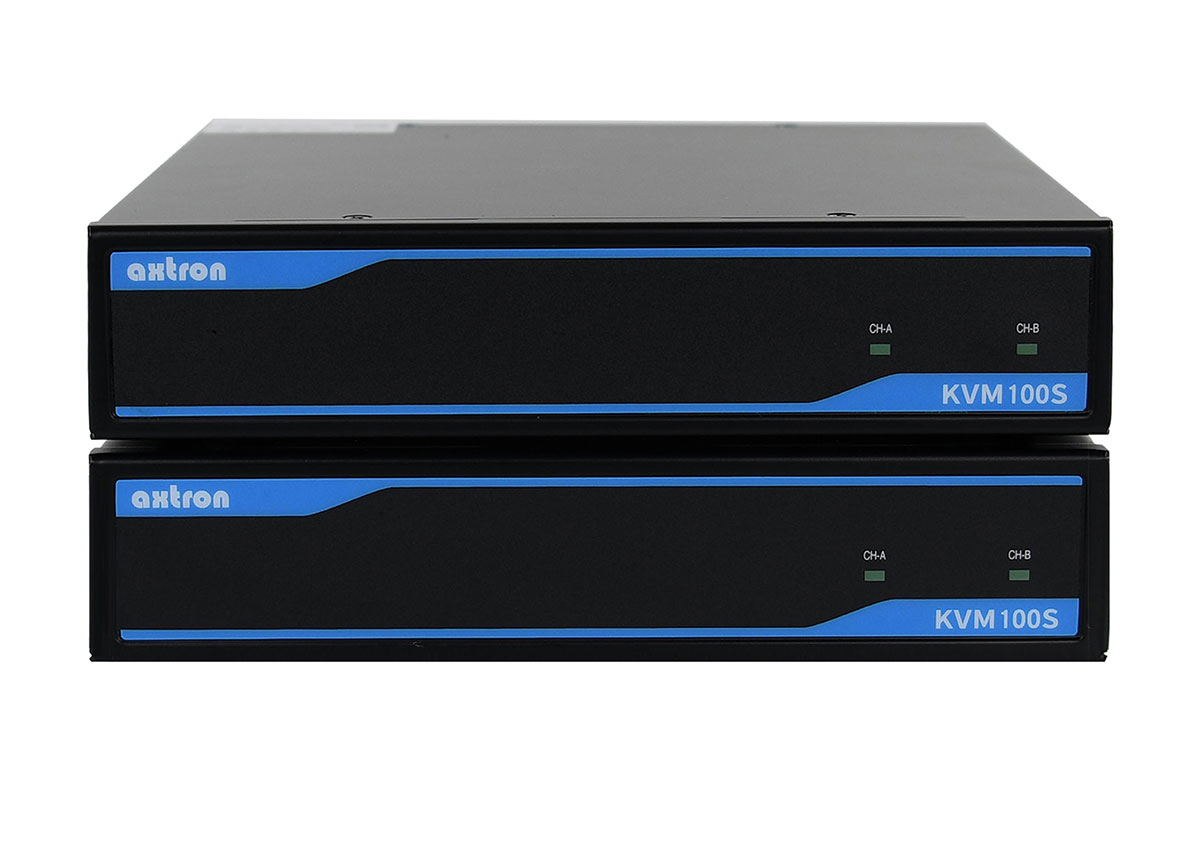

KVM100S is a KVM signal long line driver developed for industrial automation and rail transit industry applications. Its core uses high-speed FPGA chip for signal acquisition and coding, and then uses single-mode and multi-mode optical fiber as the carrier to transmit high-definition audio and video and control signals (including USB, 3.5 mm stereo audio, HDMI video, etc.) according to optical modules with different communication distances, remote transmission and control within the range of 500 meters to 80 kilometers can be realized. The minimum working unit of KVM100S consists of a transmitter (TX) and a receiver (RX). The transmitter and receiver are designed in a compact structure, which is convenient to be installed on the operation console or in a compact space.
|

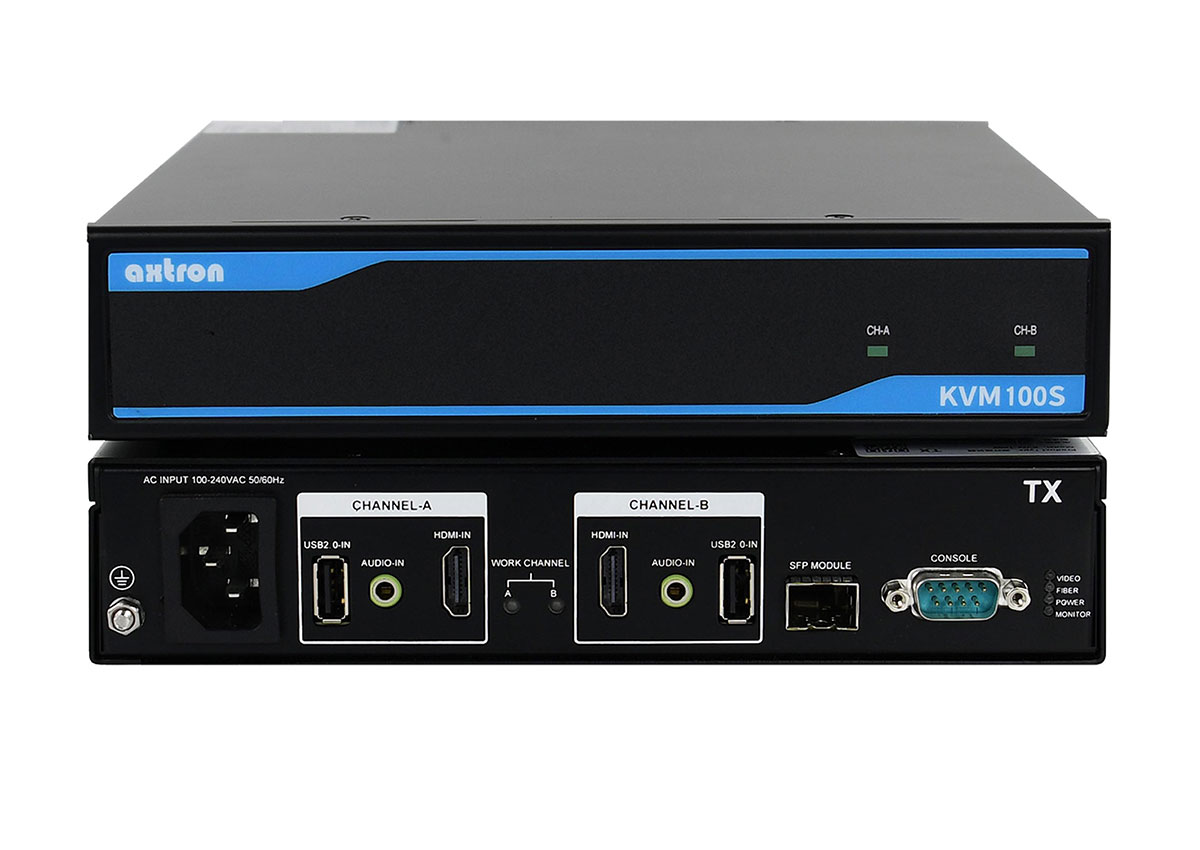

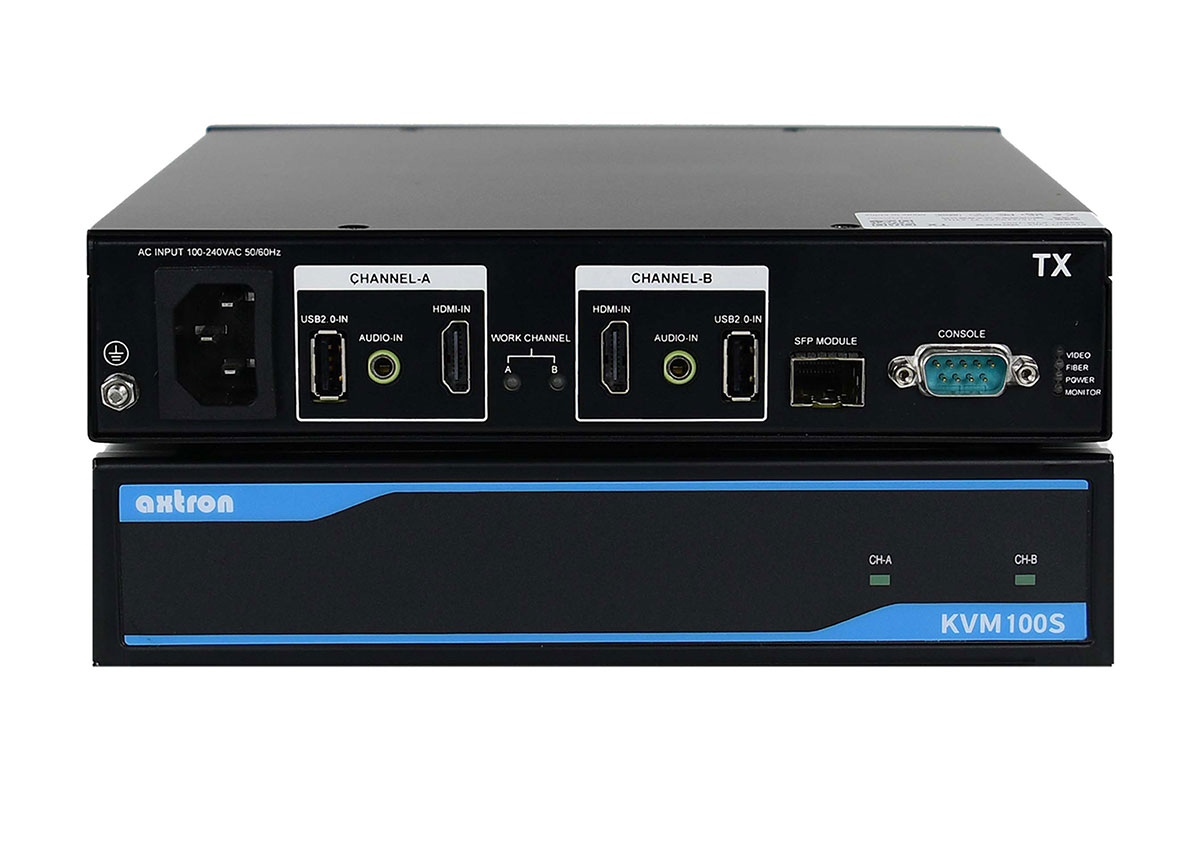

Transmitter (TX) Port Configuration |

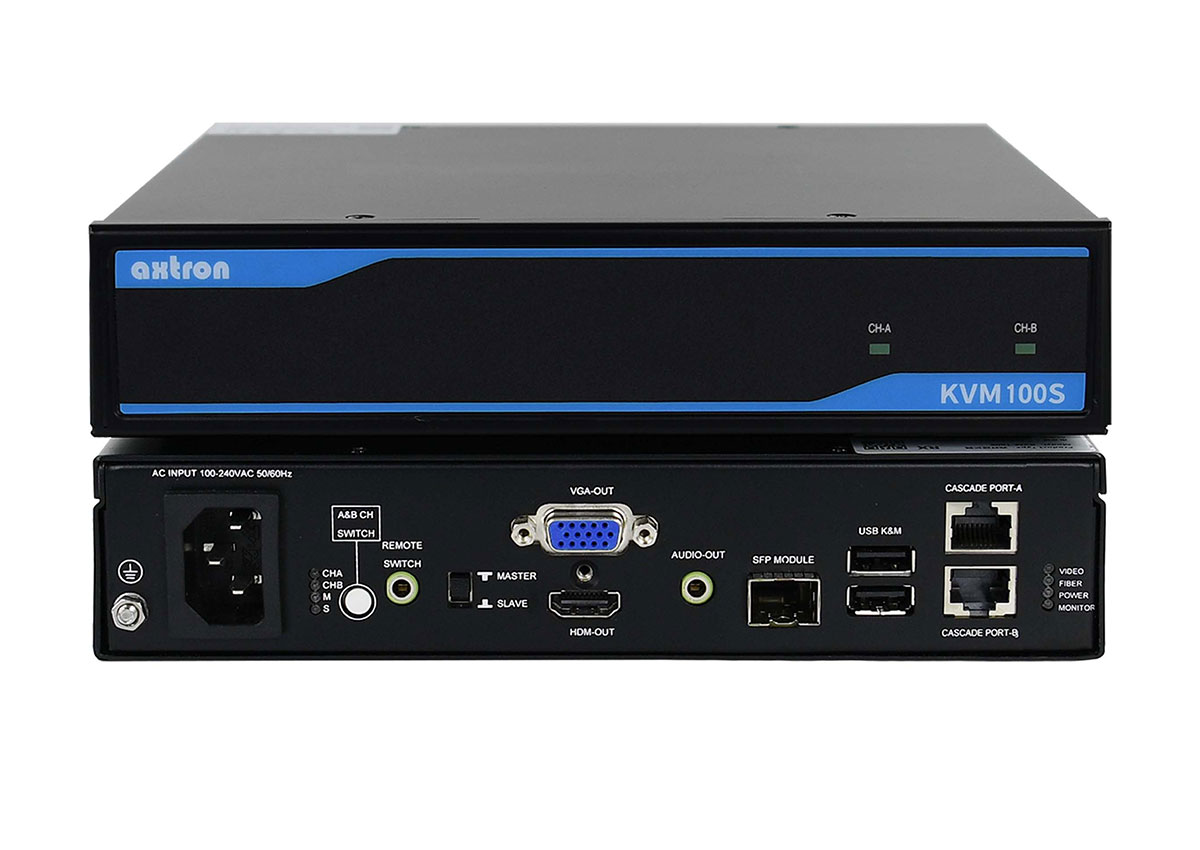

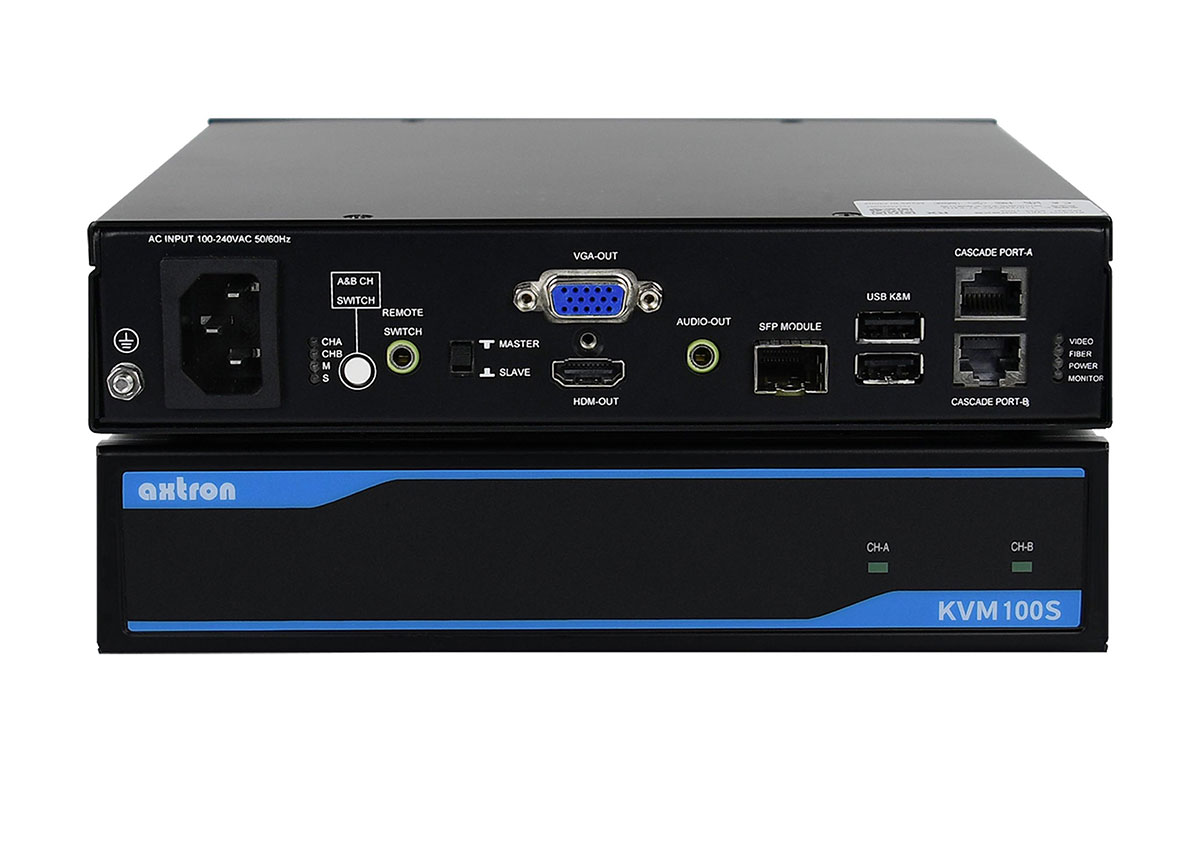

Receiver (RX) Port Configuration |
||||||
|
Category |
Description |
Qty. |
Category |
Description |
Qty. |
||
|
HDMI Video Input |
HDMI-A physical resolution 1920*1080 |
2 |
HDMI Video Output |
HDMI-A physical resolution 1920*1080 |
1 |
||
|
USB Input |
USB2.0-A Socket |
2 |
VGA Video Output |
DB 15 Socket (hole) female |
1 |
||
|
Audio Input |
3.5mm Audio Socket |
2 |
USB Input |
USB2.0-A Socket |
2 |
||
|
Fiber Interface |
SFP Socket, Optional SC or LC (single and dual fiber) optical module |
1 |
Audio Loop |
3.5mm Audio Socket |
1 |
||
|
Console Port |
DB 9 Socket (pin), Equipment condition monitoring (optional function) |
1 |
Fiber Interface |
SFP Socket, Optional SC or LC (single and dual fiber) optical module |
1 |
||
|
/ |
/ |
/ |
Cascade syn. switch port |
RJ45 |
2 |
||
|
/ |
/ |
/ |
Channel Switch |
Manual micro-touch button switch |
1 |
||
|
/ |
/ |
/ |
Remote Switch |
3.5mm Socket |
1 |
||
|
Dimensions |
210*206*44.4 mm（W*D*H） |
Dimensions |
210*206*44.4 mm（W*D*H） |
||||
|
Power Supply |
C13 Socket, AC Input 100VAC-240V AC±20%，50/60Hz |
||||||
|
Environmental Parameters |
|||||||
|
Operating Temperature |
-25~60℃ |
Storage Temperature |
-40~80℃ |
Vibration Shock |
IEC 60068-2-6 1Grms |
||
|
Humidity |
5~95%@45℃ non-condensing |
Altitude |
≤5500m |
MTBF |
≥100000H |
||
|
Product Certification |
CE,FCC,KC,UL,PSE,UKCA,RoHS |
||||||
