KVM100H

Item no.KVM100H

HDMI video signal input, output
Excellent EMC electromagnetic compatibility performance
Max. physical resolution 1920*1080
Meet the use in the high altitude environment of 5500m
USB-HID protocol pass-through without third party driver

KVM100H DownLoad

Send Email Get Price

Product Overview Product Features Parameter Related Product Contact us

Product Overview

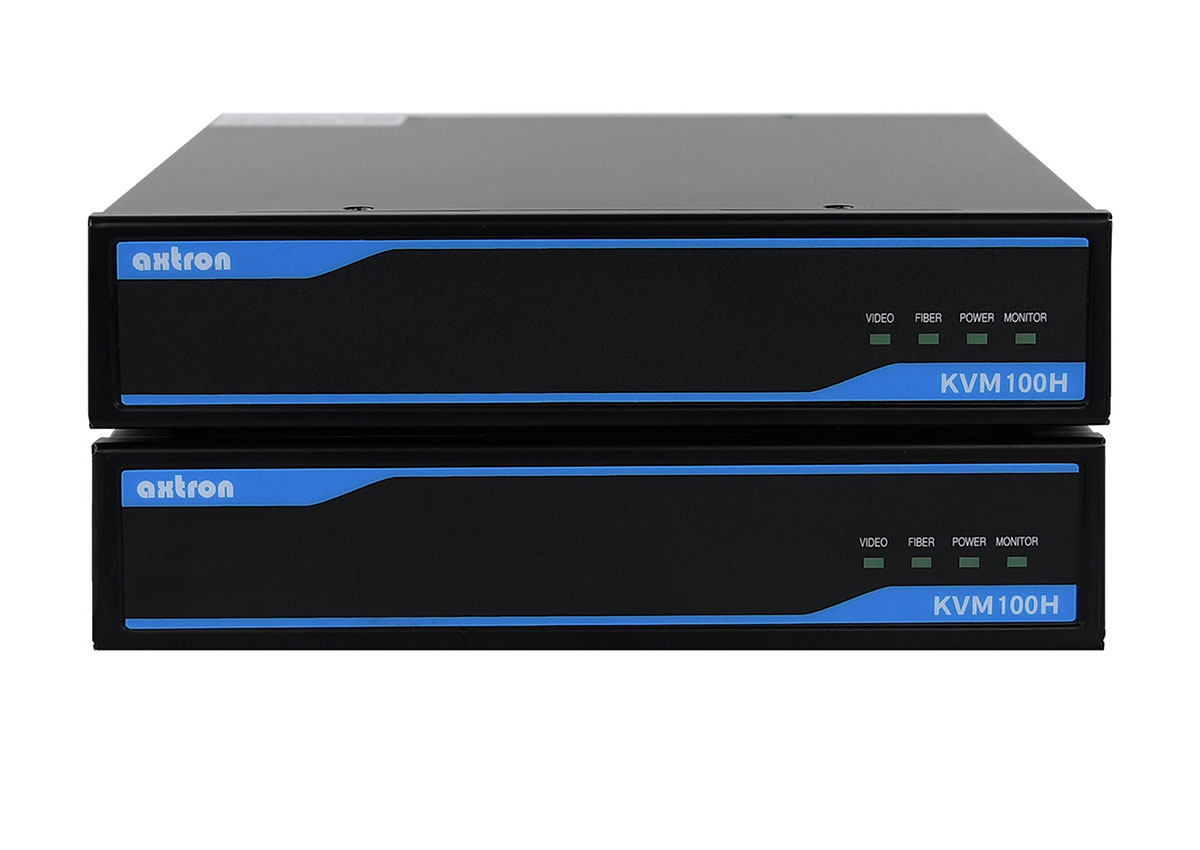

KVM100H is a KVM signal long line driver developed for industrial automation and rail transit industry applications. Its core uses high-speed FPGA chip for signal acquisition and coding, and then uses single-mode and multi-mode optical fiber as the carrier to transmit high-definition audio and video and control signals (including USB, 3.5 mm stereo audio, HDMI video, etc.) according to the optical modules with different communication distances, remote transmission and control within the range of 500 meters to 80 km can be realized. The minimum working unit of KVM100H is composed of a transmitter (TX) and a receiver (RX). The transmitter and receiver are designed with a compact structure, which is convenient to be installed on the operation console or in a compact space.

Product Features

HDMI video signal input, output
Excellent EMC electromagnetic compatibility performance
Max. physical resolution 1920*1080
Meet the use in the high altitude environment of 5500m
USB-HID protocol pass-through without third party driver

Parameter

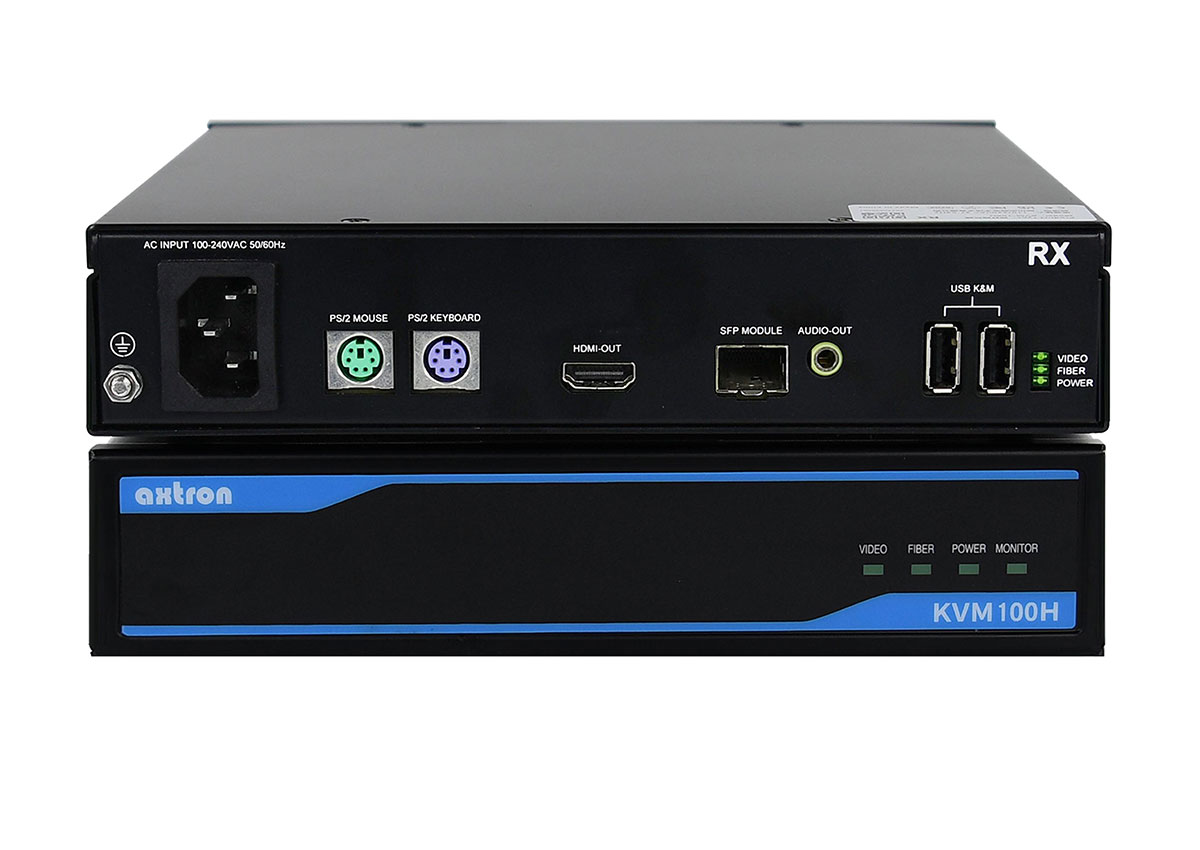

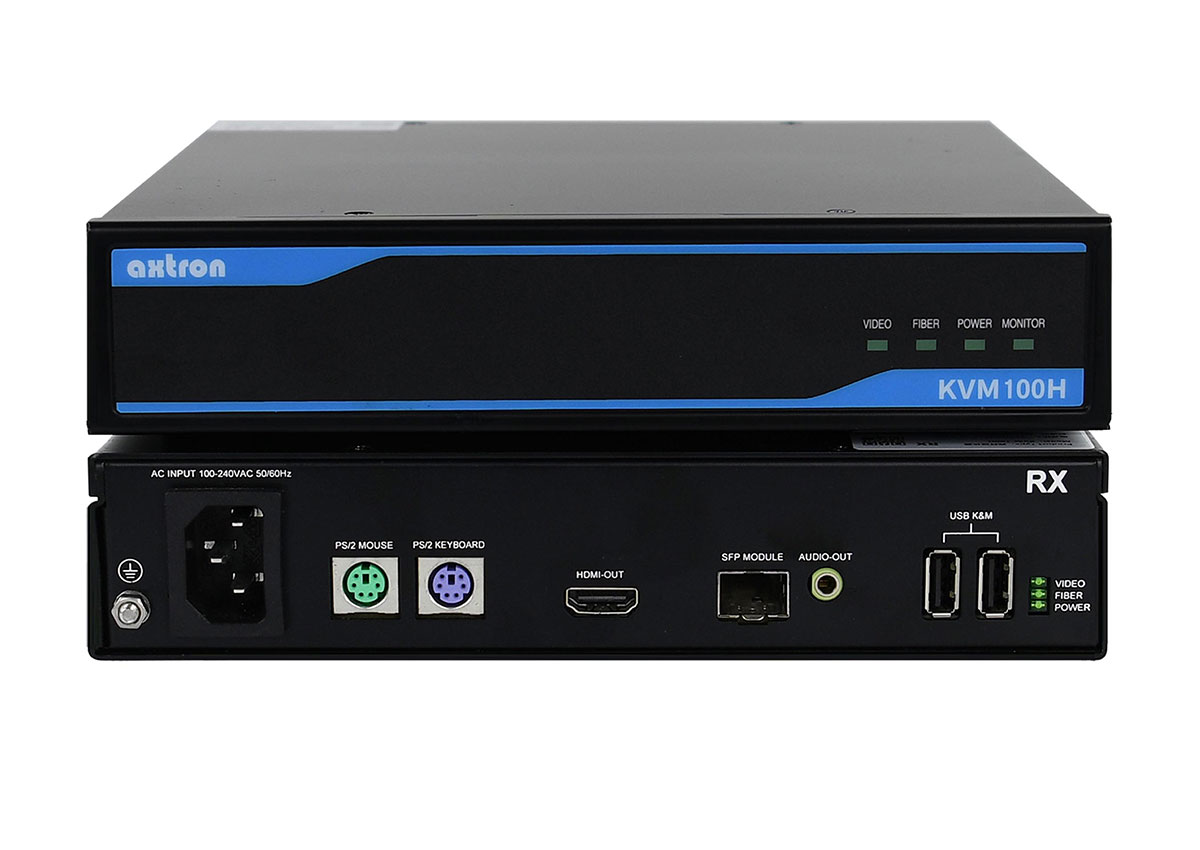

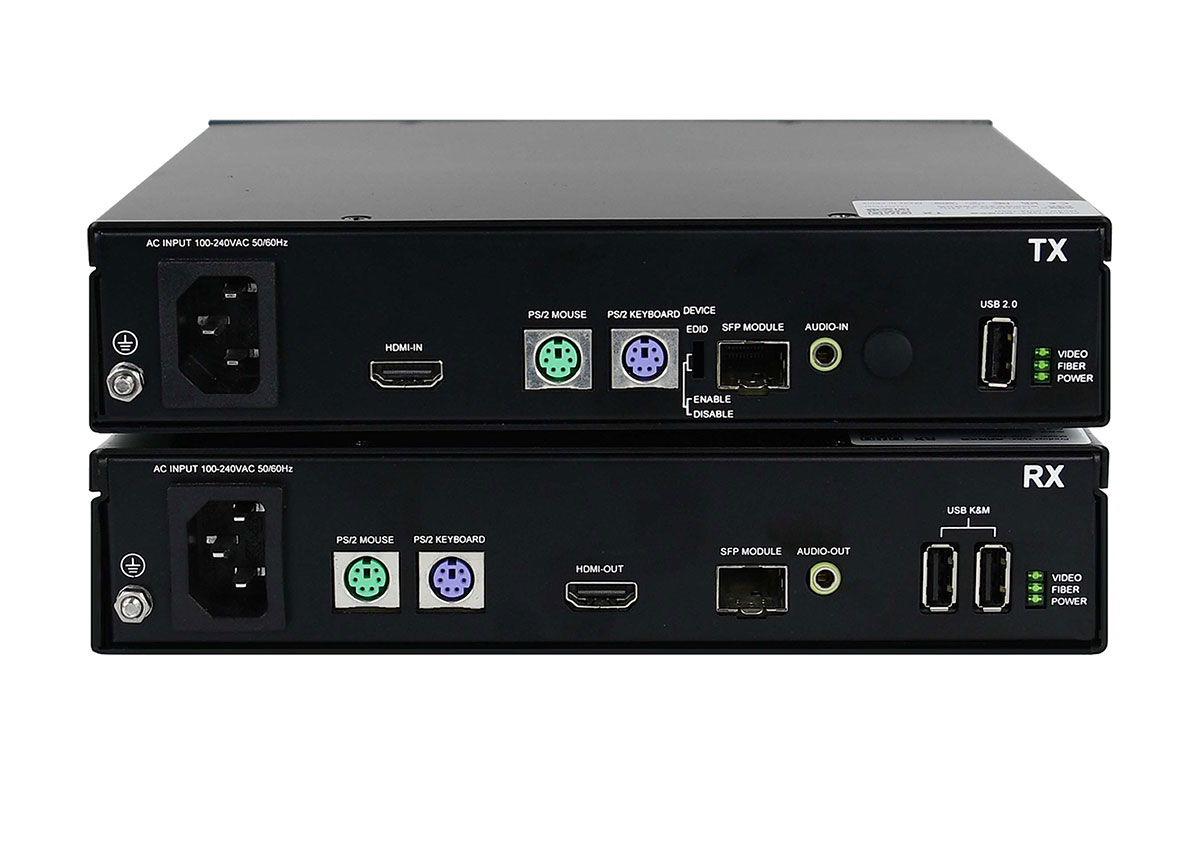

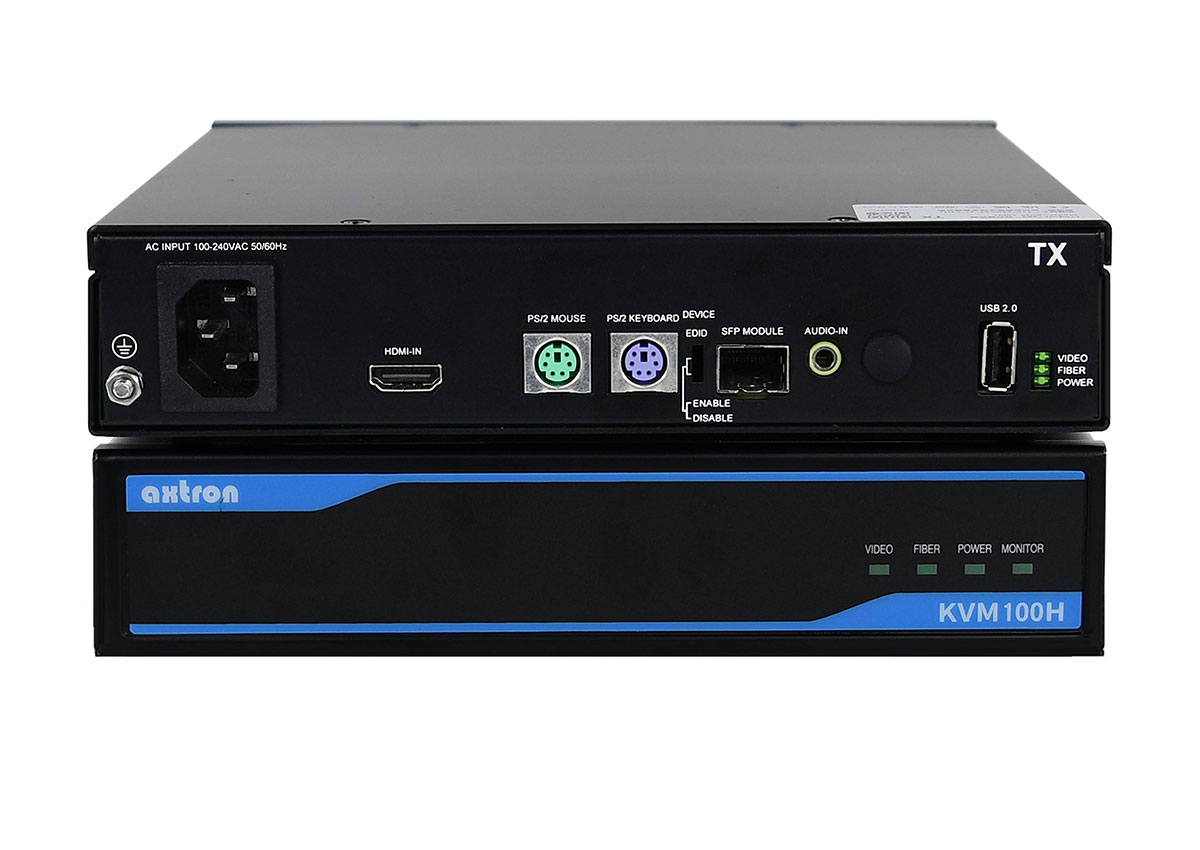

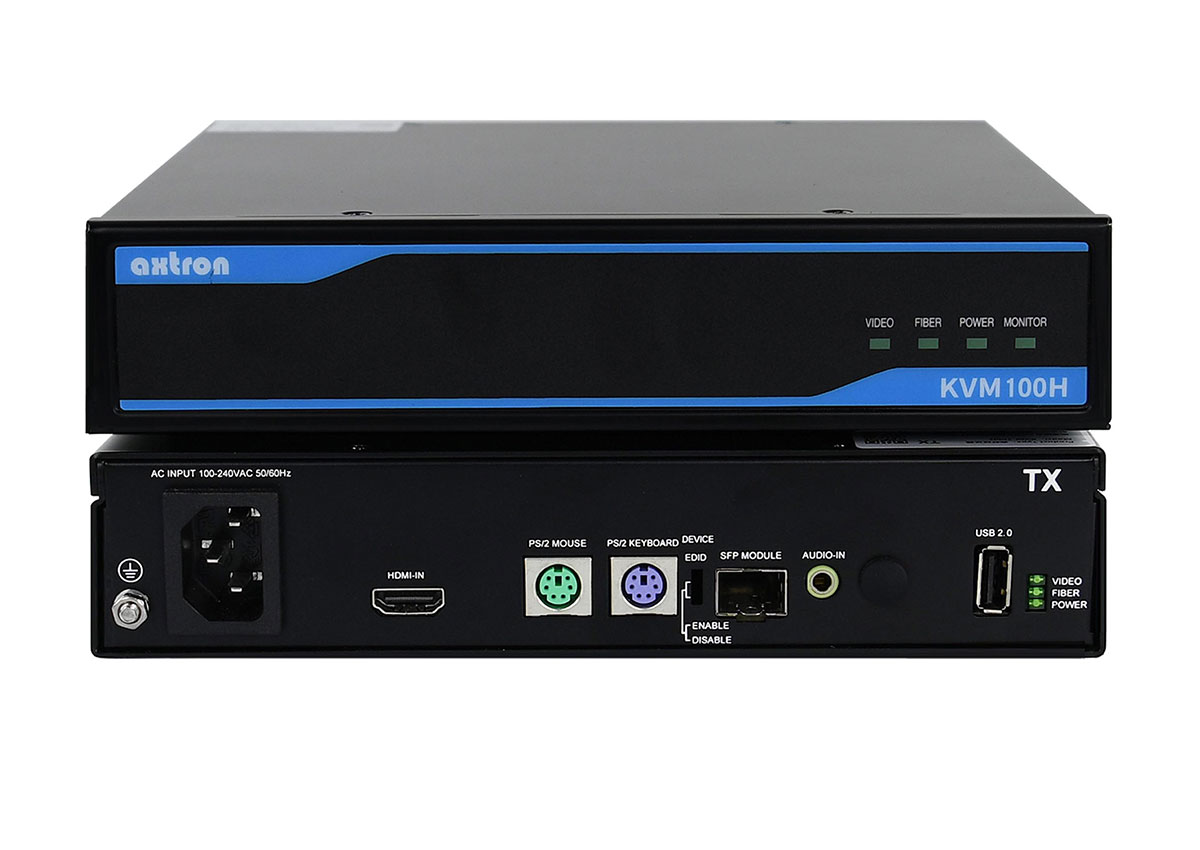

Transmitter (TX) Port Configuration					Receiver (RX) Port Configuration
Category	Description			Qty.	Category	Description	Qty.
HDMI Video Input	HDMI-A (male)			1	HDMI Video Output	HDMI-A (male)	1
USB Input	USB2.0-A Socket			1	USB Output	USB2.0-A Socket	2
Audio Input	3.5mm Audio Socket			1	Audio Output	3.5mm Audio Socket	1
Fiber Interface	SFP Socket, Optional SC or LC (single and dual fiber) optical module			1	Fiber Interface	SFP Socket, Optional SC or LC (single and dual fiber) optical module	1
PS/2 Mouse	6P Mini-DIN F (Green) Socket			1	PS/2 Mouse	6P Mini-DIN F (Green) Socket	1
PS/2 Keyboard	6P Mini-DIN F (Purple) Socket			1	PS/2 Keyboard	6P Mini-DIN F (Purple) Socket	1
Dimensions	21620644.4 mm（WDH）				Dimensions 21020644.4 mm（WDH）
Power Supply C13 Socket, AC Input 100VAC-240V AC±20%, 50/60Hz
Environmental Parameters
Operating Temperature	-25~60℃	Storage Temperature	-40~80℃		Vibration Shock	IEC 60068-2-6 1Grms
Humidity	5~95%@45℃ non-condensing	Altitude	≤5500m		MTBF	≥100000H
Product Certification	CE,FCC,KC,UL,PSE,UKCA,RoHS
