KVM100F

Item no.KVM100F

HDMI+DVI video signal input
USB-HID protocol pass-through without third-party driver
Receiver dual copy display output (HDMI+DVI)
Excellent EMC electromagnetic compatibility performance
Max. physical resolution 1920 * 1200
Meet the use in the high altitude environment of 5500m

KVM100F DownLoad

Send Email Get Price

Product Overview Product Features Parameter Related Product Contact us

Product Overview

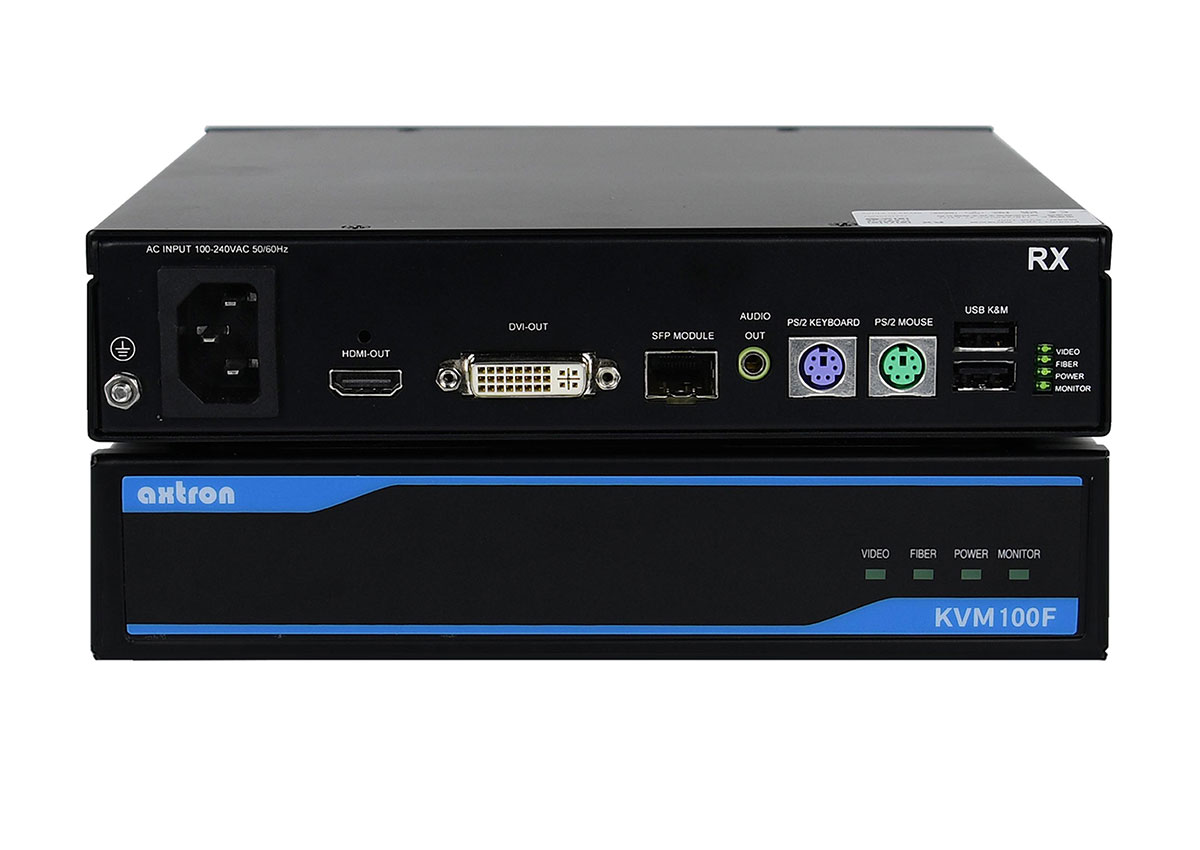

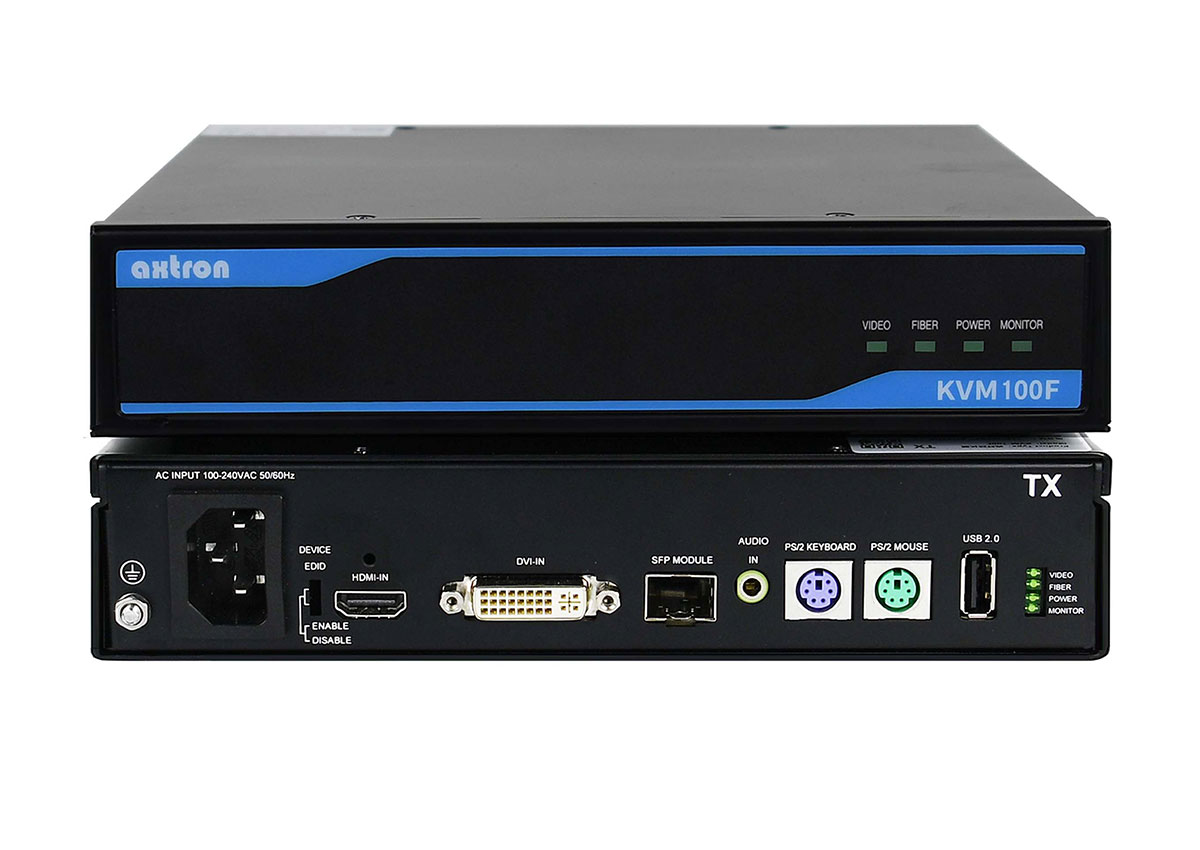

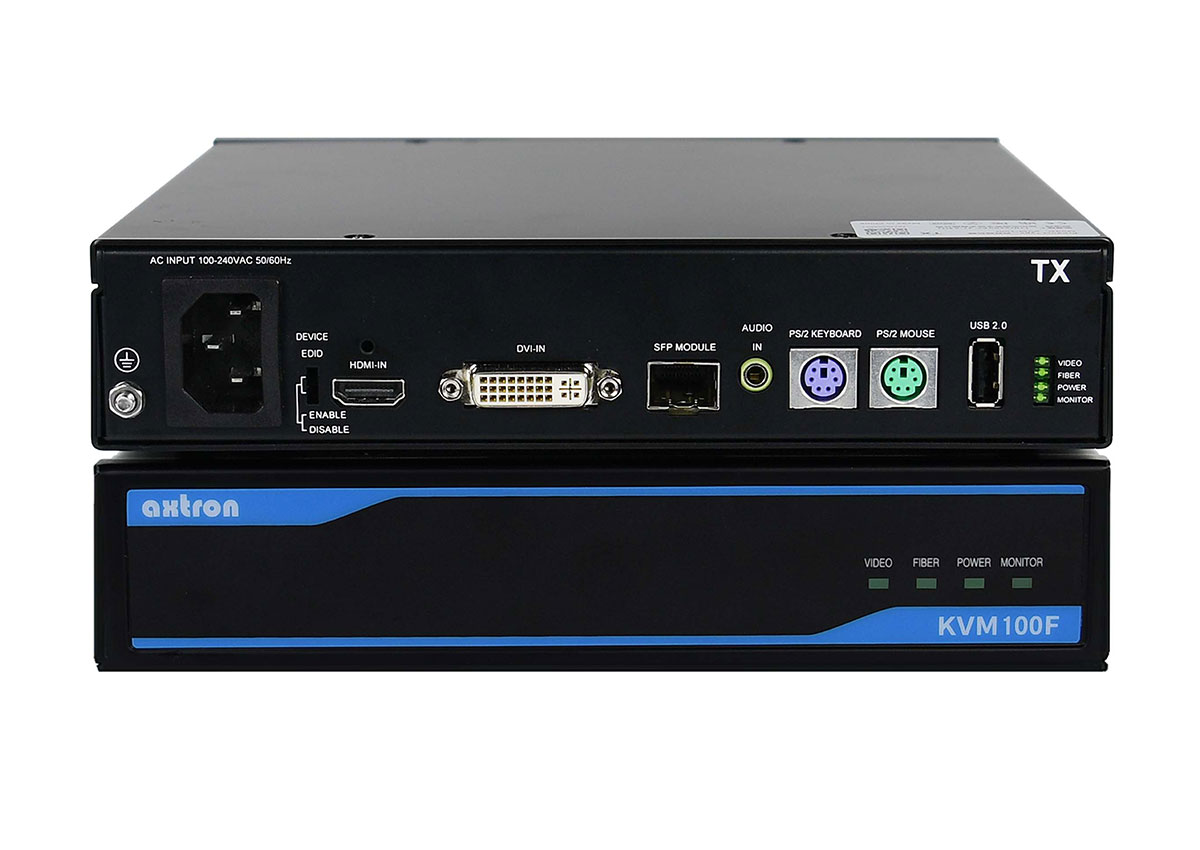

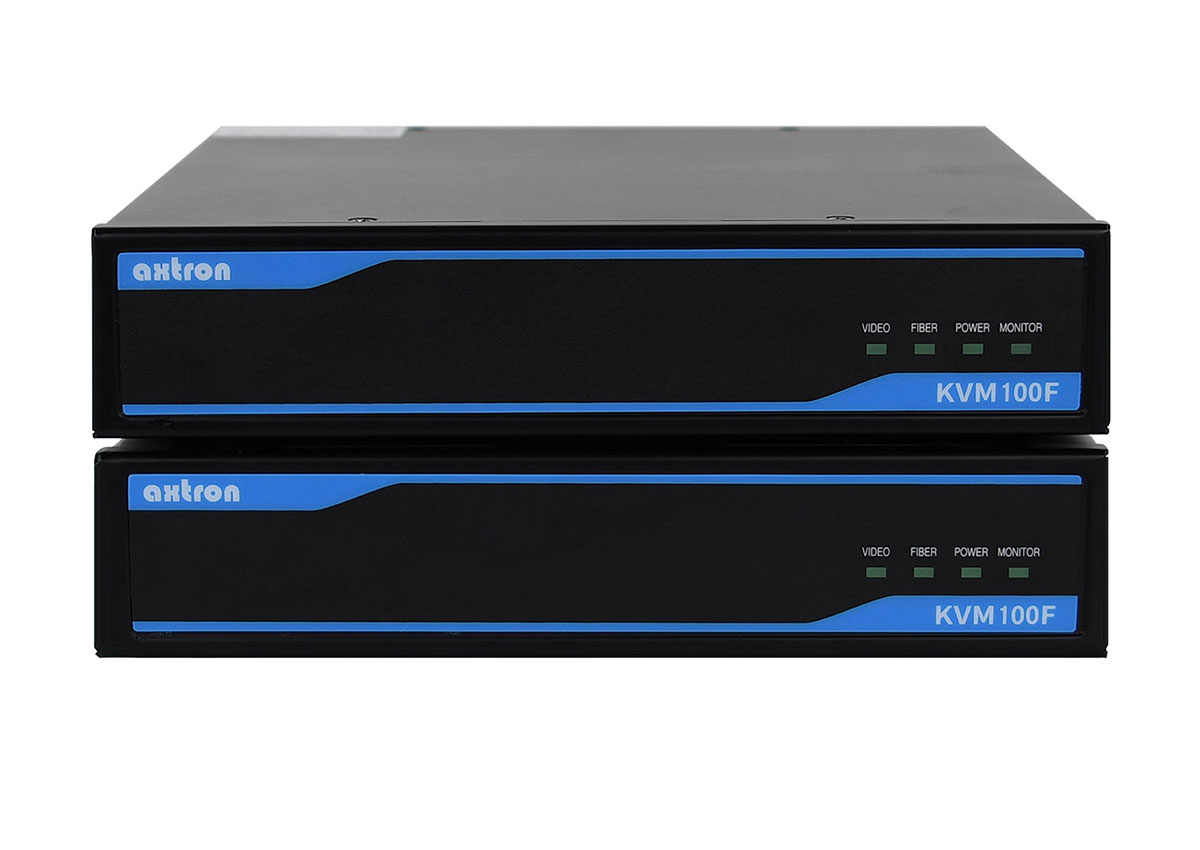

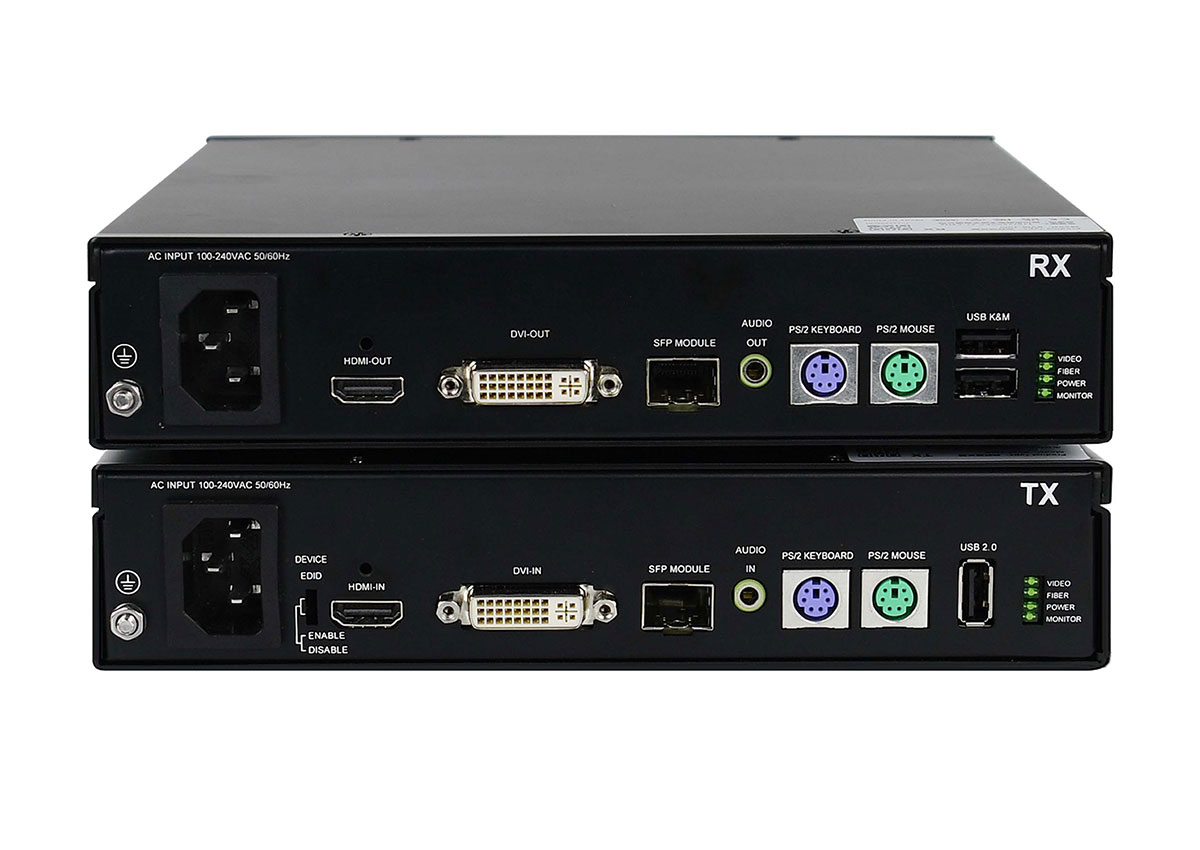

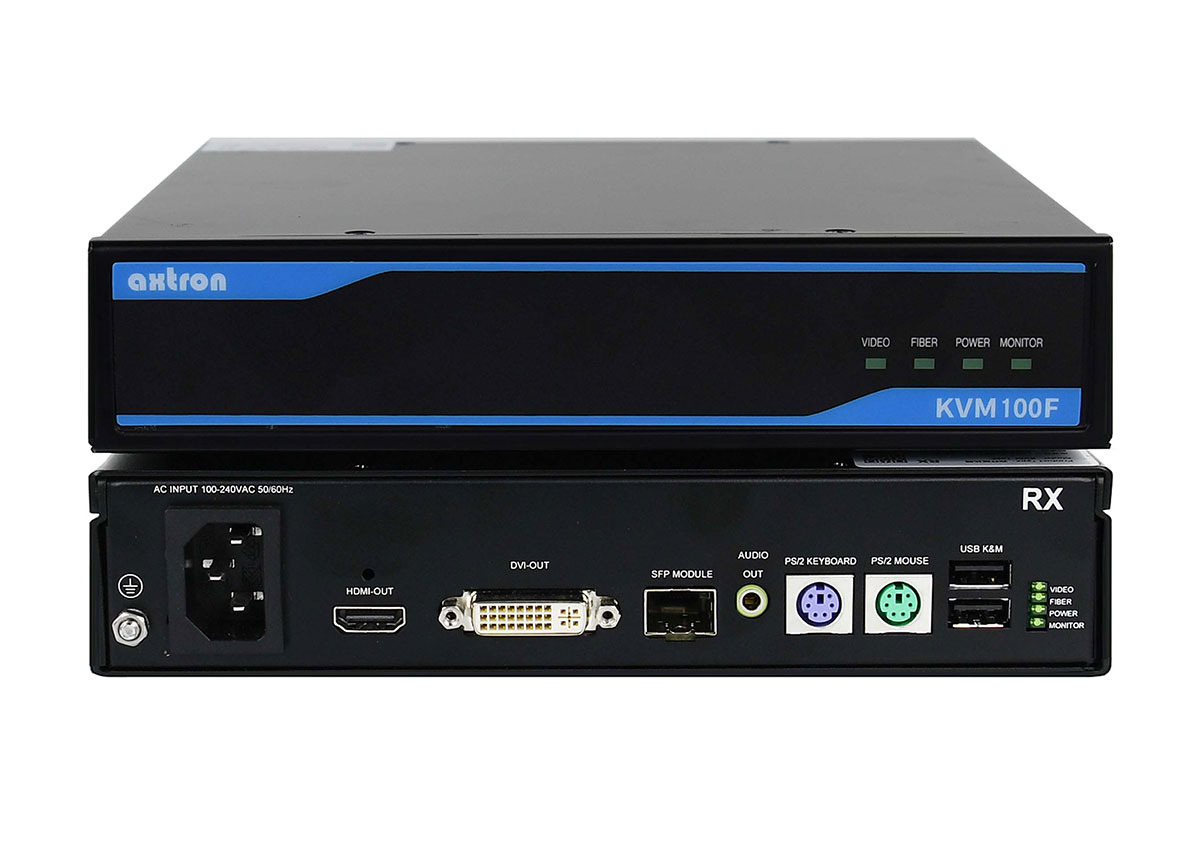

KVM100F is a desktop KVM signal long line driver developed for industrial automation and rail transit industry applications. Its core uses high-speed FPGA chip for signal acquisition and coding, and then uses single-mode and multi-mode optical fiber as the carrier to transmit high-definition audio and video and control signals (including USB, PS/2 keyboard and mouse, 3.5 mm stereo audio, DVI video, HDMI video, etc.) According to optical modules with different communication distances, remote transmission and control within the range of 500 meters to 80 km can be realized. The minimum working unit of KVM100F consists of a transmitter (TX) and a receiver (RX). The transmitter and receiver are designed with a compact structure, which is convenient to be installed on the operation console or in a compact space.

Product Features

HDMI+DVI video signal input
USB-HID protocol pass-through without third-party driver
Receiver dual copy display output (HDMI+DVI)
Excellent EMC electromagnetic compatibility performance
Max. physical resolution 1920 * 1200
Meet the use in the high altitude environment of 5500m

Parameter

Transmitter (TX) Port Configuration					Receiver (RX) Port Configuration
Category	Description			Qty.	Category	Description	Qty.
HDMI Video Input	HDMI-A physical resolution 1920 * 1200 (WUXGA)			1	HDMI Video Output	HDMI-A physical resolution 1920 * 1200 (WUXGA)	1
DVI Video Input	DVI-D physical resolution 1920 * 1200 (WUXGA)			1	DVI Video Output	DVI-D physical resolution 1920 * 1200 (WUXGA)	1
USB Input	USB2.0-A Socket			1	USB Output	USB2.0-A Socket	2
Audio Input	3.5mm Audio Socket			1	Audio Output	3.5mm Audio Socket	1
Fiber Interface	SFP Socket, Optional SC or LC (single and dual fiber) optical module			1	Fiber Interface	SFP Socket, Optional SC or LC (single and dual fiber) optical module	1
PS/2 Mouse	6P Mini-DIN F (Green) Socket			1	PS/2 Mouse	6P Mini-DIN F (Green) Socket	1
PS/2 Keyboard	6P Mini-DIN F (Purple) Socket			1	PS/2 Keyboard	6P Mini-DIN F (Purple) Socket	1
Dimensions	21020644.4 mm (WDH)				Dimensions	21020644.4 mm (WDH)
Power Supply	C13 Socket, AC Input 100VAC-240V AC±20%, 50/60Hz
Environmental Parameters
Operating Temperature	-25~60℃	Storage Temperature	-40~80℃		Vibration Shock	IEC 60068-2-6 1Grms
Humidity	5~95%@45℃ non-condensing	Altitude	≤5500m		MTBF	≥100000H
Product Certification	CE,FCC,KC,UL,PSE,UKCA,RoHS
