KVM100D

Item no.KVM100D

DVI digital video signal input and output
Excellent EMC electromagnetic compatibility performance
Max. physical resolution 1920 * 1200
Meet the use in the high altitude environment of 5500m
Supports USB-HID devices without third-party driver
Support PS/2 keyboard and mouse

KVM100D DownLoad

Send Email Get Price

Product Overview Product Features Parameter Related Product Contact us

Product Overview

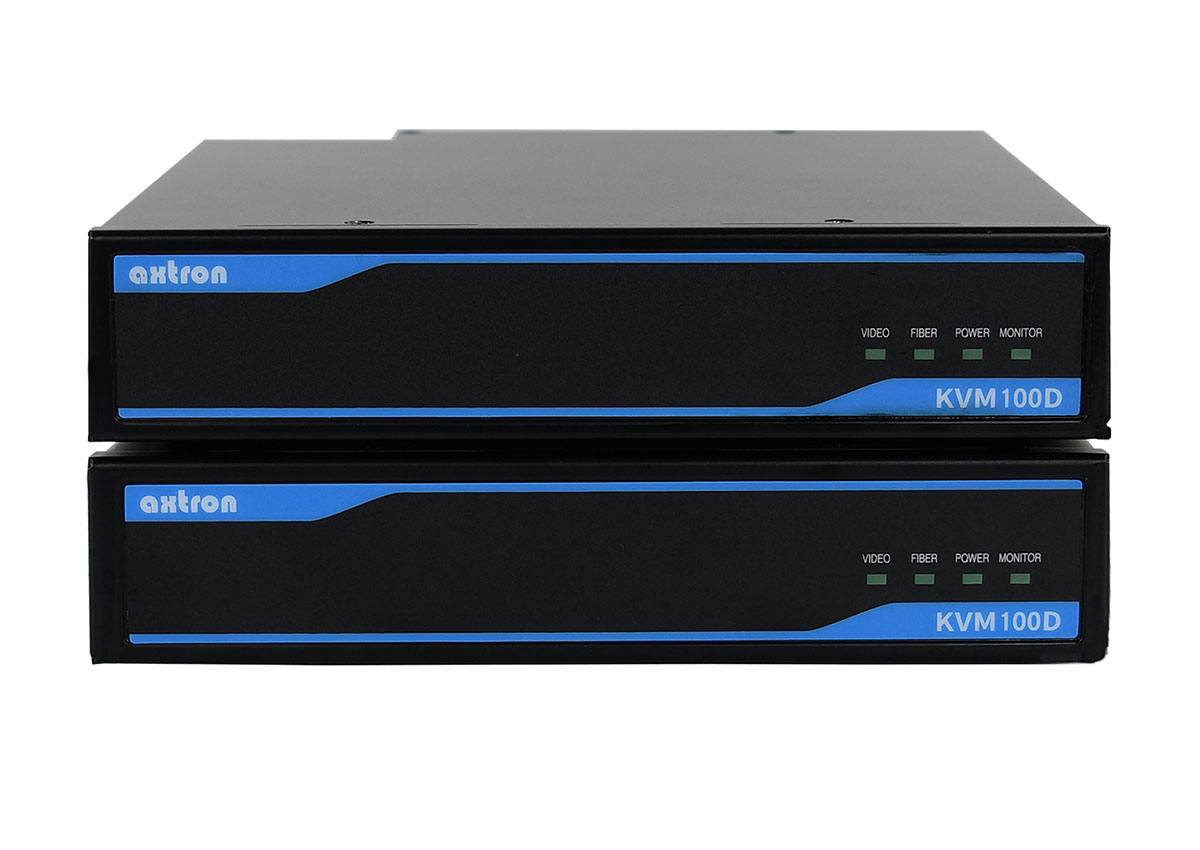

KVM100D is a KVM desktop signal long line driver developed for industrial automation & rail transit industry applications. Its core uses high-speed FPGA chip for signal acquisition and coding, and then uses single-mode and multi-mode optical fiber as the carrier to transmit high-definition audio and video and control signals (including USB, PS/2 keyboard and mouse, 3.5 mm stereo audio, DVI video, etc.) according to the optical modules with different communication distances, remote transmission and control within the range of 500 m to 80 km can be realized. The minimum working unit of KVM100D is composed of transmitter (TX) and receiver (RX). The transmitter adopts modular design and can be installed in a 19-inch standard cabinet together with the controlled target computer, which is convenient for the construction and maintenance of the machine room. The receiver is designed with a compact structure, which is easy to install on the remote console or in a compact space.

Product Features

DVI digital video signal input and output
Excellent EMC electromagnetic compatibility performance
Max. physical resolution 1920 * 1200
Meet the use in the high altitude environment of 5500m
Supports USB-HID devices without third-party driver
Support PS/2 keyboard and mouse

Parameter

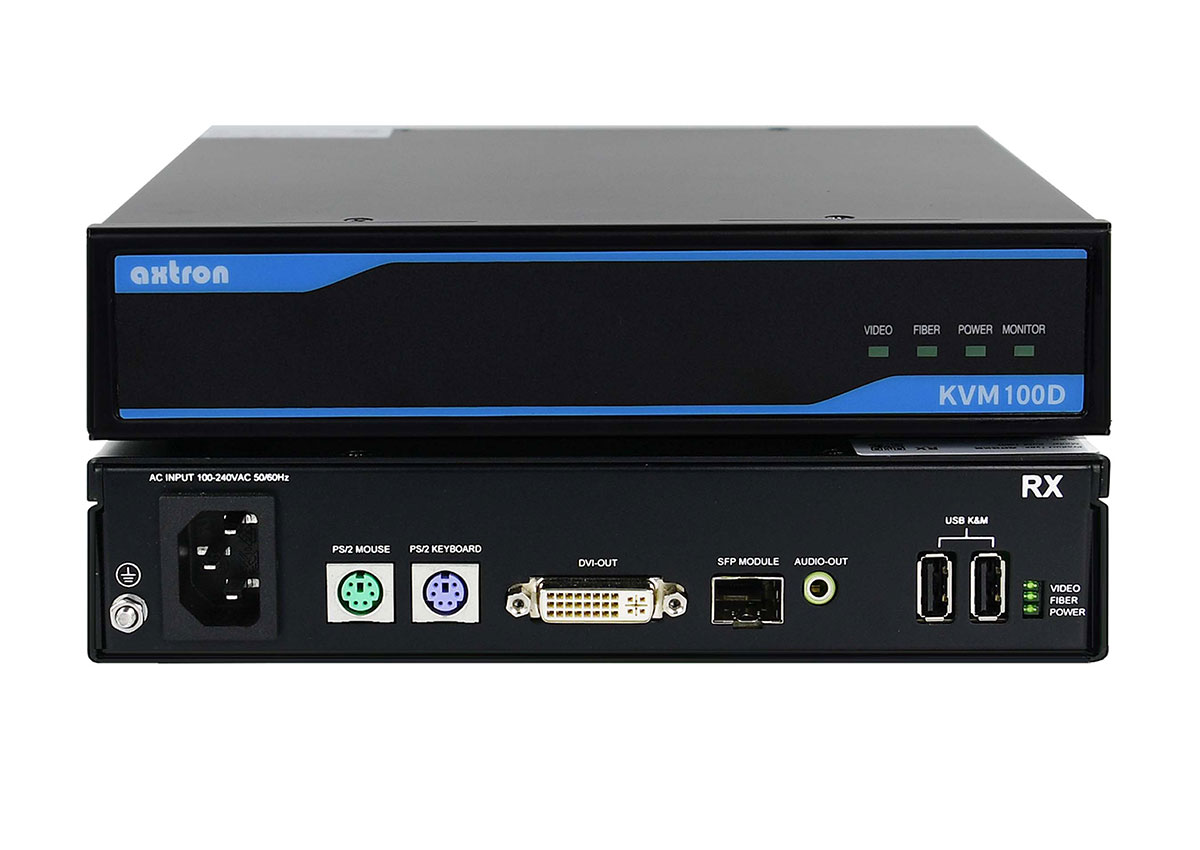

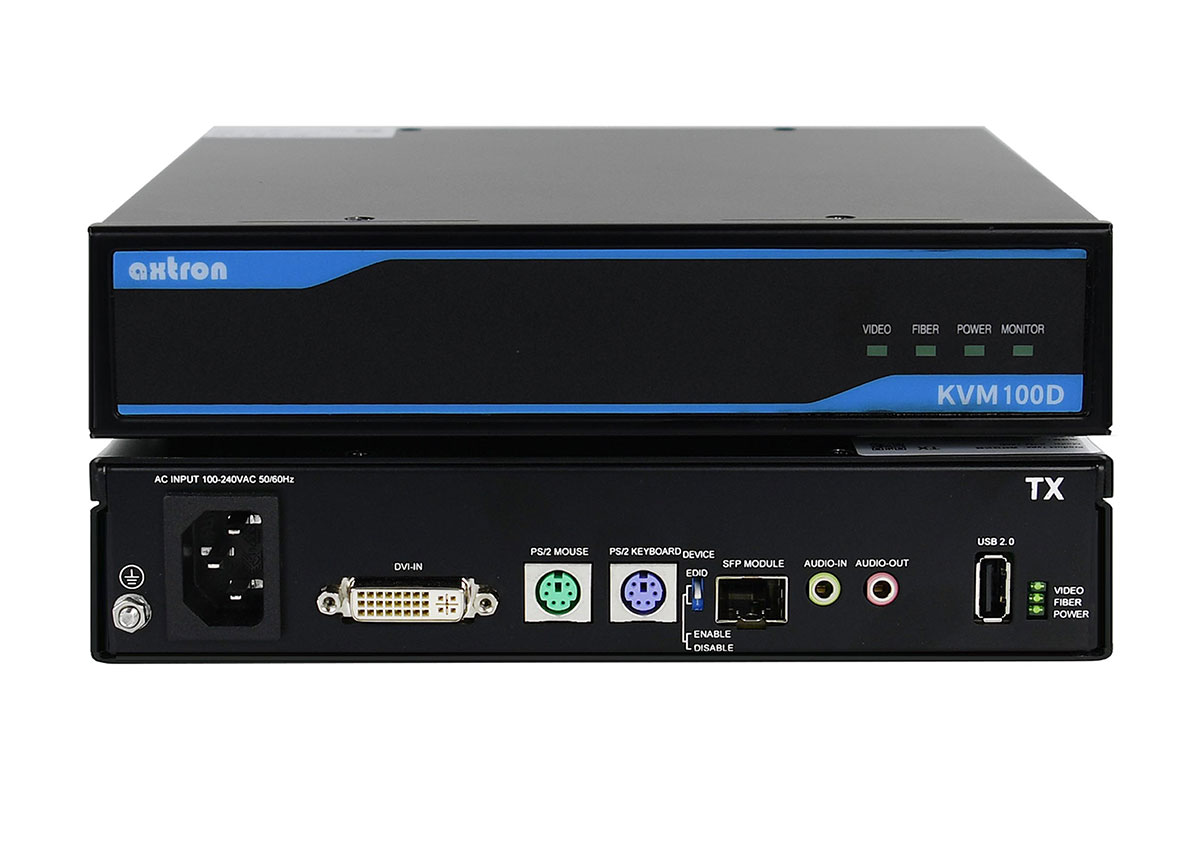

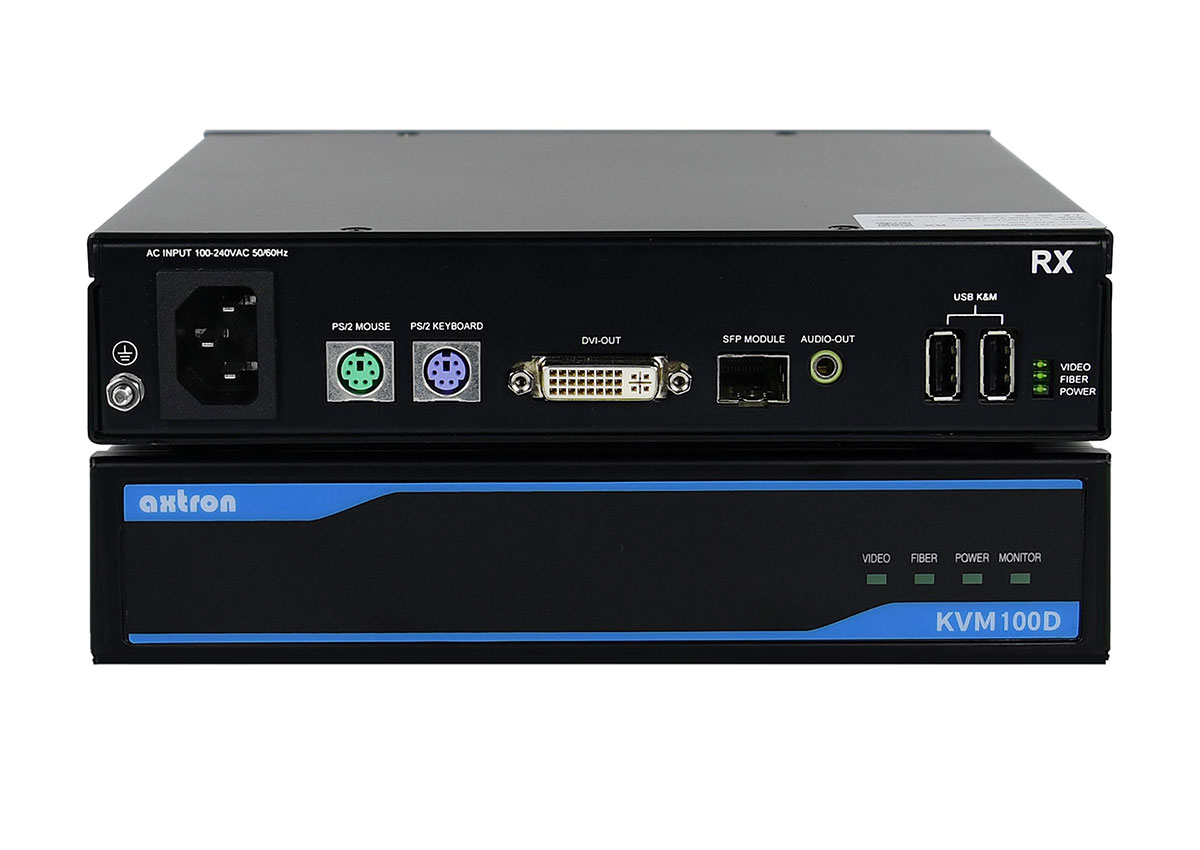

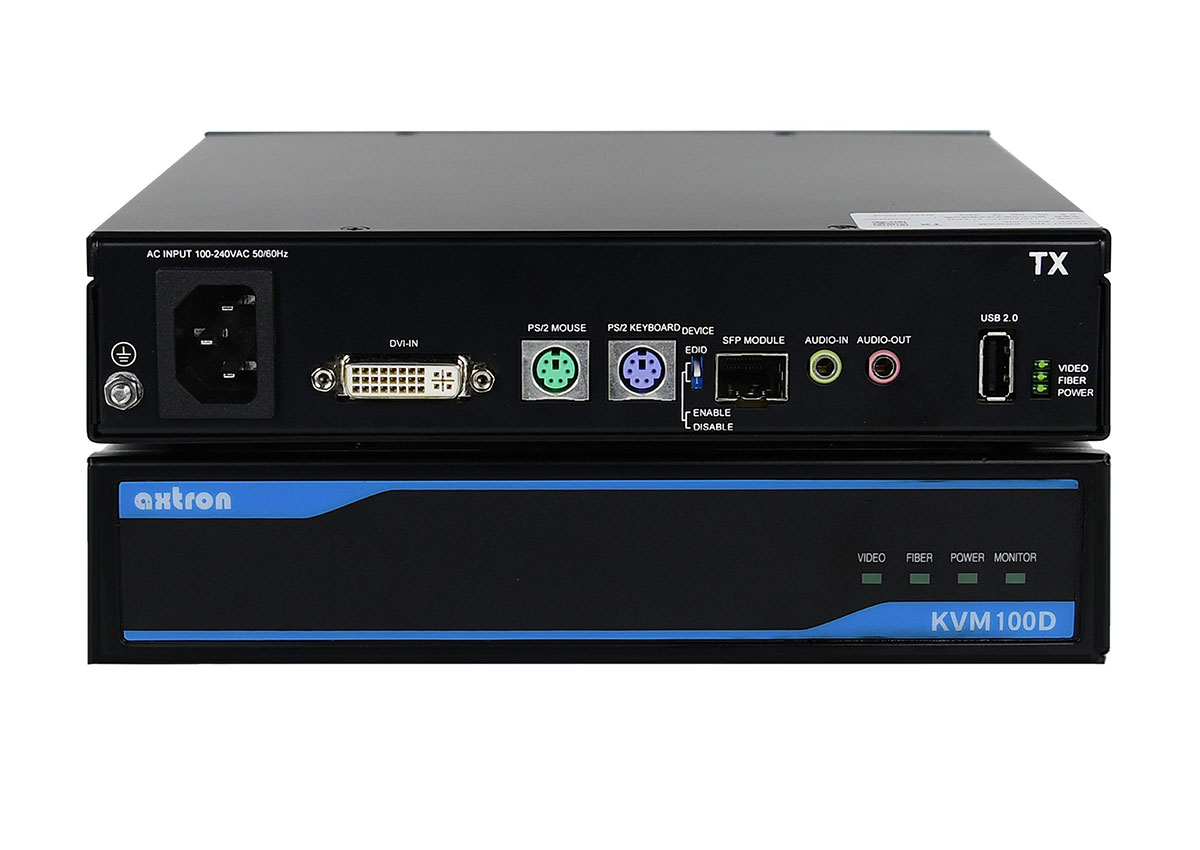

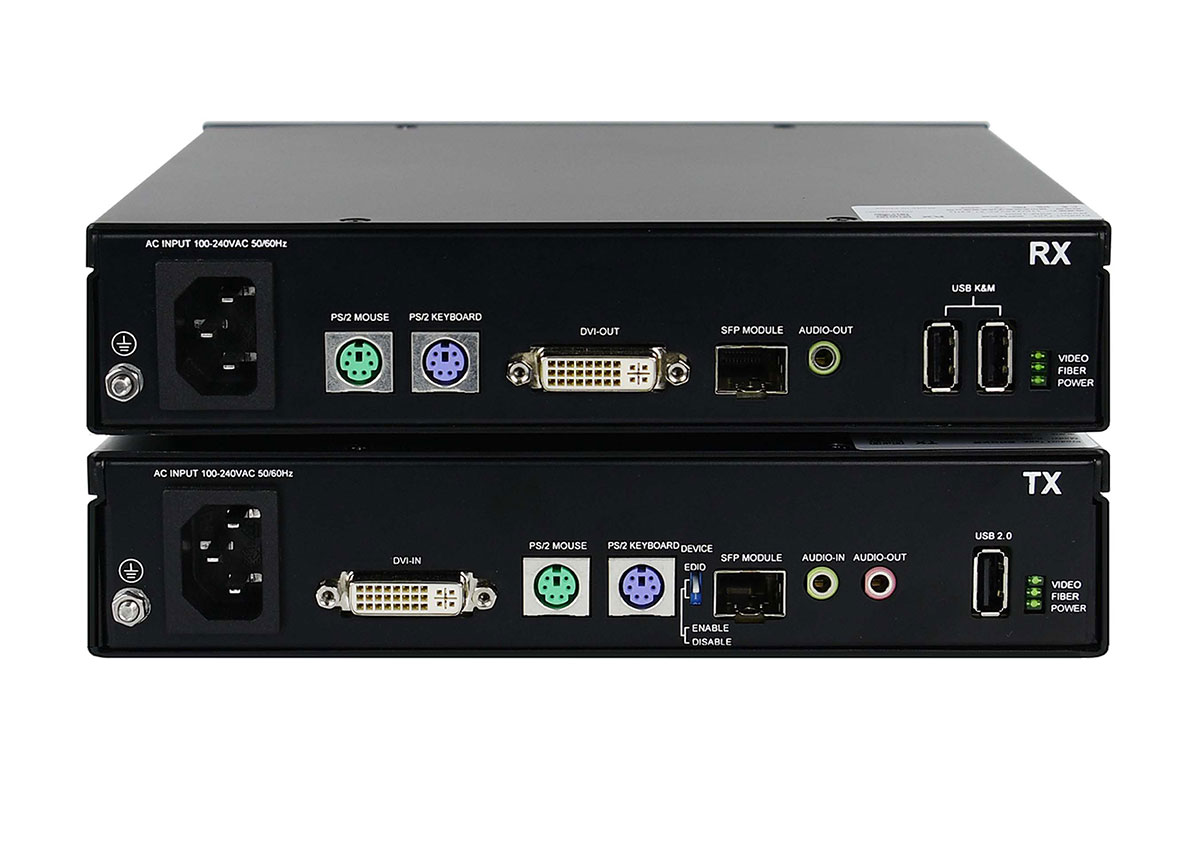

Transmitter (TX) Port Configuration					Receiver (RX) Port Configuration
Category	Description			Qty.	Category	Description	Qty.
DVI Video Input	Physical resolution supports 1920 * 1200 (WUXGA)			1	DVI Video Output	Physical resolution supports 1920 * 1200 (WUXGA)	1
USB Input	USB2.0-A Socket			1	USB Output	USB2.0-A Socket	2
Audio Input	3.5mm Audio Socket			1	Audio Output	3.5mm Audio Socket	1
Audio Output	3.5mm Audio Socket			1	Fiber Interface	SFP Socket, Optional SC or LC (single and dual fiber) optical module	1
Fiber Interface	SFP Socket, Optional SC or LC (single and dual fiber) optical module			1	PS/2 Mouse	6P Mini-DIN F(Green) Socket	1
PS/2 Mouse	6P Mini-DIN F(Green) Socket			1	PS/2 Keyboard	6P Mini-DIN F(Purple) Socket	1
PS/2 Keyboard	6P Mini-DIN F(Purple) Socket			1
Dimensions	21020644.4 mm (WDH)				Dimensions	21020644.4 mm (WDH)
Power Supply	C13 Socket, AC Input 100VAC-240V AC±20%, 50/60Hz
Environmental Parameters
Operating Temperature	-25~60℃	Storage Temperature	-40~80℃		Vibration Shock	IEC 60068-2-6 1Grms
Humidity	5~95%@45℃ non-condensing	Altitude	≤5500m		MTBF	≥100000H
Product Certification	CE,FCC,KC,UL,PSE,UKCA,RoHS
