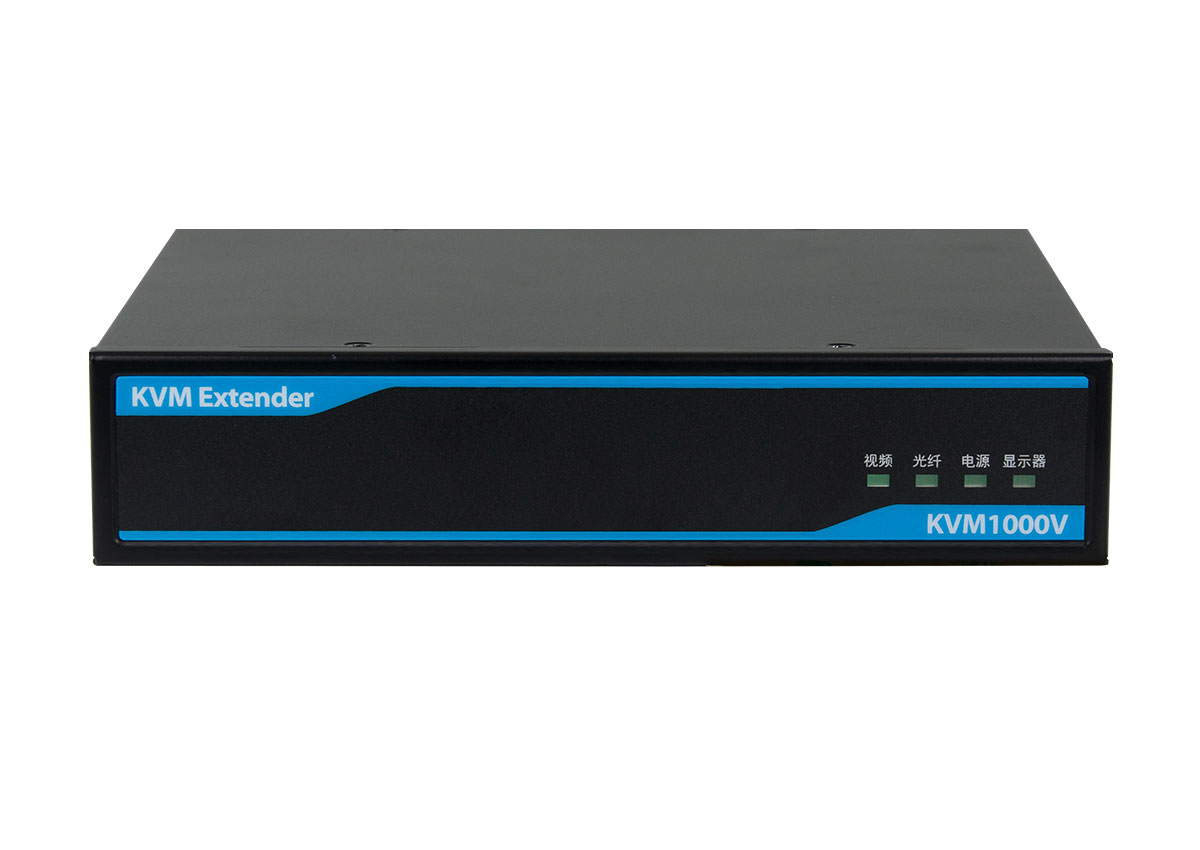

KVM1000V

Item no.KVM1000V

With VGA (analog) and HDMI (digital) video signal input
Receiver (RX) two-way copy display output（HDMI+VGA）
With two-way standard RS-232 and RS-485 communication ports
Excellent EMC electromagnetic compatibility performance
USB2.0 protocol transparent transmission, without third party driver
Meet the use in the high altitude environment of 5500m

KVM1000V DownLoad

Send Email Get Price

Product Overview Product Features Parameter Related Product Contact us

Product Overview

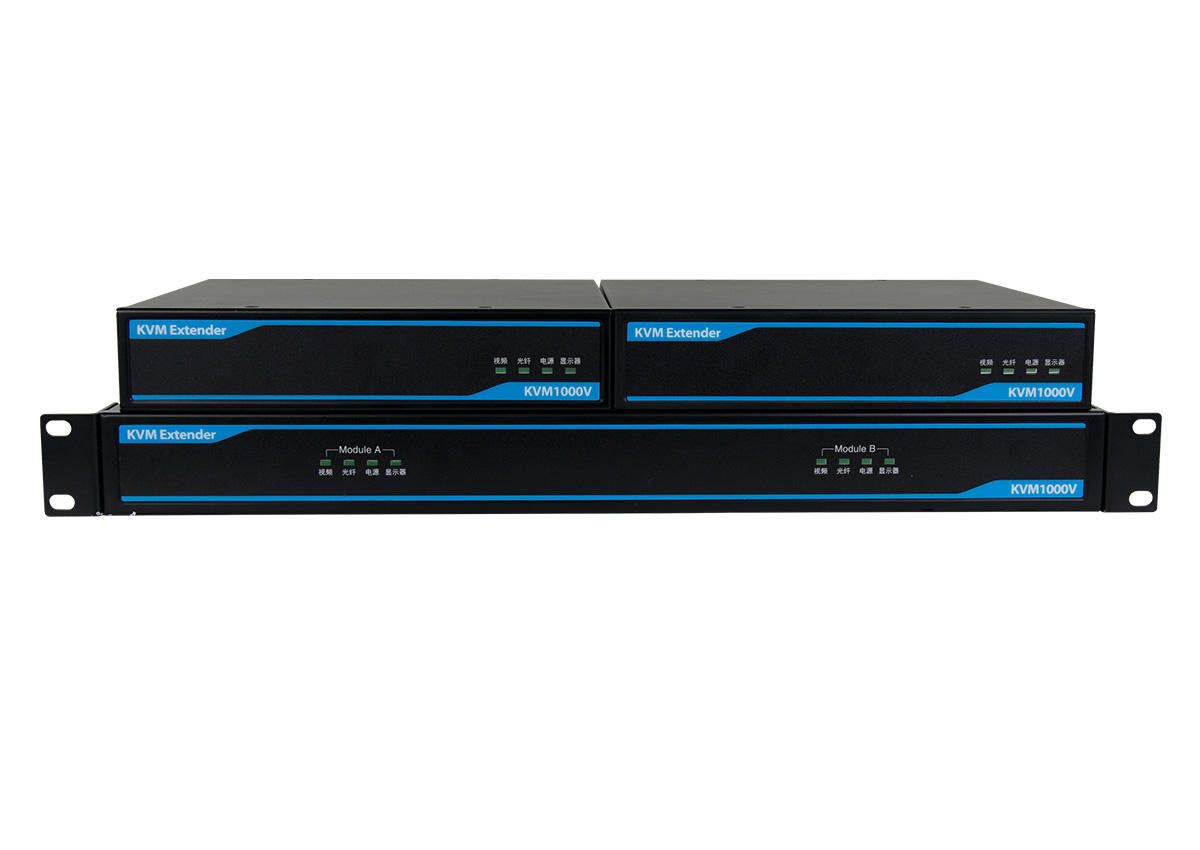

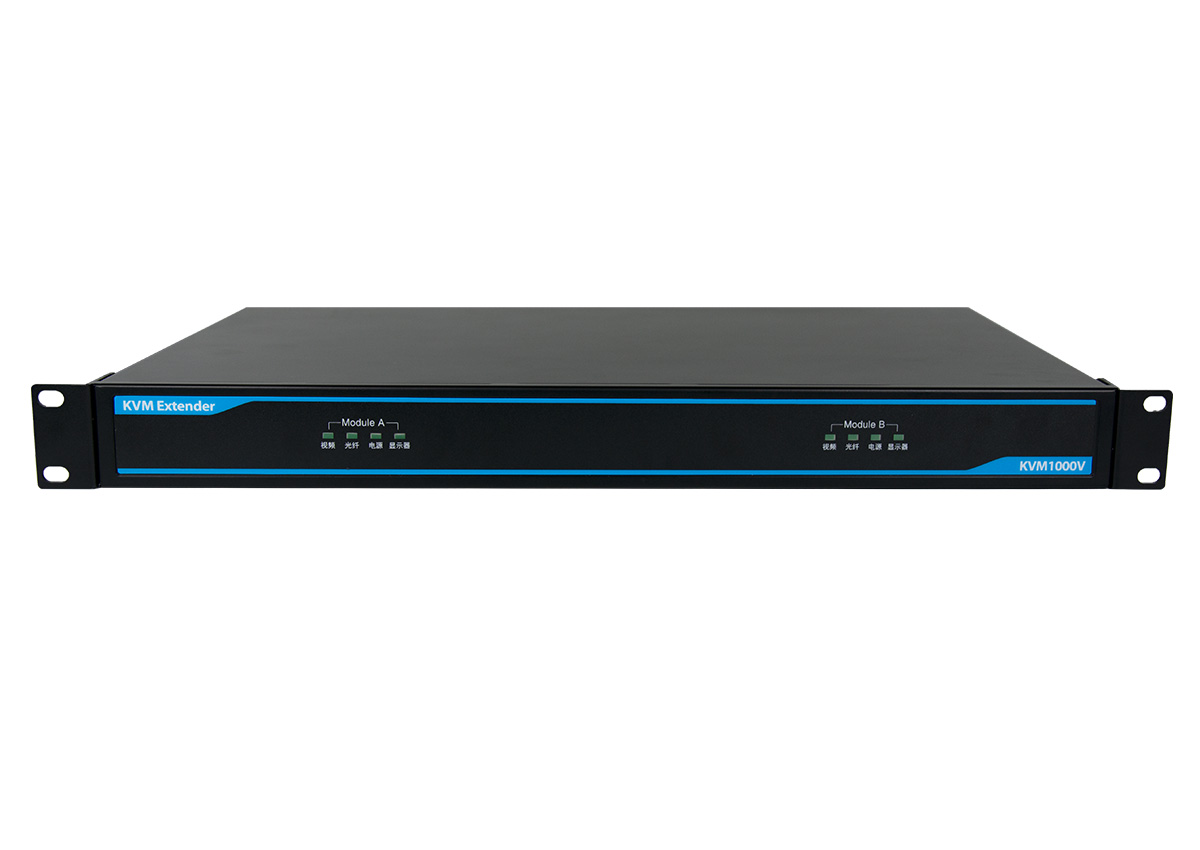

KVM1000V is a KVM signal long-line driver developed for industrial automation & rail transit industry applications. Its core uses high-speed FPGA chip for signal acquisition and coding, and then uses single-mode & multi-mode optical fiber as the carrier to transmit high-definition audio and video and control signals (including USB, PS/2 keyboard and mouse, 3.5mm stereo audio, VGA video, HDMI video, RS-232 & RS-485, etc.) can realize remote transmission and control within the range of 100m ~ 80KM according to optical modules with different communication distances. The minimum working unit of KVM1000V is composed of transmitter (TX) and receiver (RX). The transmitter adopts modular design and can be installed in the 19-inch standard cabinet together with the controlled target computer, which is convenient for the construction and maintenance of the machine room. The receiver is designed with a compact structure for easy installation on the remote console or in a compact space.

Product Features

With VGA (analog) and HDMI (digital) video signal input
Receiver (RX) two-way copy display output（HDMI+VGA）
With two-way standard RS-232 and RS-485 communication ports
Excellent EMC electromagnetic compatibility performance
USB2.0 protocol transparent transmission, without third party driver
Meet the use in the high altitude environment of 5500m

Parameter

Transmitter (TX) Port Configuration					Receiver (RX) Port Configuration
Category	Description			Qty.	Category	Description	Qty.

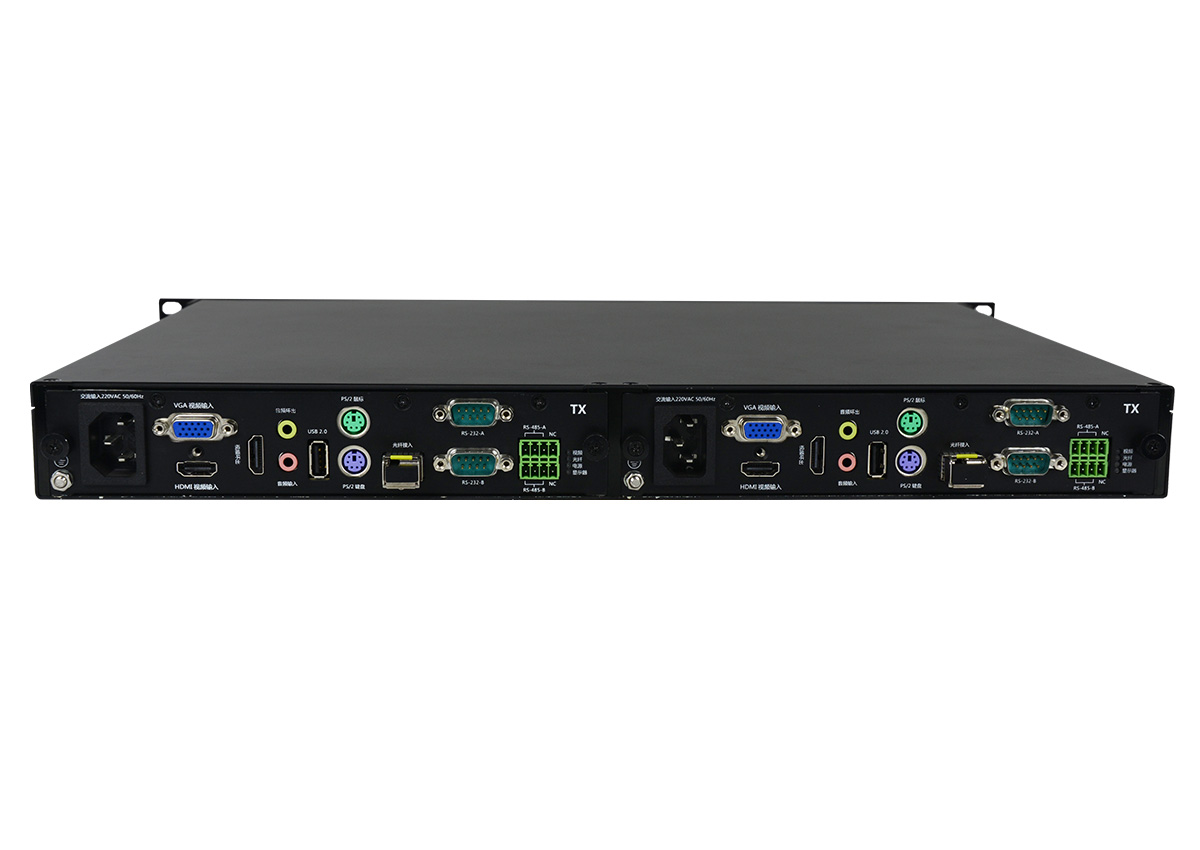

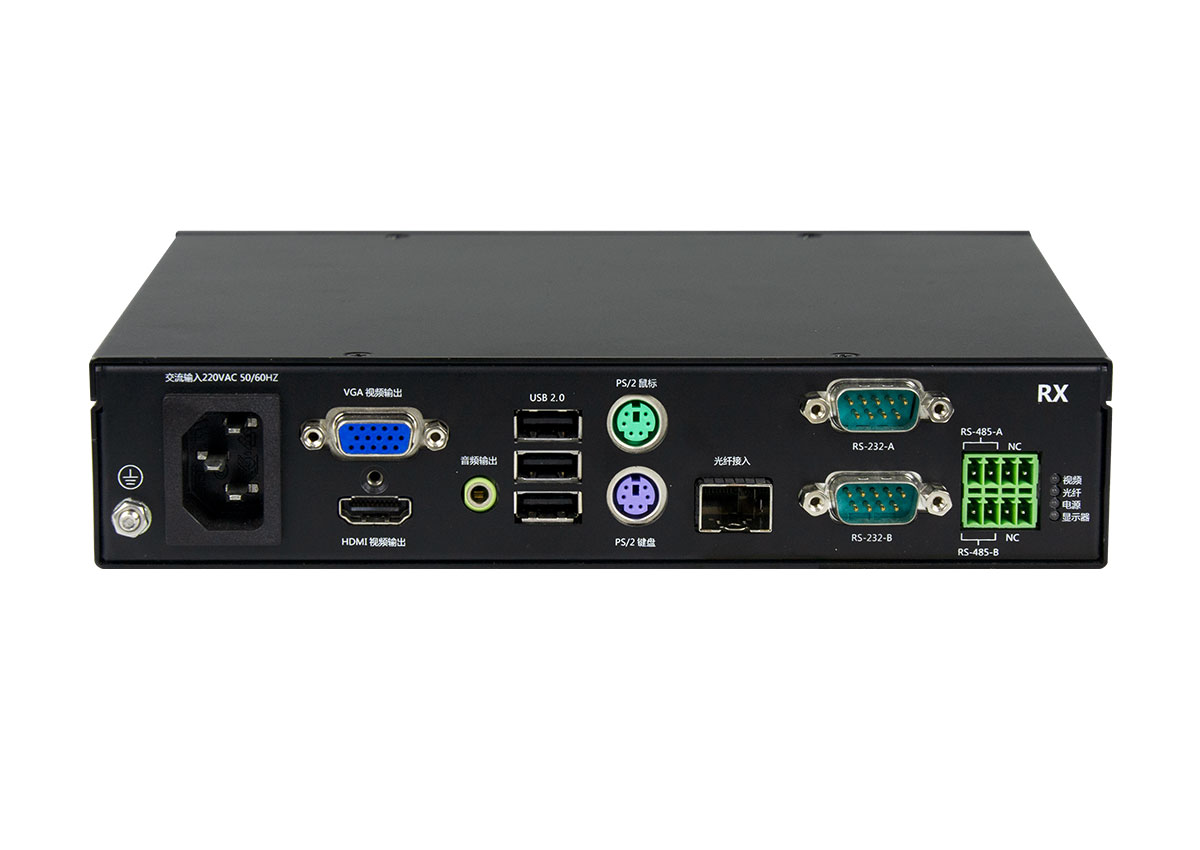

HDMI Video Input	HDMI-A Male			1	HDMI Video Output	HDMI-A Male	1
HDMI ring connected output	HDMI-A Male			1	VGA Video Output	DB 15 Socket - Female	1
VGA Video Input	DB 15 socket - Female			1	Audio Output	3.5mm Audio Socket	1
USB Input	USB2.0-A Socket			1	USB Output	USB2.0-A Socket	3
Audio Input	3.5mm Audio Socket			1	PS/2 Mouse	6P Mini-DIN F (Green) Socket	1
Audio ring connected output	3.5mm Audio Socket			1	PS/2 Keyboard	6P Mini-DIN F (Purple) Socket	1
PS/2 Mouse	6P Mini-DIN F (Green) Socket			1	Fiber Interface	SFP Socket, Optional SC or LC (single and dual fiber) optical module	1
PS/2 Keyboard	6P Mini-DIN F (Purple) Socket			1	RS-232	Connect to host RS-232 port (DB 9 Pin)	2
Fiber Interface	SFP Socket, Optional SC or LC (single and dual fiber) optical module			1	RS-485	3.5mm spacing Terminal Block	2
RS-232	DB 9 Socket (Pin) Male			2	/
RS-485	3.5mm spacing Terminal Block			2	/
Dimensions	43536044.4 mm（WDH）				Dimensions	21020644.4 mm（WDH）
Power Supply	C13 Socket，AC Input 110VAC/220V AC±20%, 47-63Hz
Environmental Parameters
Operating Temperature	-25~60℃	Storage Temperature	-40~80℃		Vibration Shock	IEC 60068-2-6 1Grms
Humidity	5~95%@45℃ non-condensing	Altitude	≤5500m		MTBF	≥100000H
Product Certification	CE,FCC,IC,PSE,UKCA,RoHS
