KVM1000D

Item no.KVM1000D

HDMI video signal input, HDMI + VGA dual port video output
Customizable Hot Key function channel switch
KVM Extender + KVM Switch 2-in-1 Design
Excellent EMC electromagnetic compatibility performance
Support parallel cascade and daisy-chain stacking signal channel switching
Meet the use in the high altitude environment of 5500m

KVM1000D DownLoad

Send Email Get Price

Product Overview Product Features Parameter Related Product Contact us

Product Overview

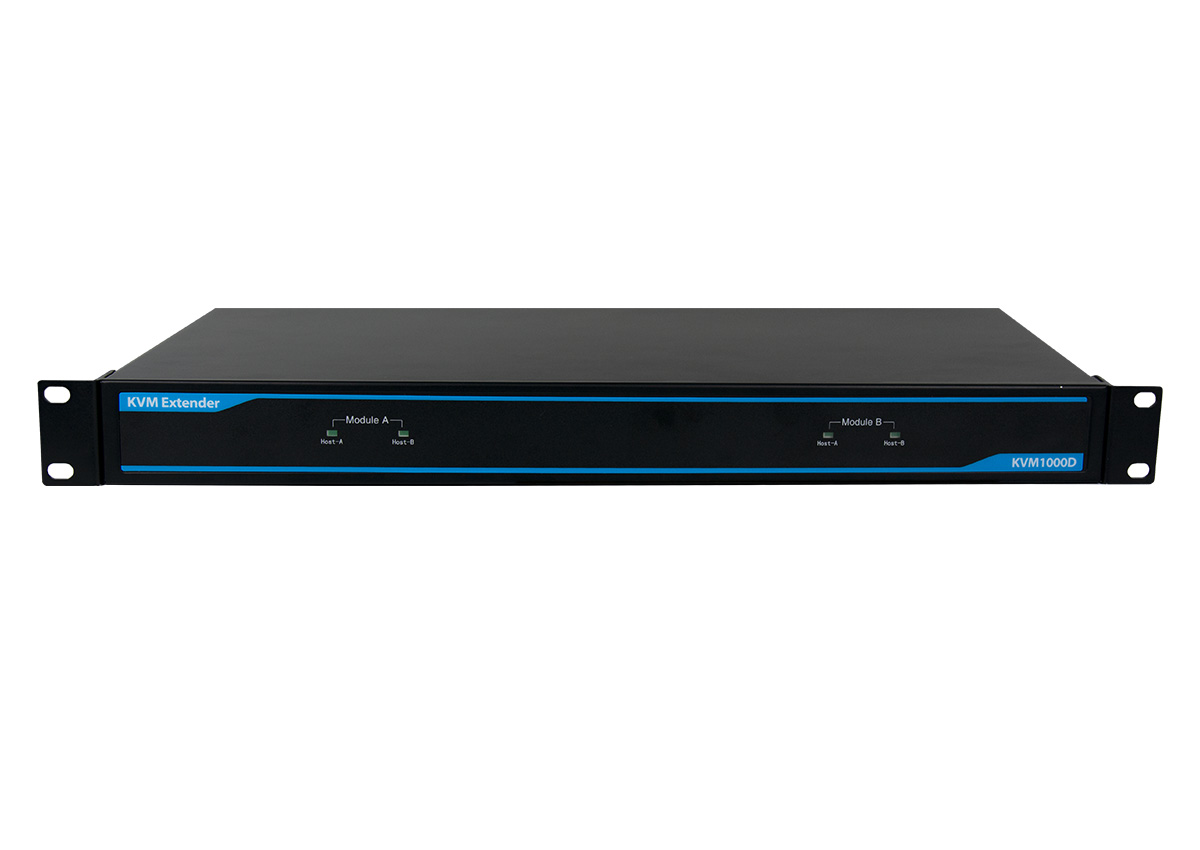

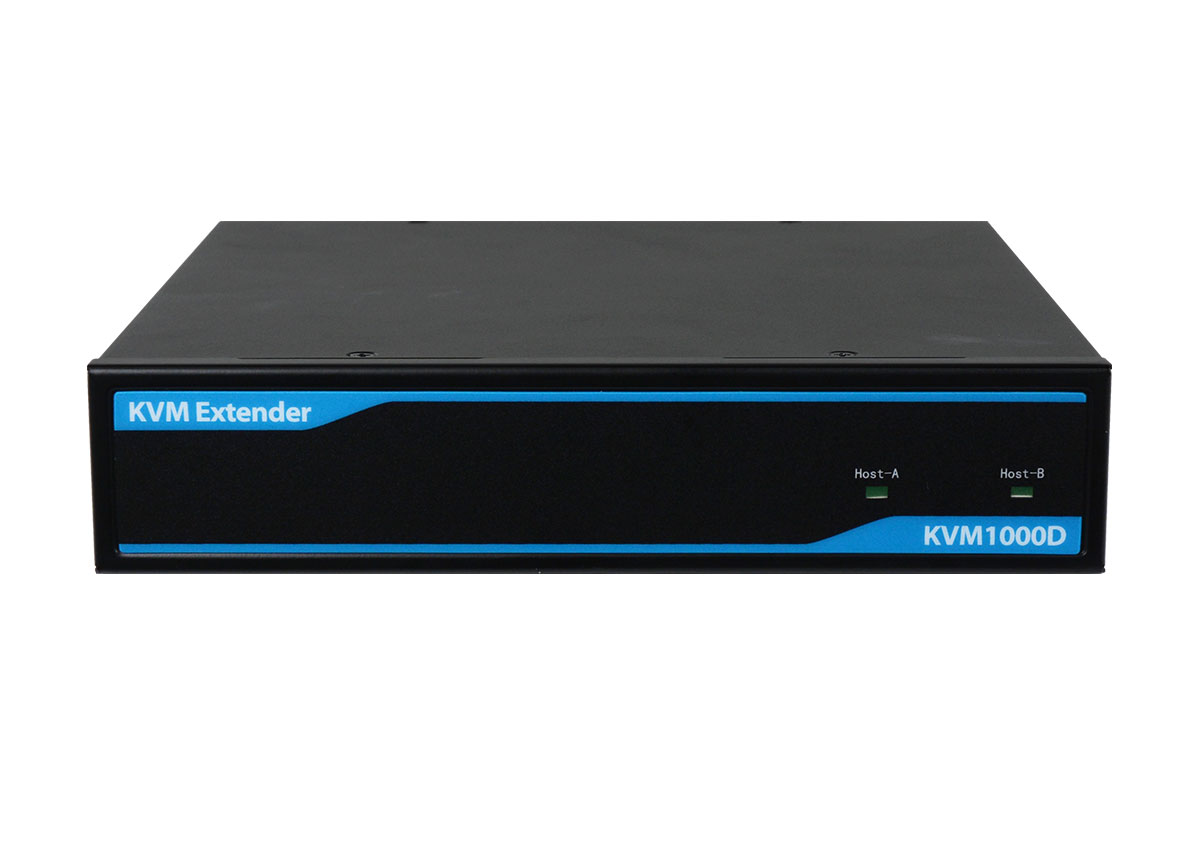

KVM1000D is a KVM signal long-line driver developed for industrial automation, rail transit industry and aviation power dispatching industry. The device adopts the integrated design of extender and switcher, which can manage multiple target computers under the condition of limited number of monitos. Its core uses high-speed FPGA chip for signal acquisition and coding, and then uses single-mode & multi-mode optical fiber as the carrier to transmit high-definition audio and video and control signals (including USB-HID device, 3.5mm stereo audio and HDMI video signals ) can realize remote transmission and control within the range of 100m ~ 80KM according to optical modules with different communication distances. The minimum working unit of KVM1000D is composed of transmitter (TX) and receiver (RX). The transmitter adopts modular design and can be installed in the 19-inch standard cabinet together with the controlled target computer, which is convenient for the construction and maintenance of the machine room. The receiver is designed with a compact structure for easy installation on the remote console or in a compact space.

Product Features

HDMI video signal input, HDMI + VGA dual port video output
Customizable Hot Key function channel switch
KVM Extender + KVM Switch 2-in-1 Design
Excellent EMC electromagnetic compatibility performance
Support parallel cascade and daisy-chain stacking signal channel switching
Meet the use in the high altitude environment of 5500m

Parameter

Order Information: (Single-mode LC port optical module is configured by default)
Product Model	Material Number	Configuration	Fiber Interface	Optical Fiber Type	Extended Distance	Optical Fiber Requirement
KVM1000D （Single）	M20221003	Two-in-one-out configuration: 1U transmitter built-in functional module * 1, Receiver * 1, preset EDID, Maximum video resolution 1920 * 1200, Transmitter with 2-channel HDMI video input (internal switching function) Receiver VGA + HDMI dual display (copy) output, support USB-HID peripherals, AC input	SC & LC Single fiber bidirectional	Single mode & Multi-mode	500m~40km Optional	OM4
Accessories List	HDMI-HDMI video (Type A) * 2, USB-USB Type A data cable * 2, 3.5mm audio signal cable (male) * 2, National standard C13 plug power cord * 2, Product use manual * 1, Qualified certificate * 1, Device Functional Conformance Checklist * 1, 2.5mm² WDZB-RYJ yellow-green grounding wire * 2, LC-LC single-mode optical fiber jumper * 1

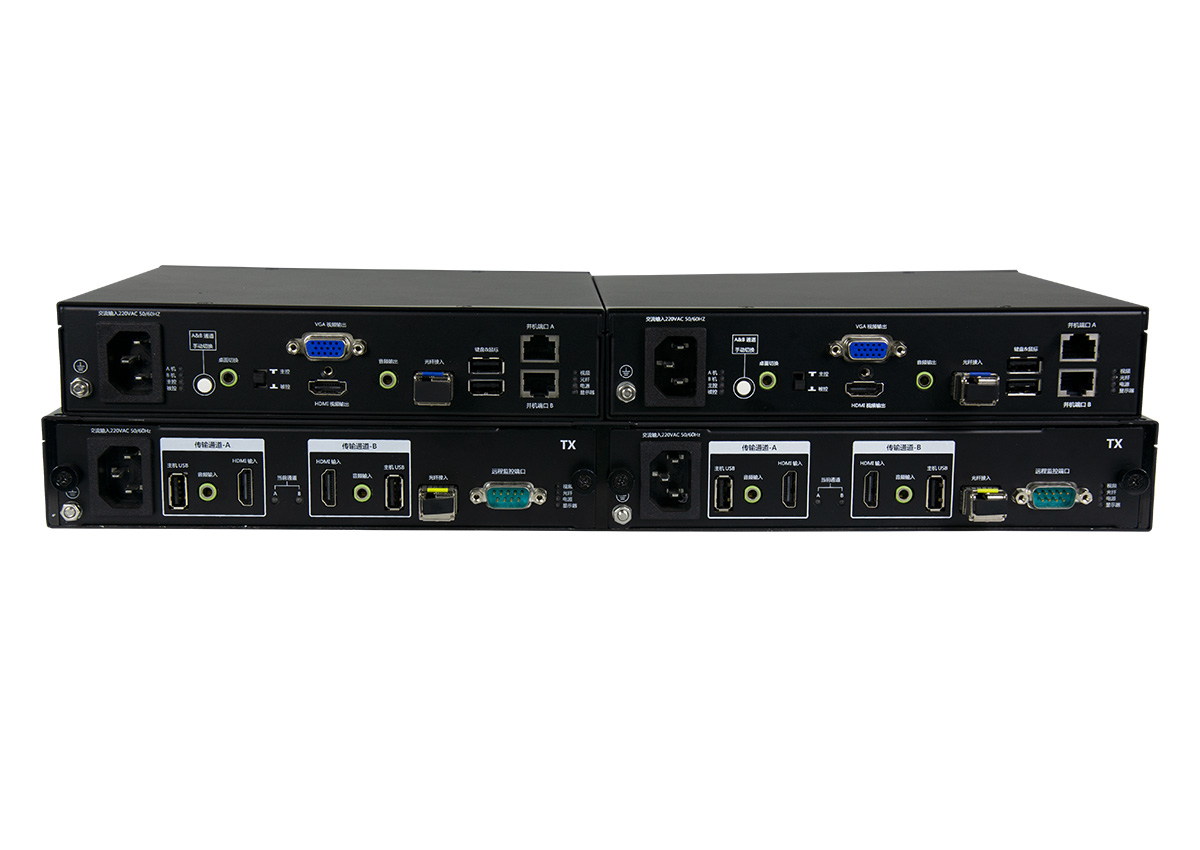

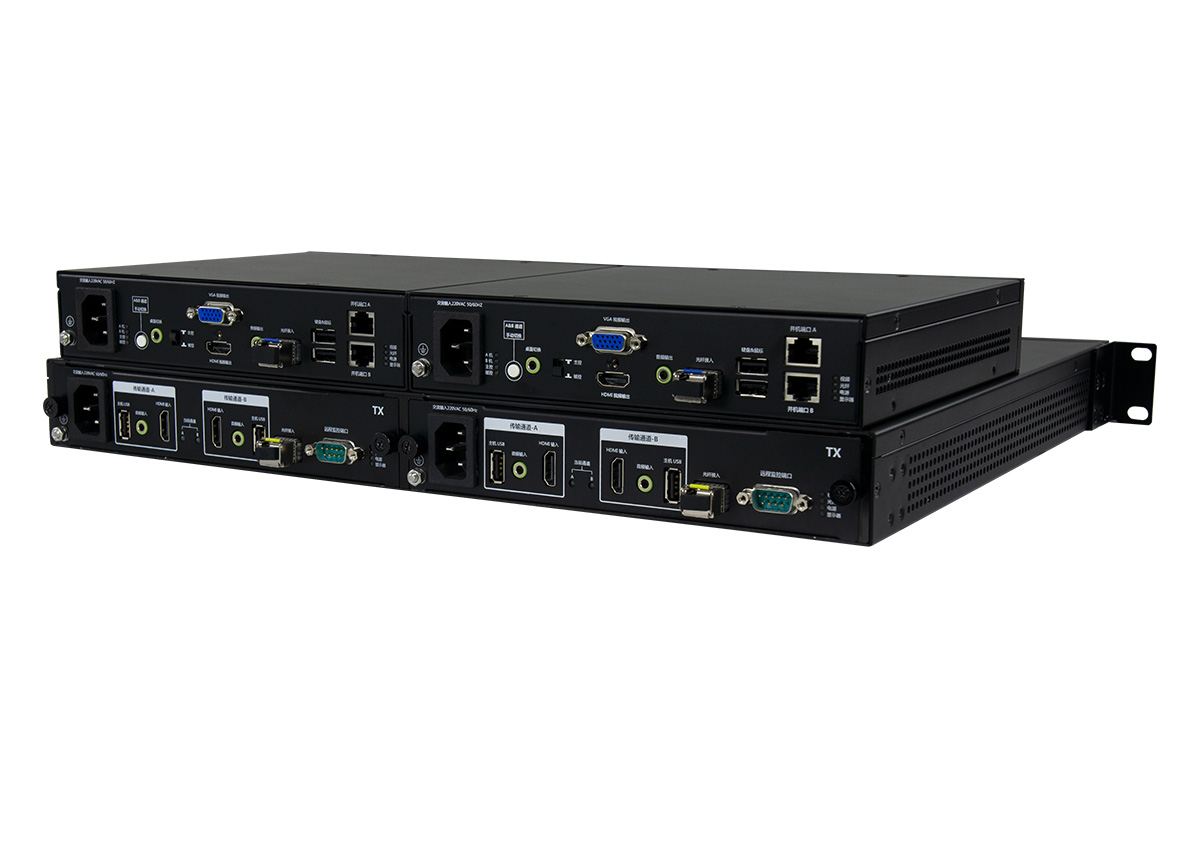

KVM1000D （Dual）	M20221004	Four-in-two-out configuration: 1U transmitter built-in functional module * 2, Receiver2, preset EDID, Maximum video resolution 1920 1200, Transmitter with 4-channel HDMI video input (internal switching function), Receiver VGA + HDMI dual display (copy) output, Support USB-HID peripherals, AC input	SC & LC Single fiber bidirectional	Single mode & Multi-mode	500m~40km Optional	OM4
Accessories List	HDMI-HDMI video (Type A) * 4, USB-USB Type A data cable * 2, 3.5mm audio signal cable (male) * 2，National standard C13 plug power cord * 4, Product use manual * 1, Qualified certificate * 1, Device Functional Conformance Checklist * 1, 2.5mm² WDZB-RYJ yellow-green grounding wire * 3，LC-LC single-mode optical fiber jumper * 2, RJ45 parallel cable * 1

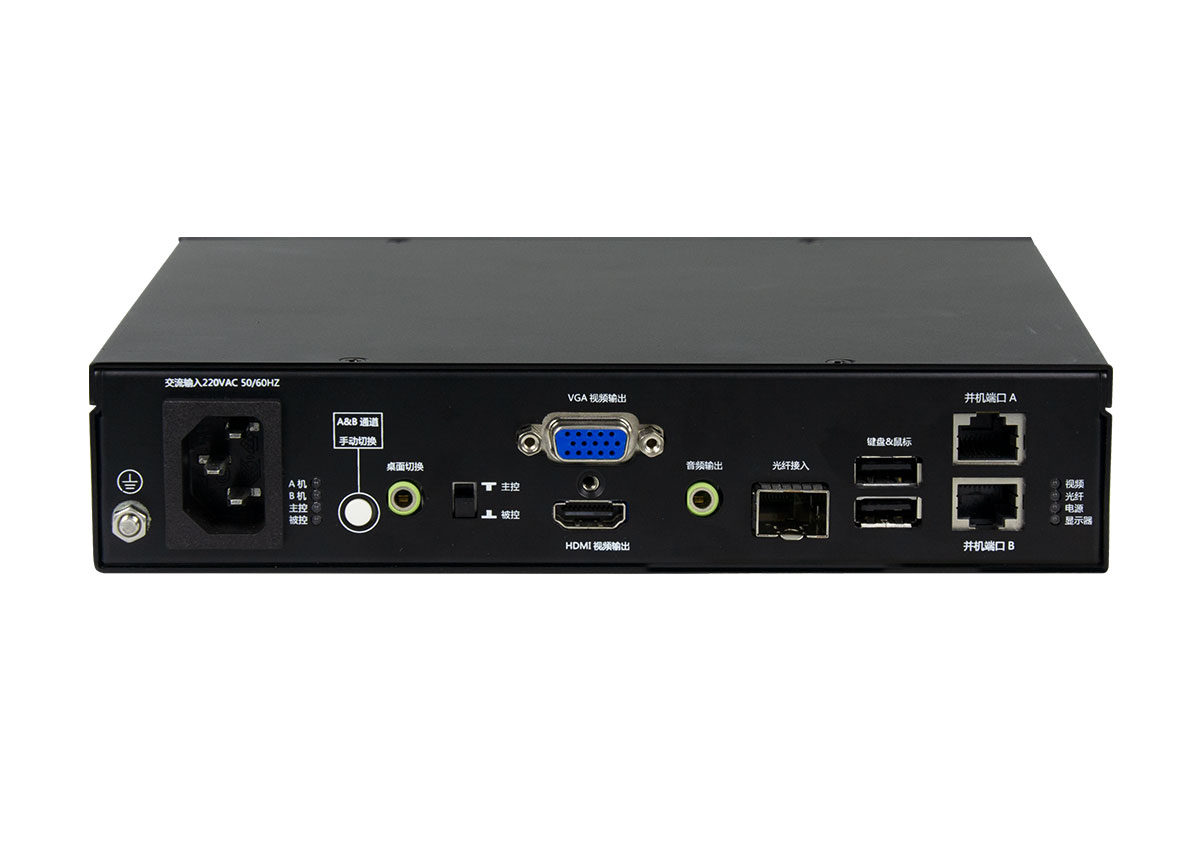

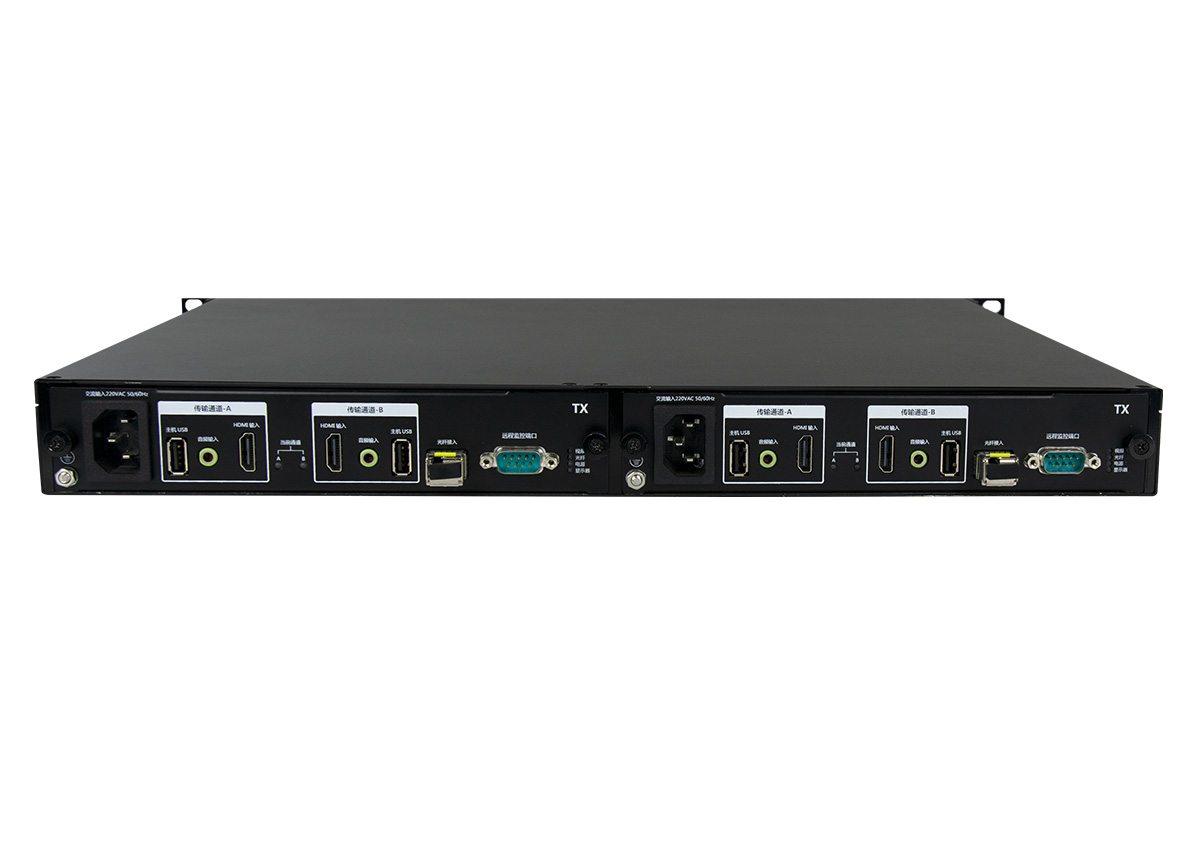

Transmitter (TX) Port Configuration			Receiver (RX) Port Configuration
Category	Description	Qty.	Category	Description	Qty.
HDMI Video Input	HDMI-A Male	1	HDMI Video Output	HDMI-A Male	1
USB Input	USB2.0-A Socket	1	VGA Video Output	DB 15 Socket - Female	1
Audio Input	3.5mm Audio Socket	1	Audio Output	3.5mm Audio Socket	1
Fiber Interface	SFP Socket, Optional SC or LC (single and dual fiber) optical module	1	USB Output	USB2.0-A socket (HID device only)	2
Condition Monitoring	DB9-pin socket (RS-232 protocol) (optional, not on by default)	1	Fiber Interface	SFP Socket, Optional SC or LC (single and dual fiber) optical module	1
Channel Status	A&B channel status indicator (green)	2	Parallel Port	RJ45 Socket	2
/			Desktop Switching	3.5mm Audio Socket (Female)	1
/			Channel Switch	Manual micro-touch button switch	1
Dimensions	43536044.4mm （WDH）		Dimensions	21020644.4mm （WDH）
Power Supply	C13 Socket, AC Input 110VAC/220V AC±20%, 47-63Hz

Environmental Parameters
Operating Temperature	-25~60℃	Storage Temperature	-40~80℃	Vibration Shock	IEC 60068-2-6 1Grms
Humidity	5~95%@45℃ non-condensing	Altitude	≤5500m	MTBF	≥100000H
Product Certification	CE,FCC,IC,PSE,UKCA,RoHS
