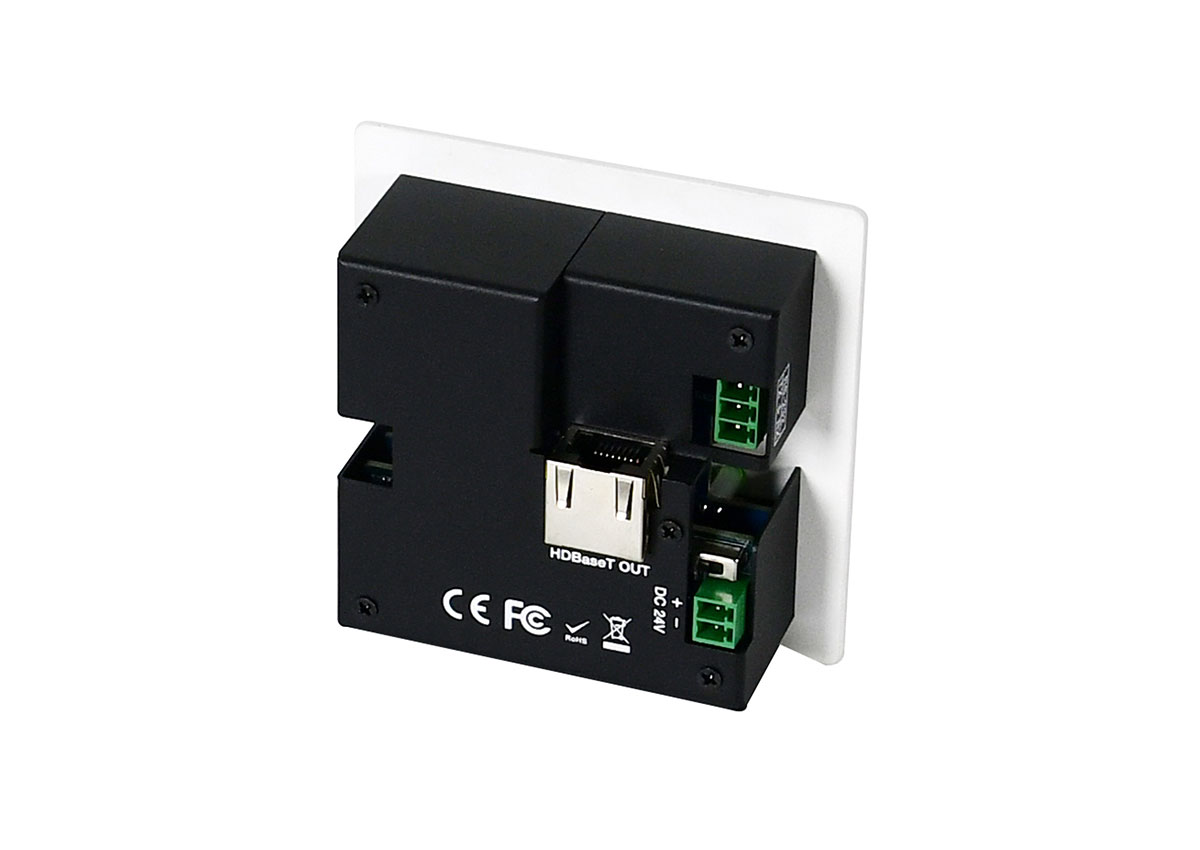

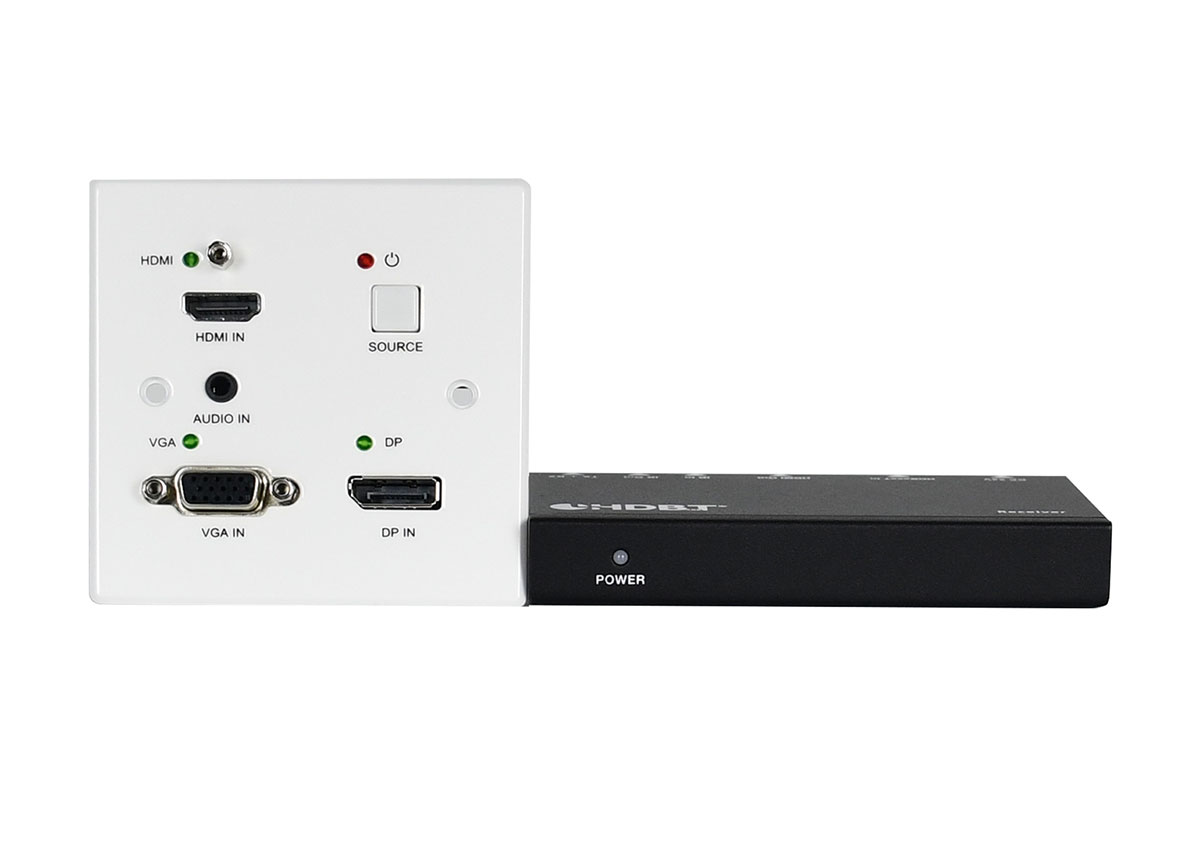

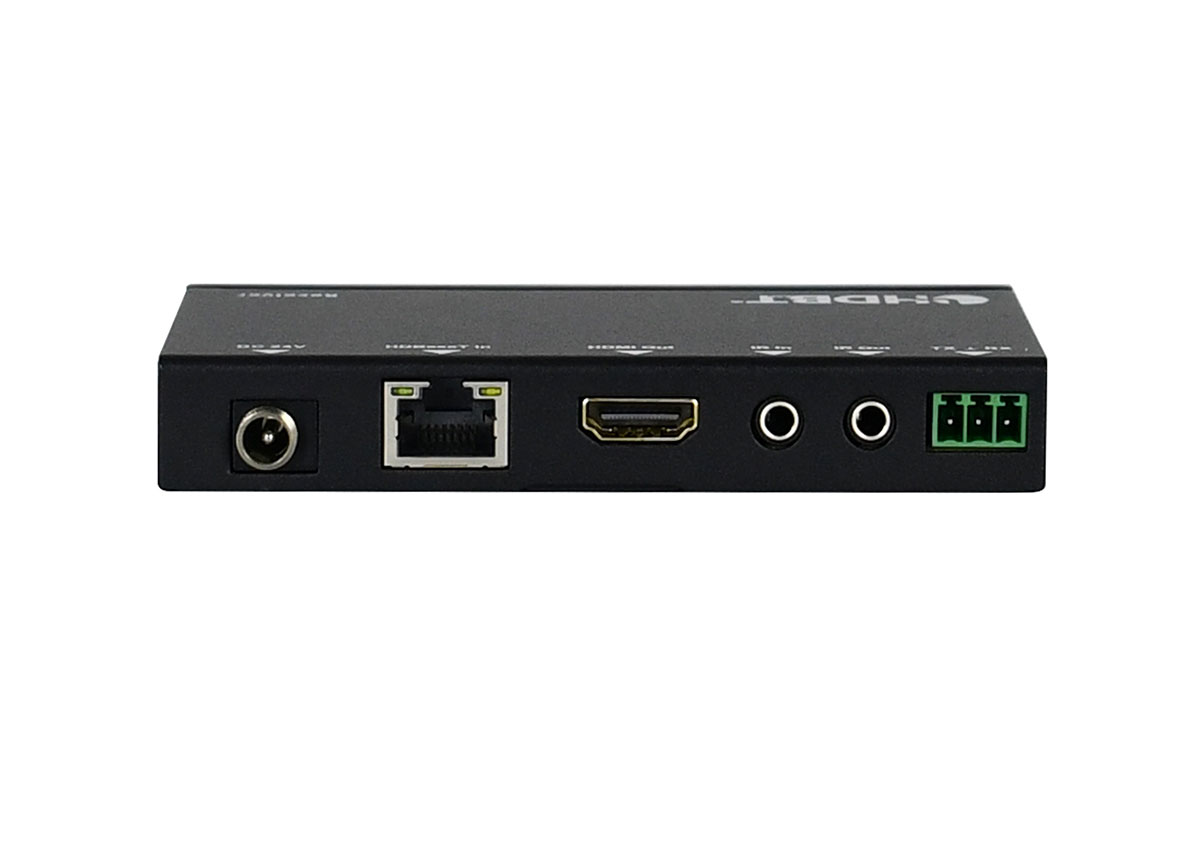

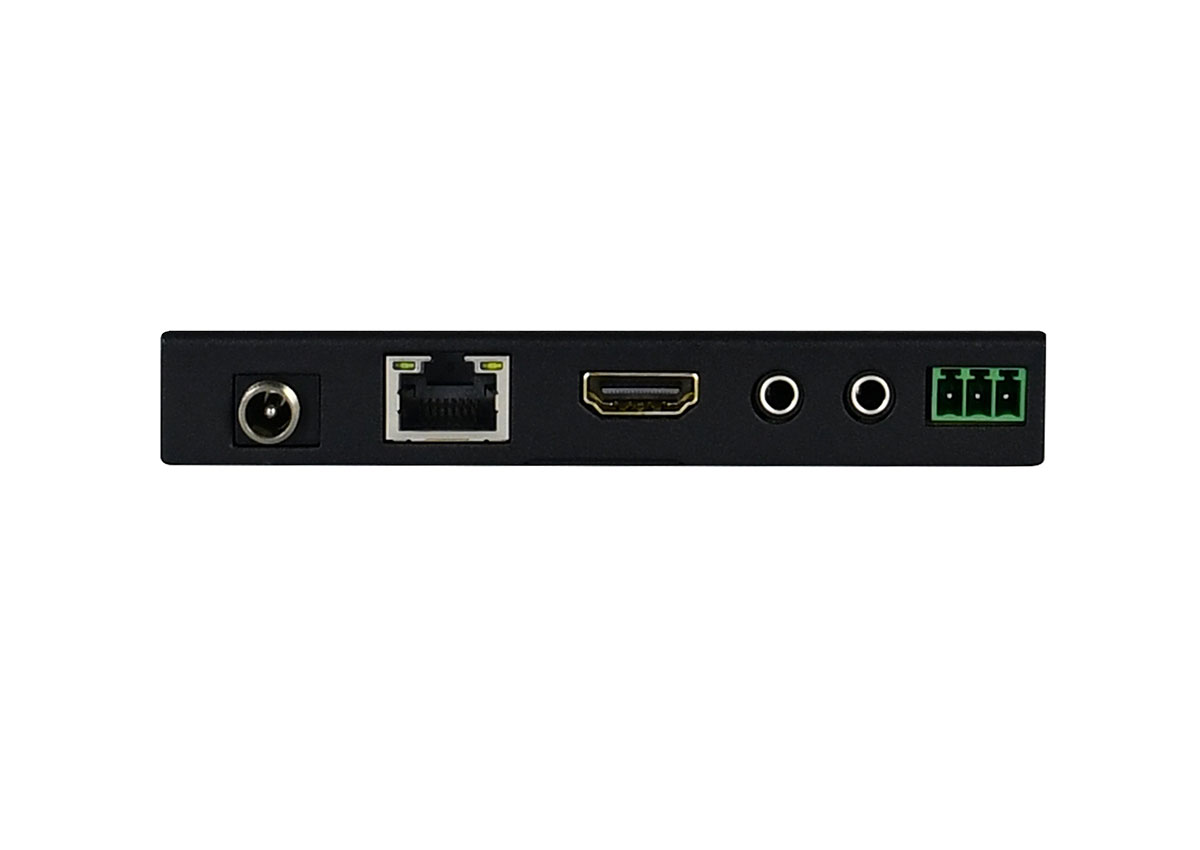

The cat5e/cat6 HDMI Extender is a tool which can extend your HDMI signal over 230fts/70meters to a compatible display. It is designed to convert HDMI signal to standard HDBaseT signal which can be transmitted by LAN cable.
The cat5e/cat6 HDMI Extender is a tool which can extend your HDMI signal over 230fts/70meters to a compatible display. It is designed to convert HDMI signal to standard HDBaseT signal which can be transmitted by LAN cable. It also supports Transfer Bidirectional Infrared control signal together with the HDMI signal, so you can control the Source in the Sink side which is 230fts outside, also you can control the Sink in the Source side which is 230fls outside by using the HDMI Extender.
|
Technical |
|
|
Frequency Bandwidth |
297MHz[10.2Gbps] |
|
Transmitter Input/Output |
1x HDMI Female port/1xCAT6 1x IR Tx/1xIR Rx/1xPhoenix |
|
Receiver Input/Output Ports |
1x HDMI Female port/1xCAT6 1x IR Tx/1XIR Rx/1xPhoenix |
|
Power Supply |
DC 24V 1A |
|
ESD Protection |
Human Body Model: ±8kV (air-gap discharge) ±4kV (contact discharge) |
|
Dimensions(mm) |
65(W)X 115(D)X 17(H) |
|
Weight |
200g x2 |
|
Operating Temperature |
0℃-40℃/32℉~104℉ |
|
Storage Temperature |
-20℃-60℃/-4℉~140℉ |
|
Relative Humidity |
20~90% RH(Non-condensing) |
|
Power Consumption |
20W(Max) |
