HDMI 8 port KVM Switch

Item no.8 port hdmi kvm

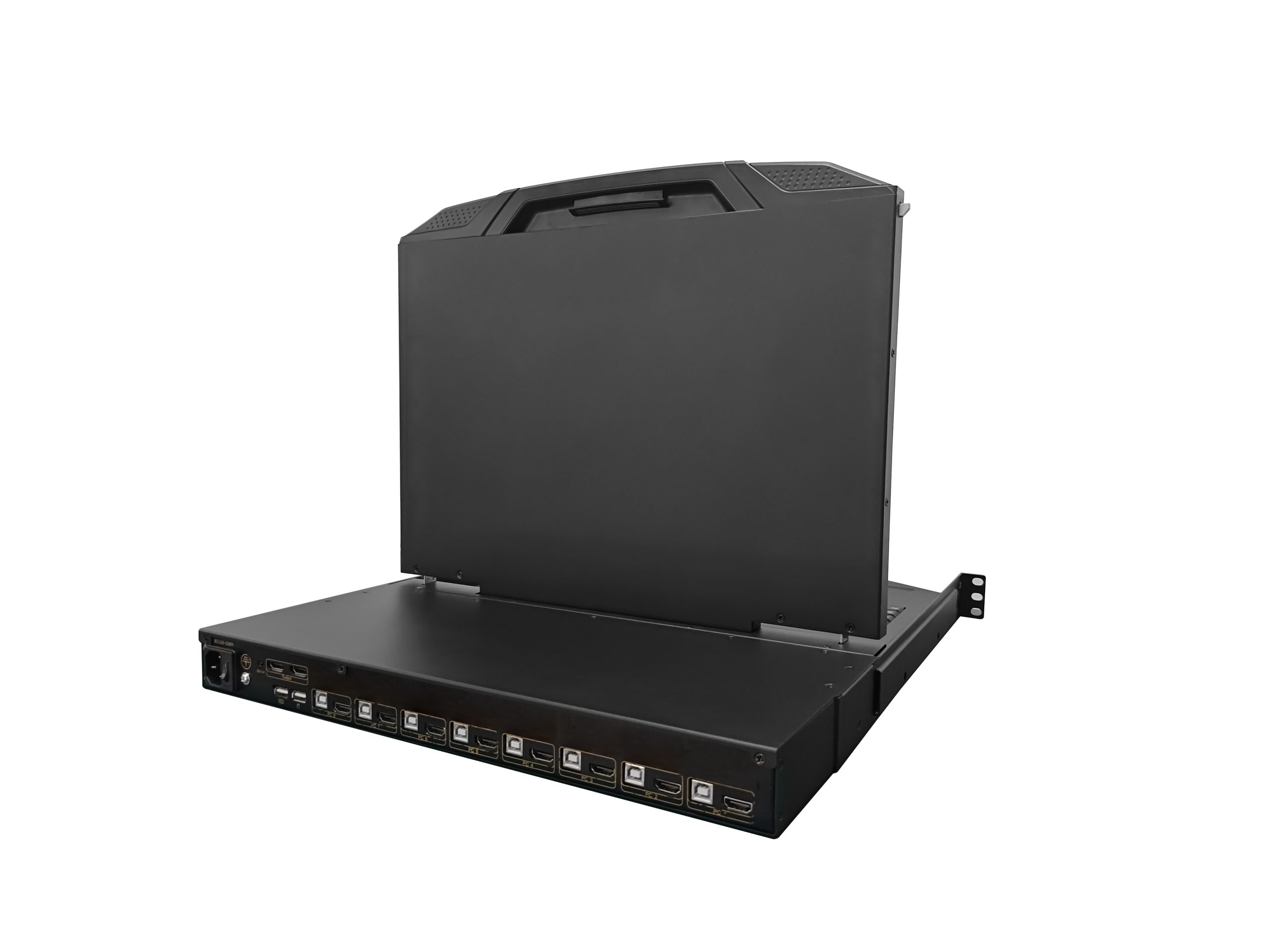

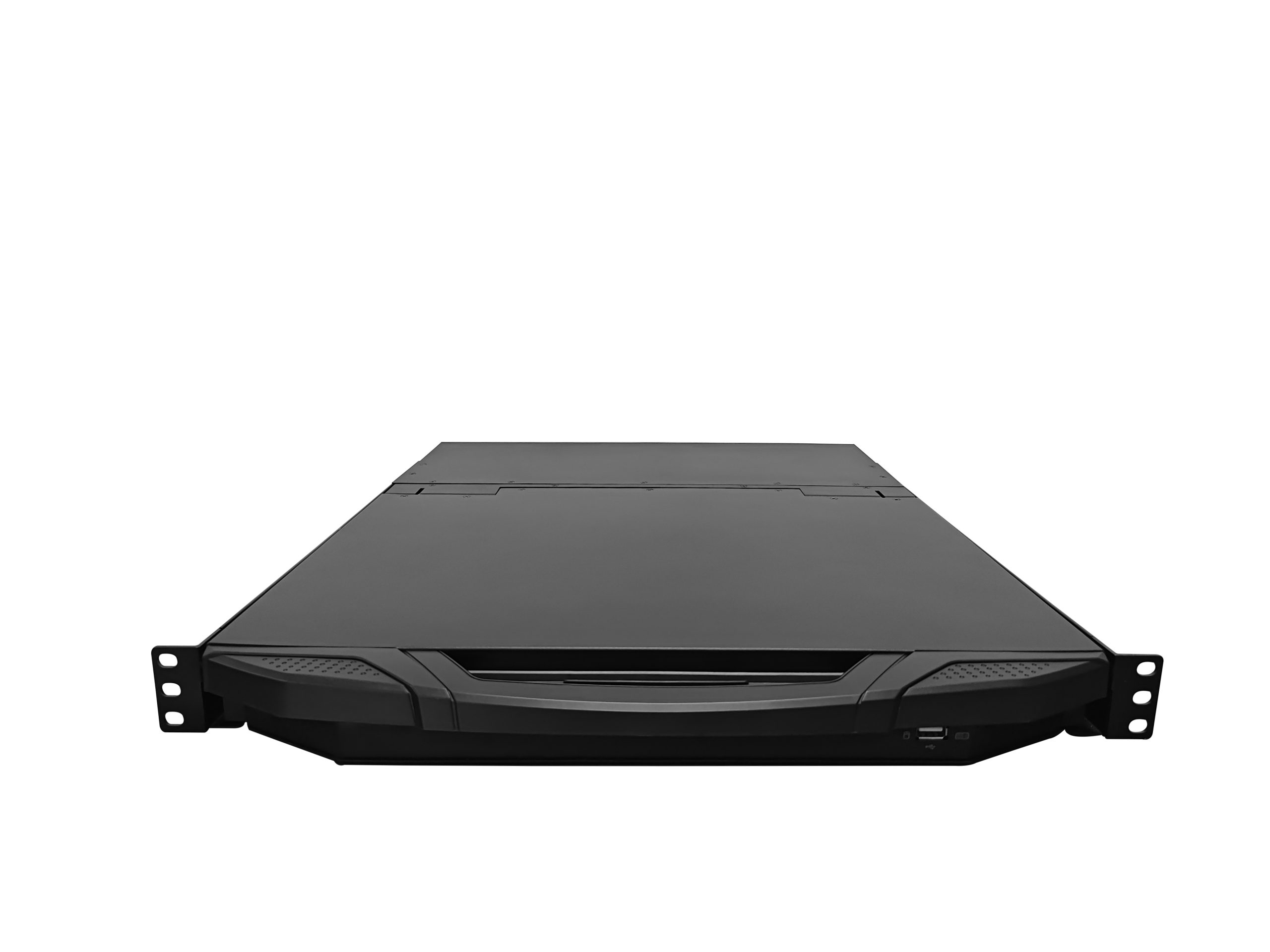

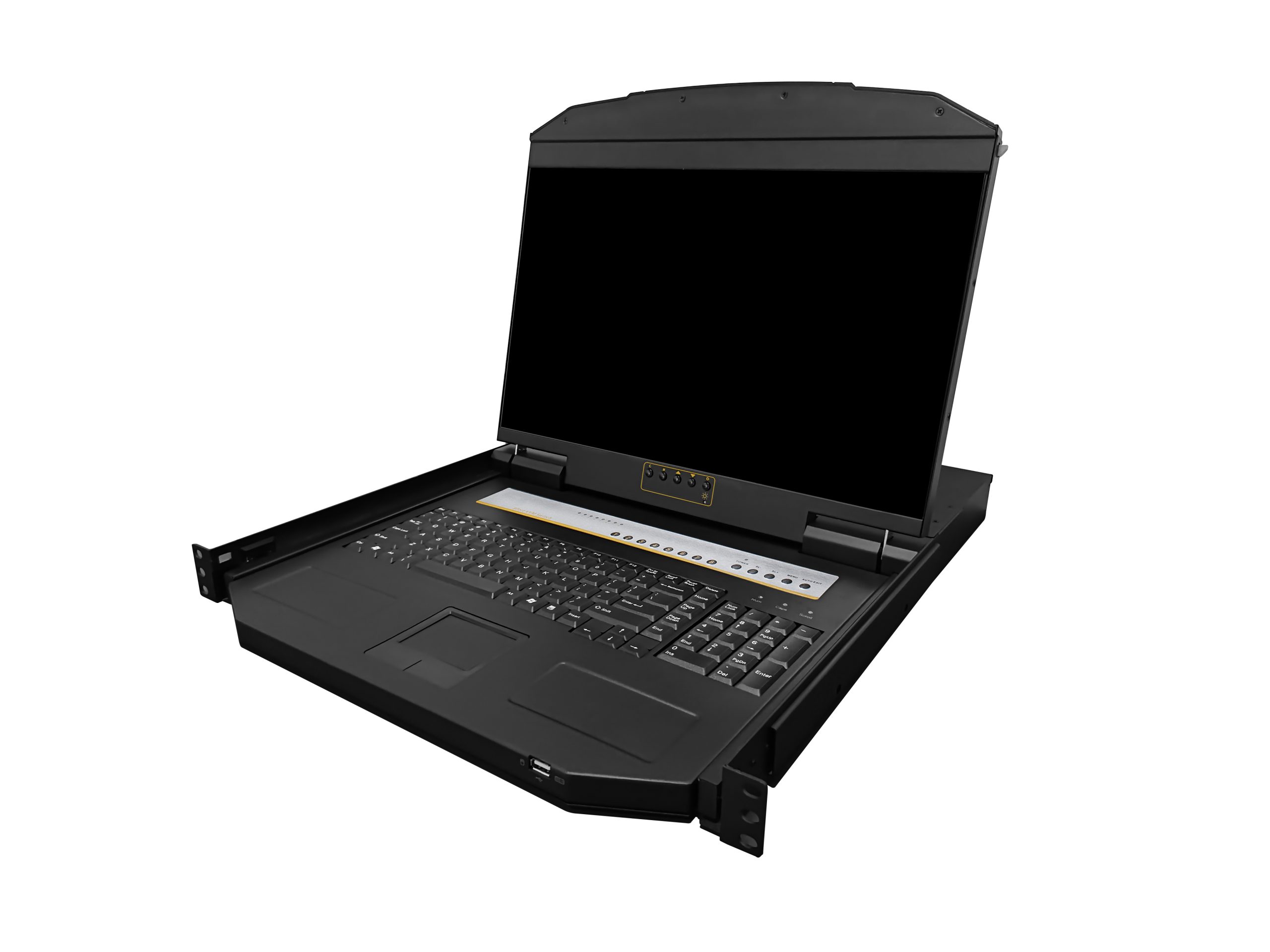

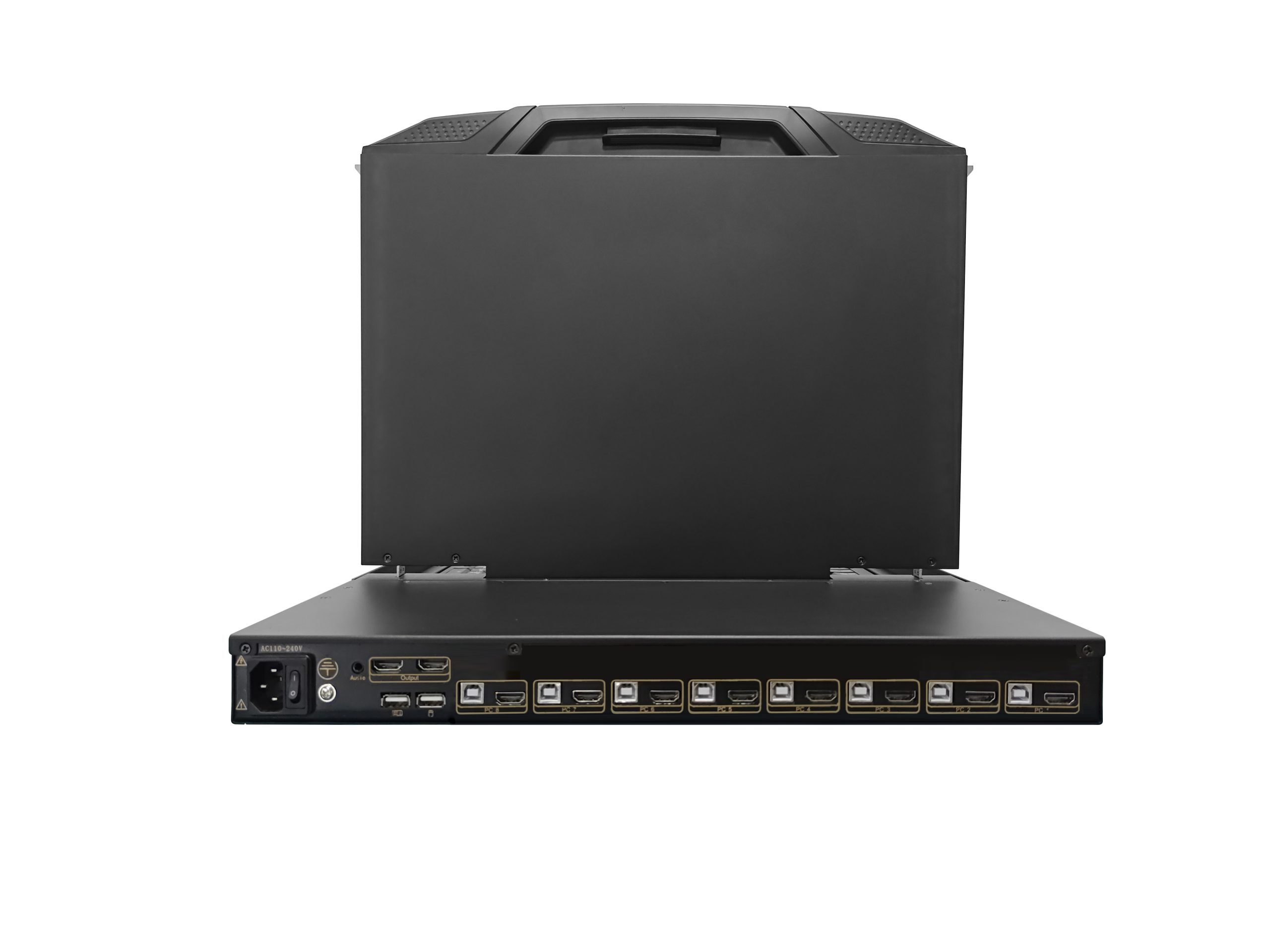

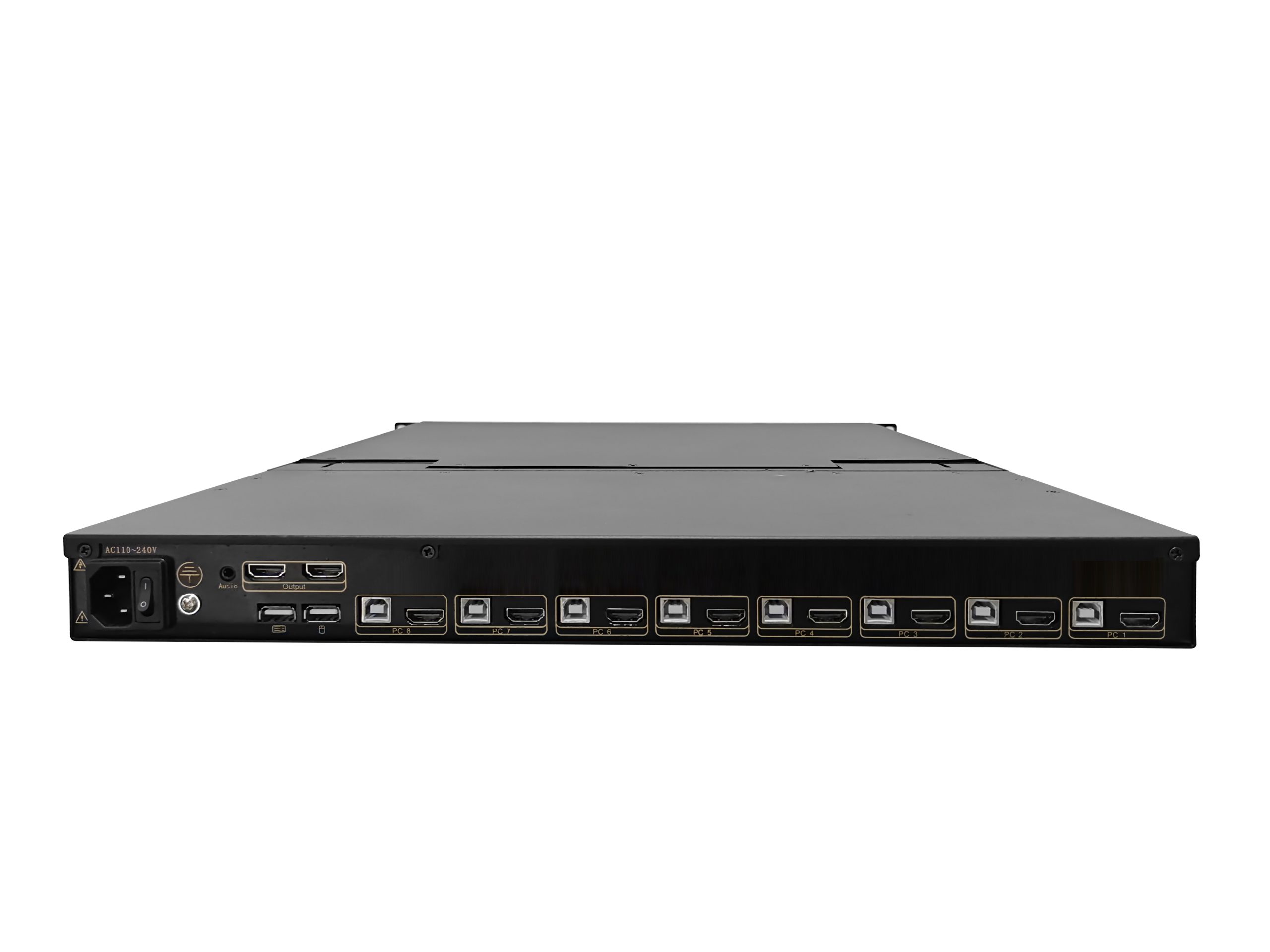

The Axtron’s LED KVM Switch features an integrates 17.3″ LED screen, Mechanical silent keyboard, and touchpad in a single console, occupying only 1U of rack space.

Send Email Get Price

Product Overview Product Features Parameter Related Product Contact us

Product Overview

The TX-17 series integrates LED monitors, ultra-thin keyboard, and mouse touchpad in a 1U unit. It adopts a drawer-type installation method to completely solve the lack of space. Compared with standard keyboards, monitors, and mice, it can save 85% of the space. It adopts high-quality A-level 17.3" LED (no bright spots) display and built-in switch to directly manage 8 servers; it can manage up to 256 servers.

Product Features

Integrate a 17.3-inch LED high-definition monitor and KVM console into a single dual-rail body, occupying only 1U rack space
The LED display can be unfolded to 135 degrees to provide a comfortable viewing angle
Drawer type, USB HUB function can be realized through the front USB2.0 interface
Easily switch between servers via hotkeys and panel buttons
Provides automatic scanning mode to continuously monitor user selected host
Support hot-swapping - can be added or removed at any time without turning off the power server
Naming the server and fuzzy input of the SN number can quickly locate and select the server security features you need
A single console manages 8 servers
Multiple devices can be cascaded and can manage up to 256 computers
Support multi-user account management and management level, password protection and search PC server name
17.3-inch LED LCD display, high brightness, high definition, resolution up to 1920x1080@60Hz
The LED display and keyboard/touchpad can be pulled out. In order to effectively save space in the computer room, when the keyboard/touchpad is not in use, it can be pushed back into the rack, leaving only the thin LED display for easy monitoring by managers. see server status
Support various operating systems：Dos/Windows series, Linux, Unix Mac OS 8.6/9/10, SUN Solaris 8/9

Parameter

Model	TX-1708HD
direct computer connection	8 units
Maximum computer connections	256 units
cable port	HDMI interface (3*USB keyboard and mouse)
Toggle scan time	1~255 seconds (OSD adjustable)
Applicable cabinet	800-1040 MM
switch mode	hotkey switch key switch
LED display	17.3 inch LED resolution: 1920*1080 brightness: 300nits contrast ratio 1000:1
LED display control	multilingual OSD Adjust for best results
keyboard/mouse	104 Mechanical silent keyboardTouchpadtouch pad
Voltage input	A110V-240V 50Hz-60Hz power:35W
Cabinet material	High-strength corrosion-resistant steel plate
color	Insulating black paint (Other colors available)
physical dimension	450mm(deep)444mm(Width)43.8mm(high)
weight	17.5KG
storage temperature	-30℃~70℃
Operating temperature	-10℃~60℃
humidity	0%~80%RH
Safety certification	FCC CE ROHS ISO9001
