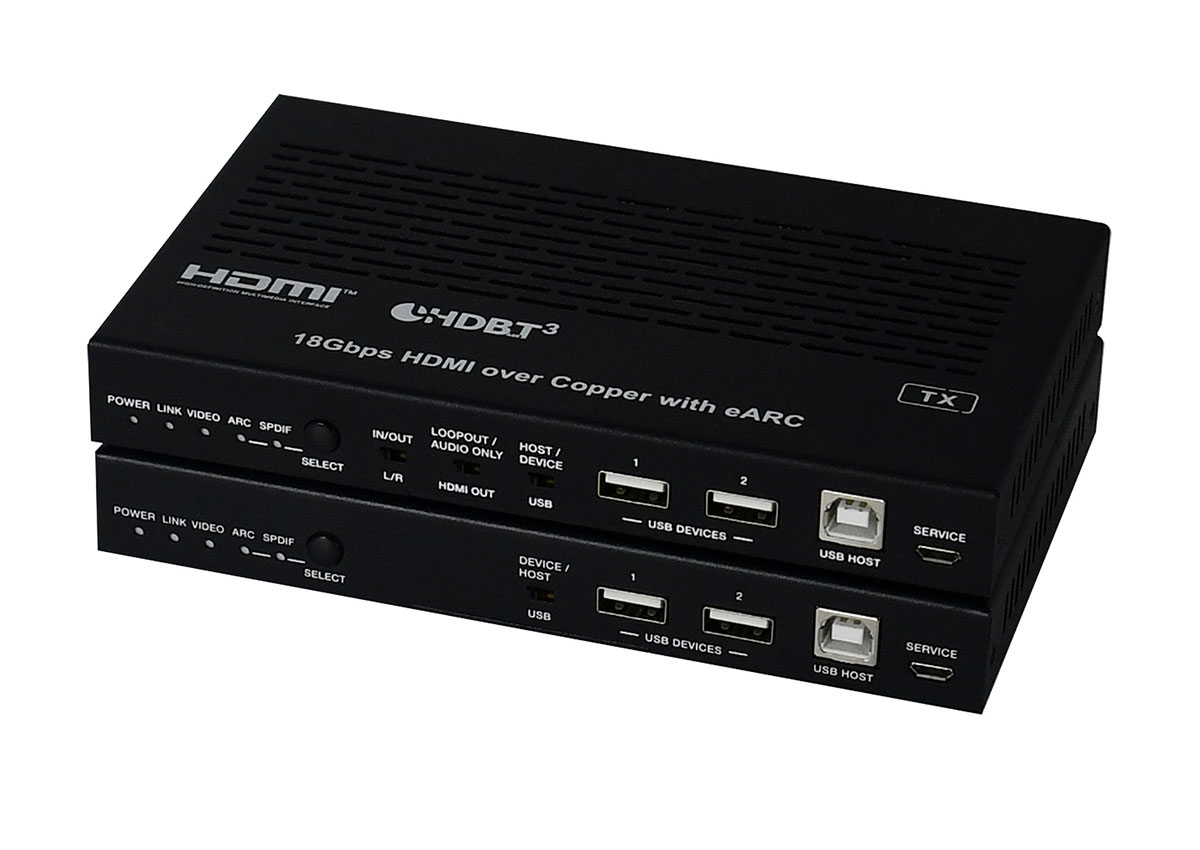

This HDBaseT 3.0 extender extends HD/UHD audio/video signals, eARC/ARC, RS-232, bidirectional infrared control signals, 1GbE Ethernet and USB2.0 signals up to 100 meters via CAT6a/7 network cables, enabling zero-latency and uncompressed long-distance transmission between signal sources and display devices. The highest resolution is 4K @ 60Hz 4:4:4.
This HDBaseT 3.0 extender extends HD/UHD audio/video signals, eARC/ARC, RS-232, bidirectional infrared control signals, 1GbE Ethernet and USB2.0 signals up to 100 meters via CAT6a/7 network cables, enabling zero-latency and uncompressed long-distance transmission between signal sources and display devices. The highest resolution is 4K @ 60Hz 4:4:4. The Transmitter supports audio embedding and stripping, and the receiver supports audio stripping. This product supports the eARC/ARC function (the audio from HDMI output of Receiver return to HDMI IN port, HDMI OUT port (Audio only), SPDIF OUT port of Transmitter). Also supports USB2.0 transmission (Host/Device configurable) and bidirectional POC functions.
This product provides the most convenient solution for HDMI extension application through the CAT cable, and can be widely used in video conference system, multimedia signal broadcasting, HDMI signal extension and other fields.
|
Parameter Specifications |
|||
|
HDMI Compliance |
HDMI2.0b |
||
|
HDCP Compliance |
HDCP 2.2 |
||
|
Video Bandwidth |
18Gbps |
||
|
Video Resolution |
Up to 4K@60Hz 4:4:4 |
||
|
HDBaseT Bandwidth |
The main link rate is 16Gbps, and the return link rate is 2Gbps |
||
|
HDR |
HDR, HDR10, HDR10+, Dolby Vision, HLG |
||
|
Color Space |
RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
||
|
Color Depth |
8/10/12-bit |
||
|
HDMI Audio Format |
LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
||
|
L/R Audio Format |
PCM2.0 |
||
|
SPDIF Audio Format |
LPCM2.0, AC3 5.1, DTS 5.1 |
||
|
IR Level |
12Vp-p |
||
|
IR Frequency |
20K-60KHz |
||
|
USB Bandwidth |
Up to 350Mbps |
||
|
Ethernet |
1000Mbps |
||
|
RS-232 |
Up to 921600bps |
||
|
Transmission Distance |
100m (via single CAT6A/7 network cable) |
||
|
ESD Protection |
Human body model: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
||
|
Connection |
|||
|

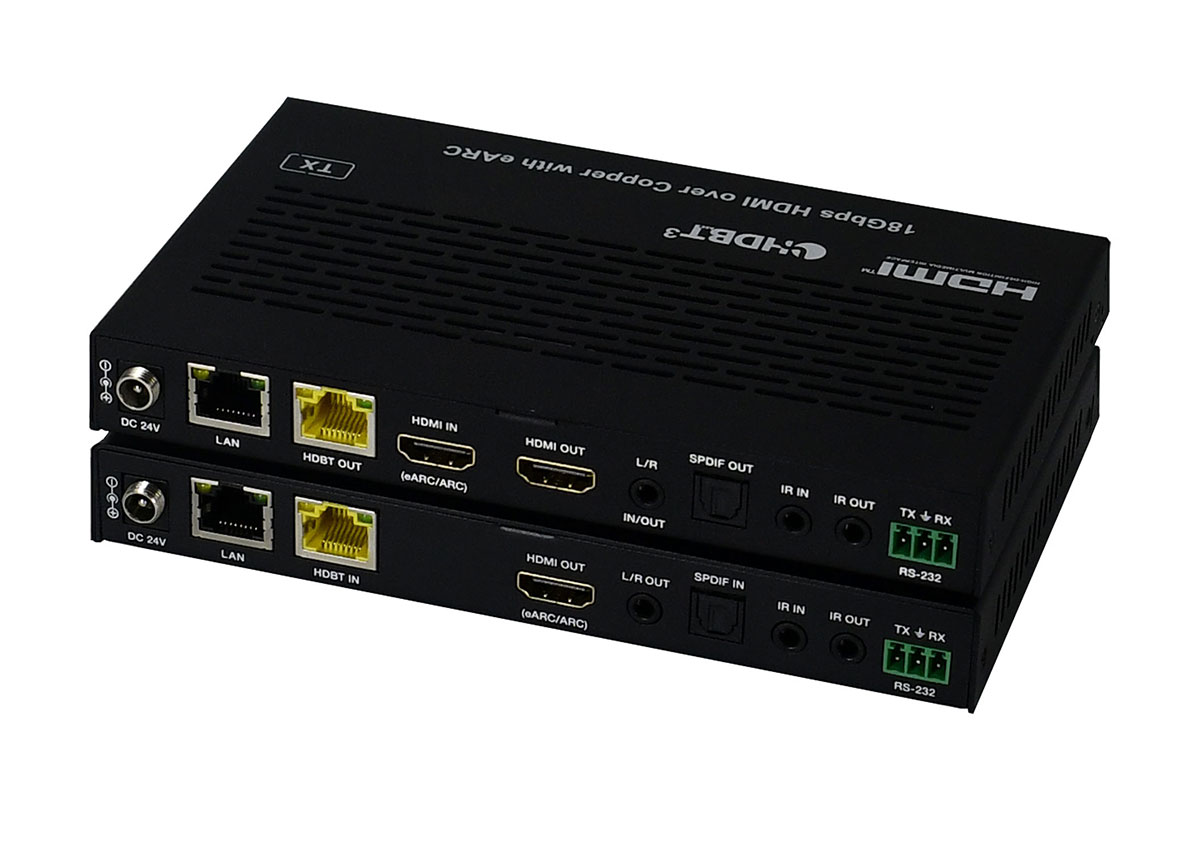

Transmitter |

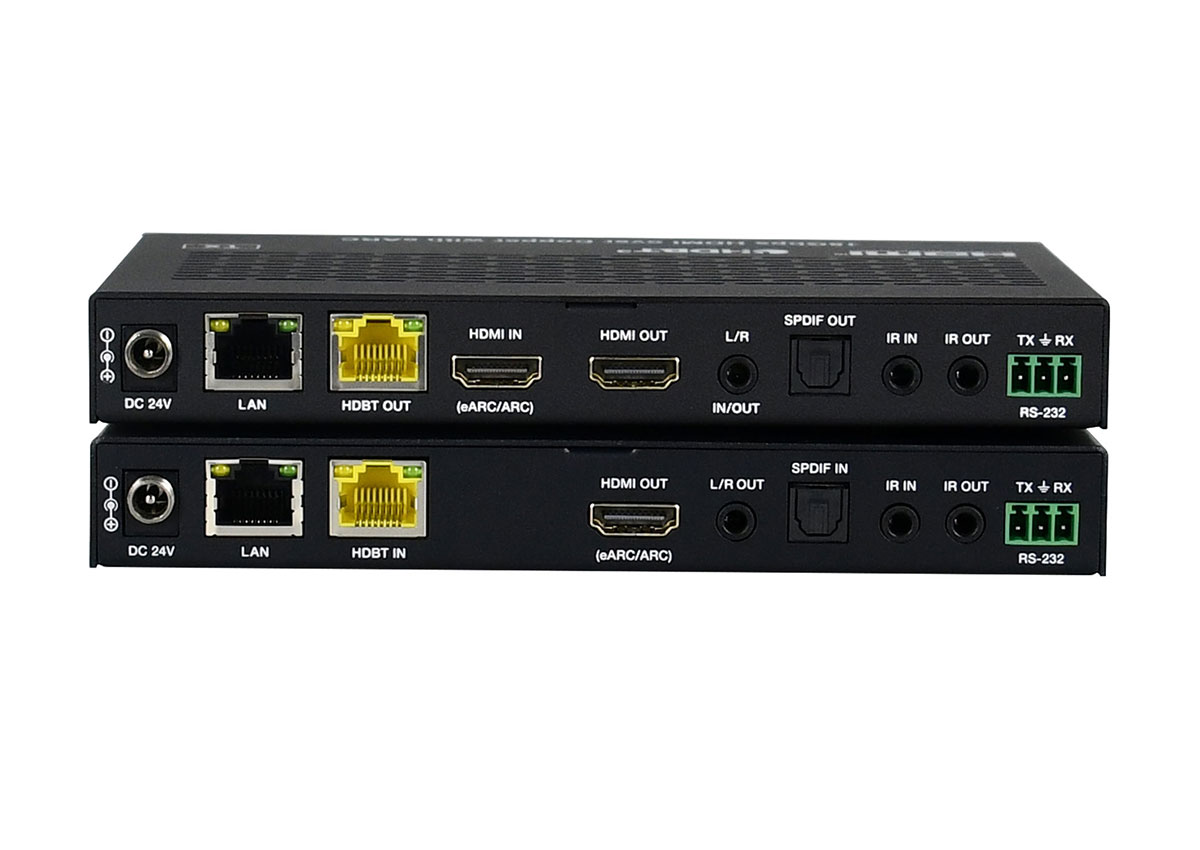

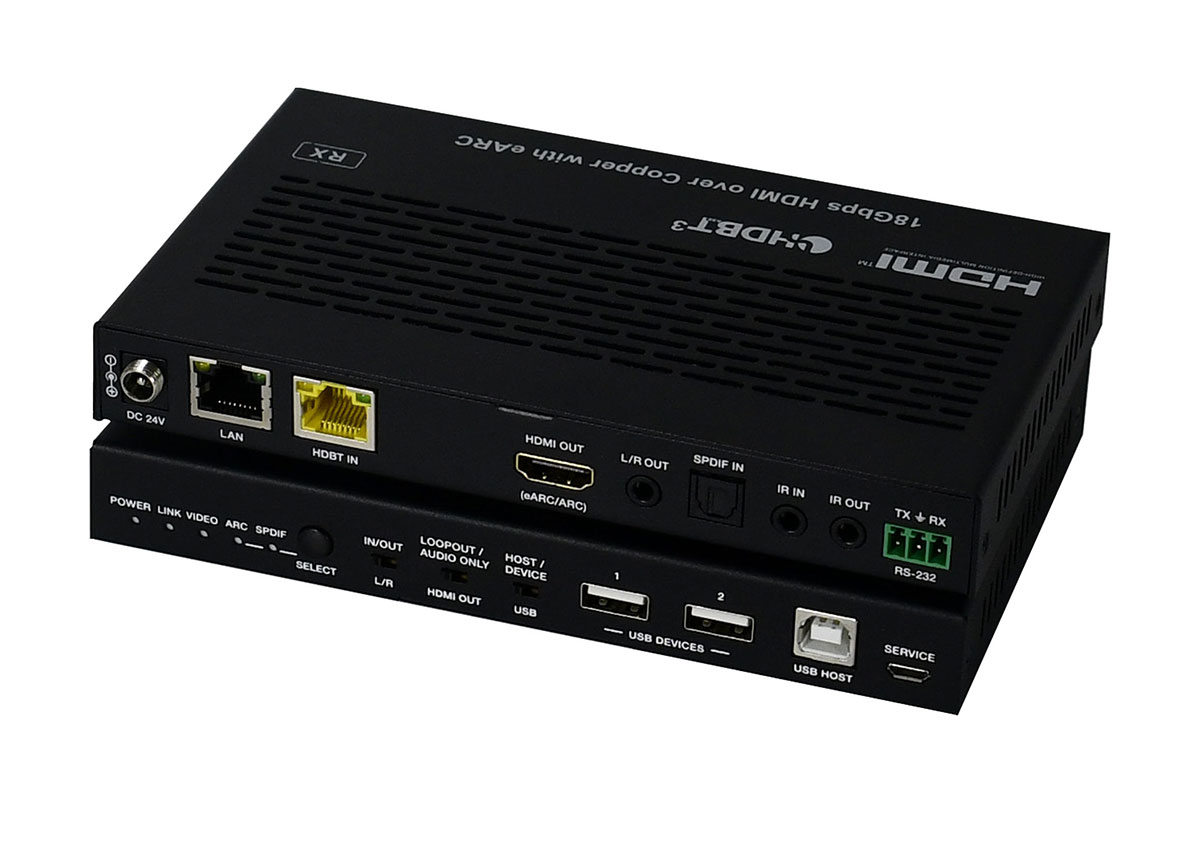

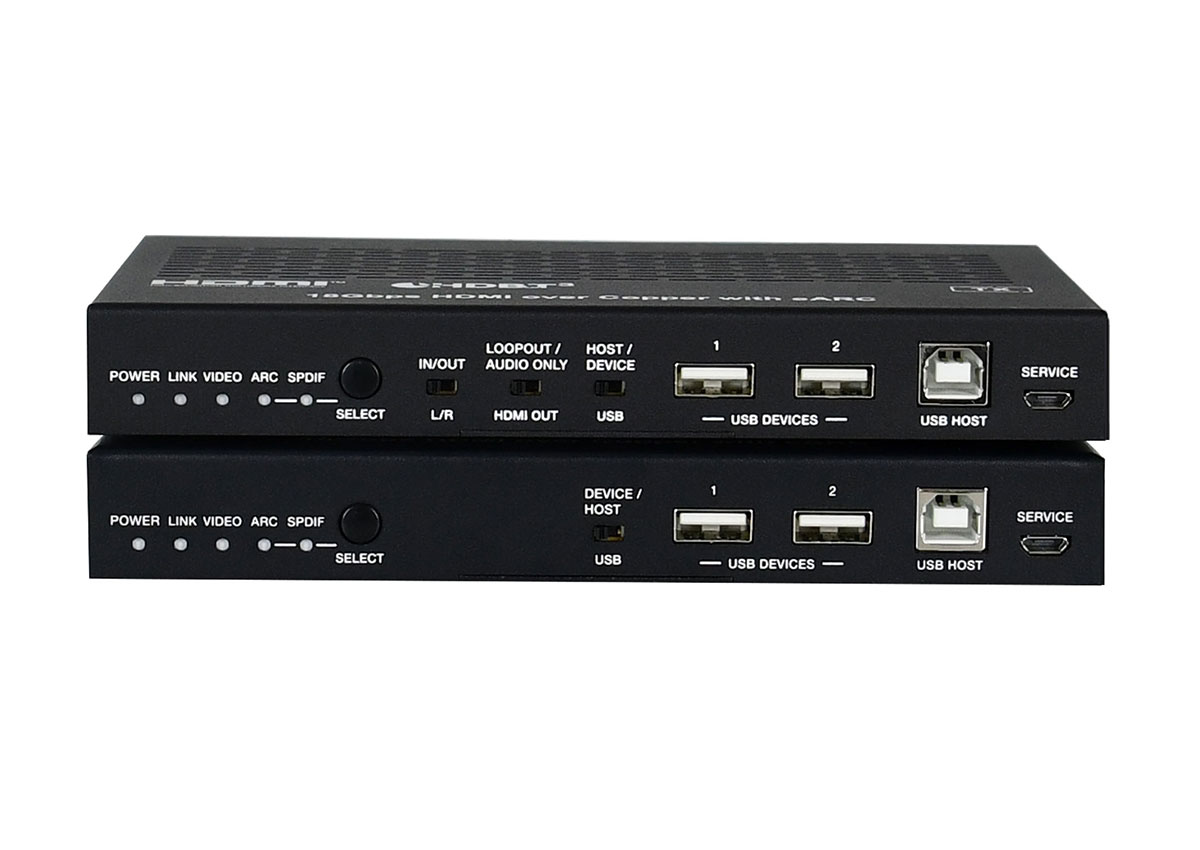

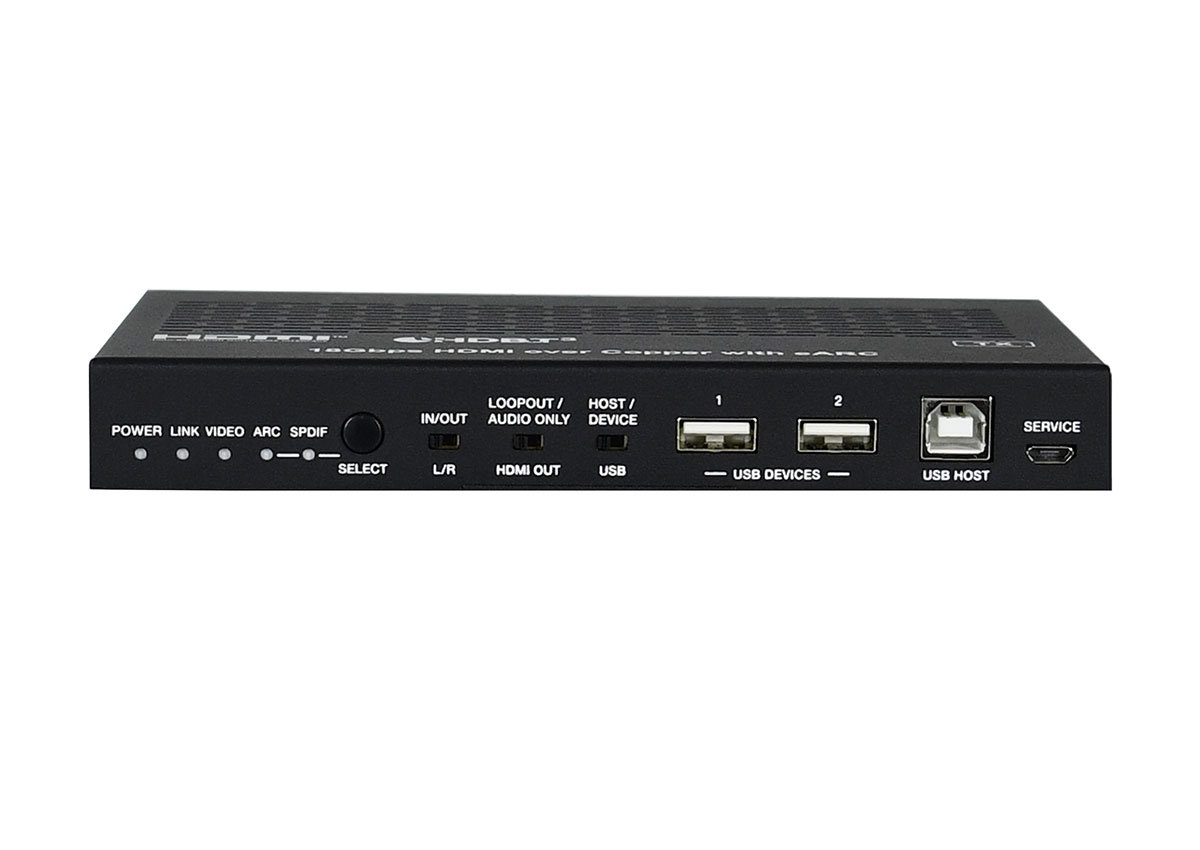

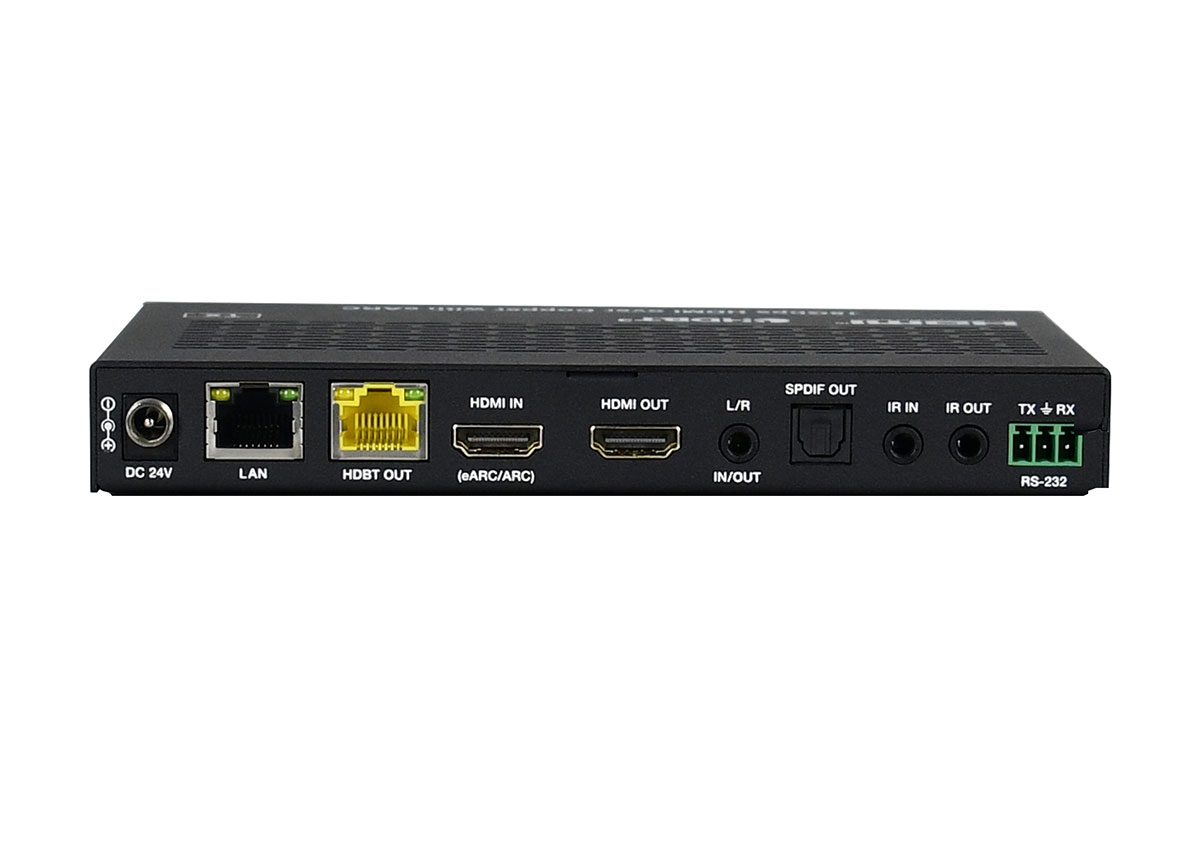

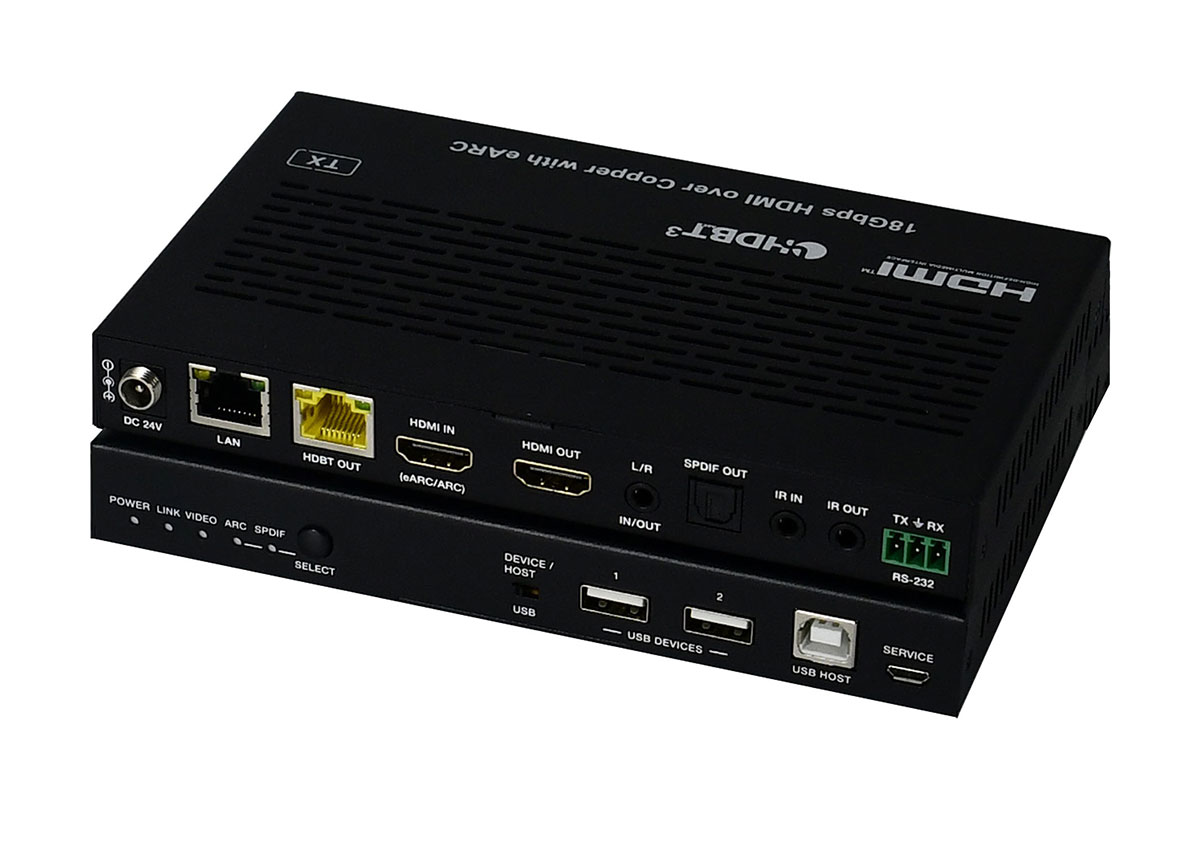

Input Port: 1 x HDMI IN [Type A, 19-pin female] Output Port: 1 x HDMI OUT [Type A, 19-pin female] 1 x HDBT OUT [RJ45, 8-pin female] 1 x SPDIF OUT [S/PDIF] 1 x L/R OUT [3.5mm Stereo Mini-jack] Control Port: 1 x IR IN [3.5mm Stereo Mini-jack] 1 x IR OUT [3.5mm Stereo Mini-jack] 1 x RS-232 [phoenix terminal] 1 x SERVICE [Mini-USB, firmware upgrade port] 1 x USB HOST [USB Type B] 2 x USB DEVICES [USB Type A] 1 x LAN [RJ45] |
||
|

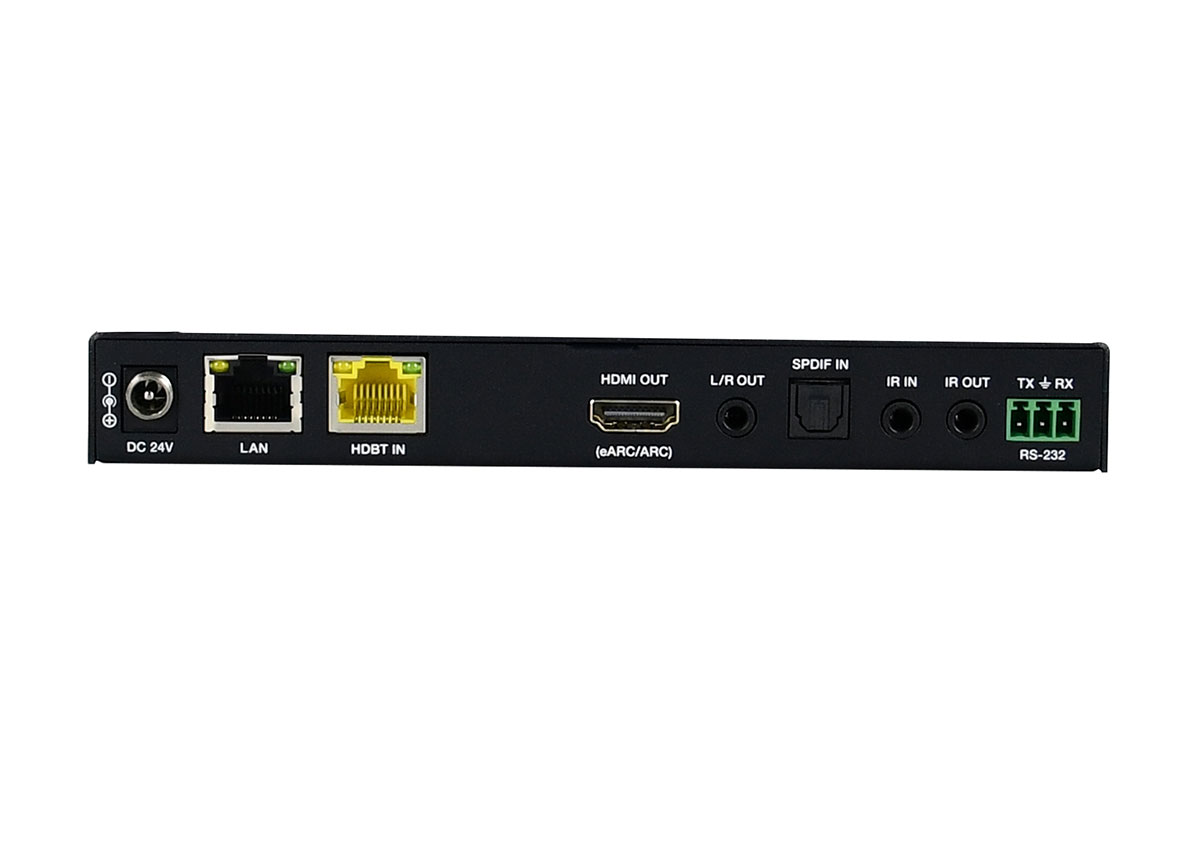

Receiver |

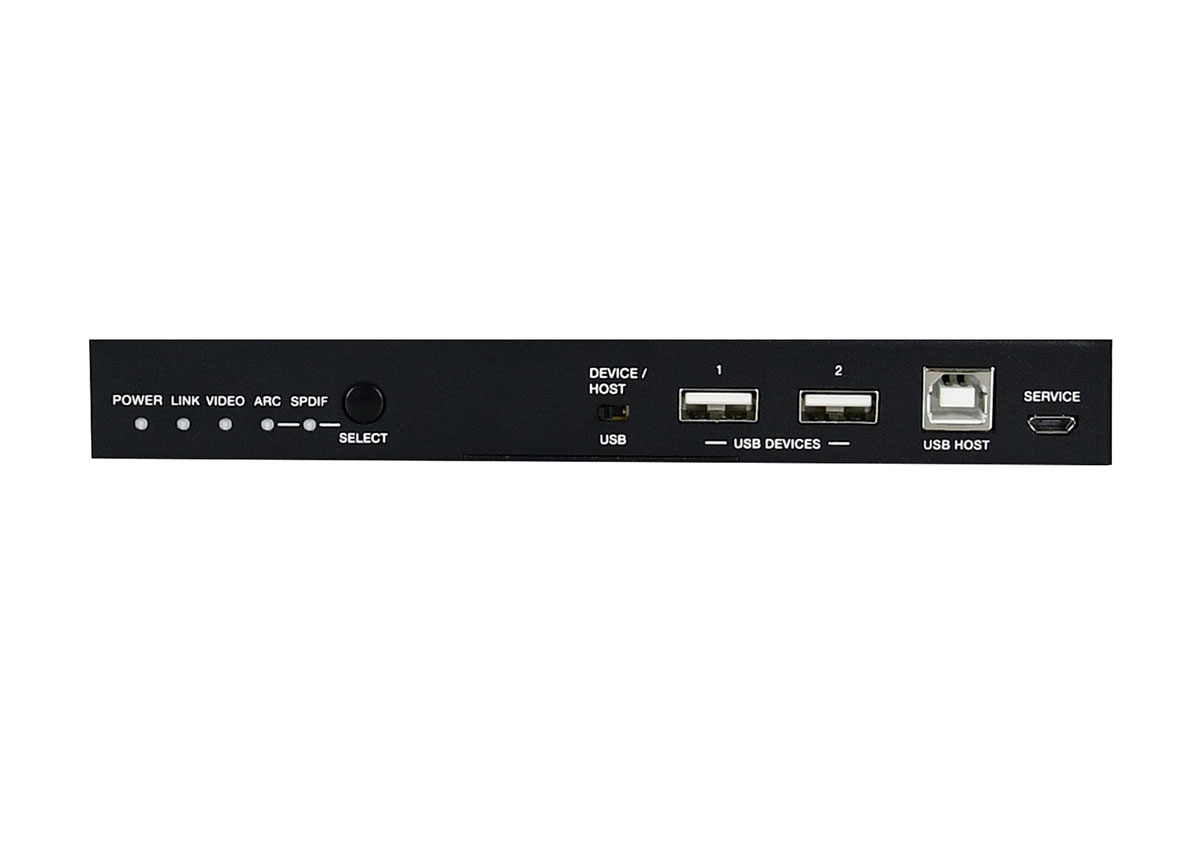

Input Port: 1 x HDBT IN [RJ45, 8-pin female] 1 x SPDIF IN [S/PDIF] 1 x HDMI OUT [Type A, 19-pin female] 1 x L/R OUT [3.5mm Stereo Mini-jack] Control Port: 1 x IR IN [3.5mm Stereo Mini-jack] 1 x IR OUT [3.5mm Stereo Mini-jack] 1 x RS-232 [3pin-3.81mm phoenix terminal] 1 x SERVICE [Mini-USB, firmware upgrade port] 1 x USB HOST [USB Type B] 2 x USB DEVICES [USB Type A] 1 x LAN [RJ45] |
||
|
Mechanical |
|||
|
Housing |
Metal Enclosure |
||
|
Color |
Black |
||
|
Dimensions |
Transmitter/ Receiver: 170mm (L)x102mm(W)x22mm(H) |
||
|
Weight |
Transmitter: 425g, Receiver: 437g |
||
|
Power Supply |
Input: AC 100-240V 50/60Hz Output: DC 24V/1A (US/EU standard, CE/FCC/UL Certificate) |
||
|
Power Consumption |
Transmitter/ Receiver: 15.36W (POC) |
||
|
Operating Temperature |
0℃-40℃ / 32℉-104℉ |
||
|
Storage Temperature |
-20℃ -60℃ / -4℉ -140℉ |
||
|
Relative Humidity |
20-90% RH (non-condensing) |
||
|
Resolution/ Cable Length |
4K60 - Meter |
4K30 - Meter |
1080P 60 - Meter |
|
HDMI IN/OUT |
5 meter |
10 meter |
15 meter |
|
Advanced high speed HDMI cable is recommended |
|||
