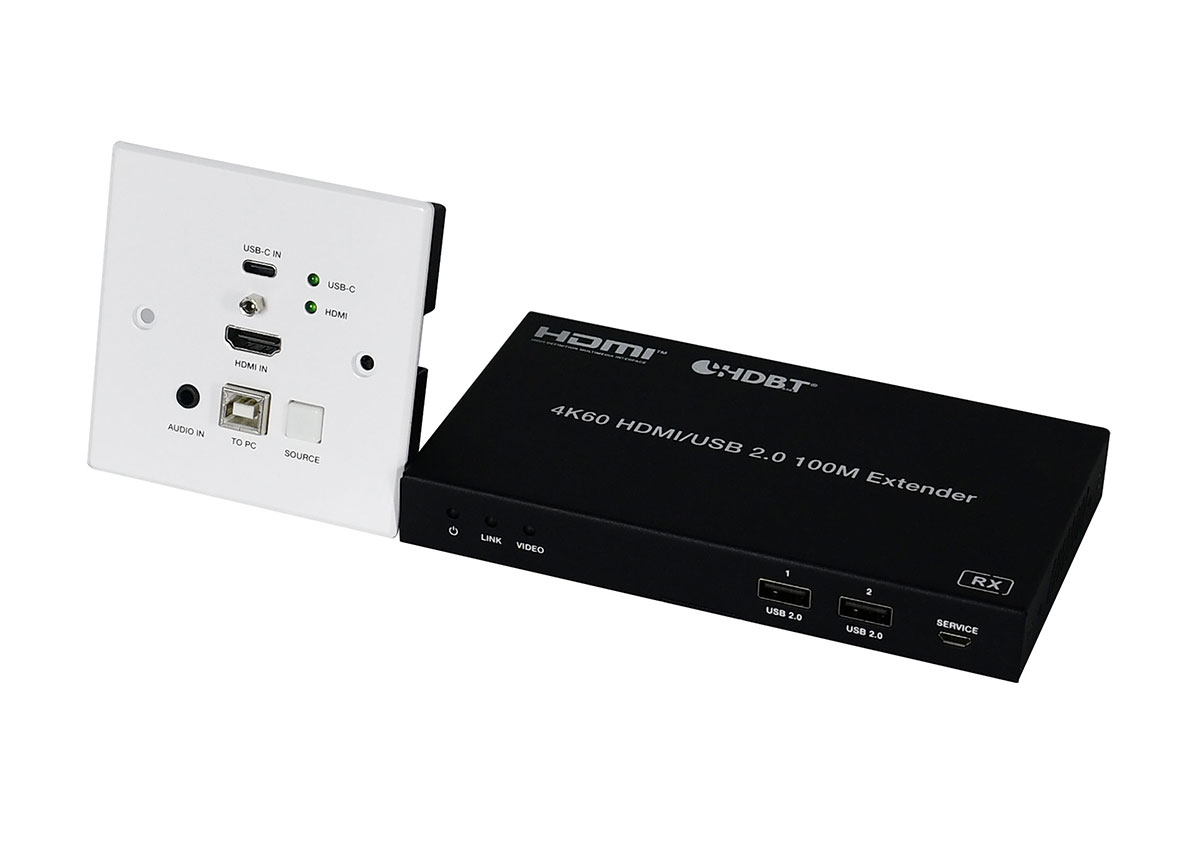

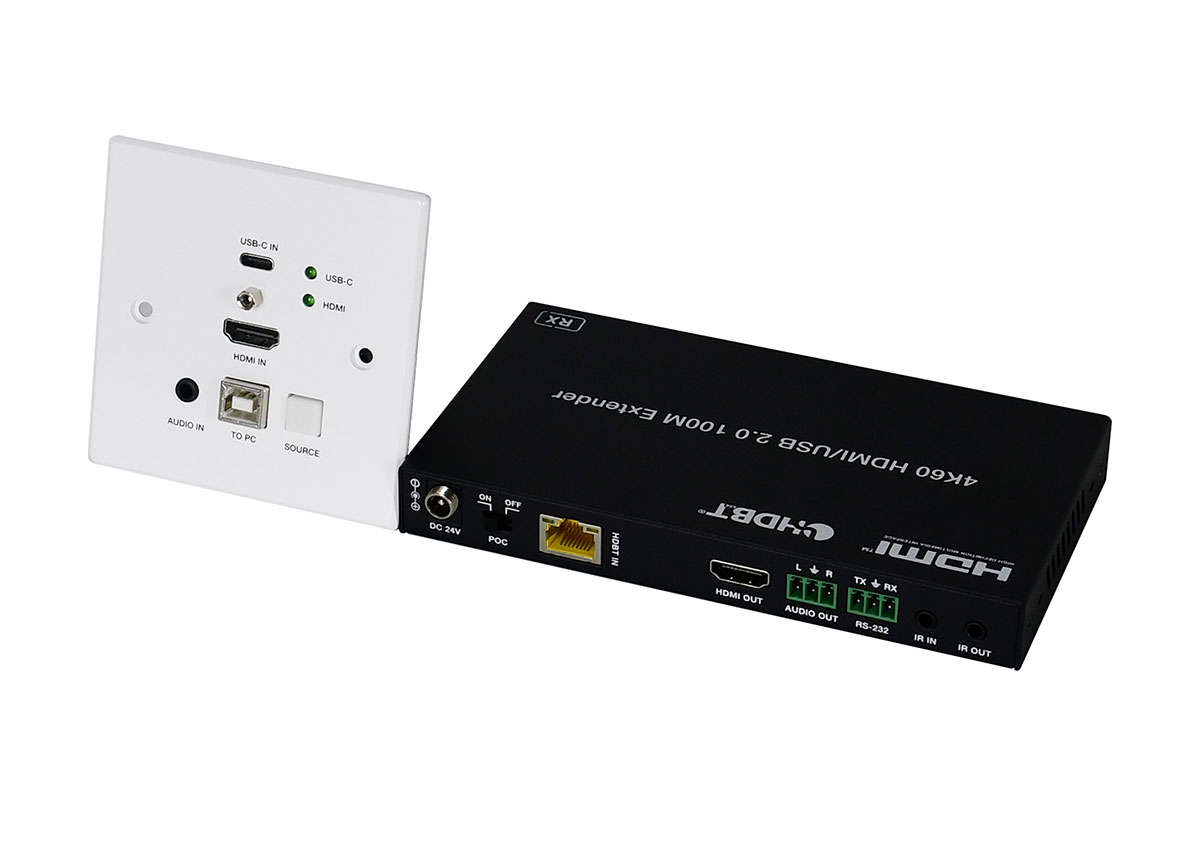

The 4K60 HDMI/USB-C 2×1 HDBT Wall-plate Transmitter supports one HDMI input and one USB-C input within a standard 86mmx86mm wall box. It can transmit HDMI high-definition signal, bidirectional IR control signal, bidirectional RS-232 control signal and USB 2.0 signal over CAT6 to the distance up to 328ft/100m (HBT mode) or 492f/150m (LRM mode).
The 4K60 HDMI/USB-C 2x1 HDBT Wall-plate Transmitter supports one HDMI input and one USB-C input within a standard 86mmx86mm wall box. It can transmit HDMI high-definition signal, bidirectional IR control signal, bidirectional RS-232 control signal and USB 2.0 signal over CAT6 to the distance up to 328ft/100m (HBT mode) or 492f/150m (LRM mode). Video resolution is up to 4K2K@60Hz (4:4:4).
This product converts HDMI signal to standard HDBaseT signal and transmits it through LAN cable. It can easily control signal source device or display device from the remote end through bi-directional IR signal pass-through function. It also supports POC function with POC control switch. The Extender can be widely used in other fields such as video conference system, multimedia signal broadcasting, HDMI signal extension, etc.
|
Technical |
|
|
HDMI Compliance |
HDMI 2.0b |
|
HDCP Compliance |
HDCP 2.2 |
|
Video Bandwidth |
HDMI: 18Gbps; USB-C: 5.4Gbps |
|
HDMI Video Resolution |
Up to 4K2K@60Hz 4:4:4 |
|
Color Space |
RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
|
Color Depth |
8/10/12bit |
|
HDMI Audio Formats |
LPCM 7.1CH, Dolby True HD and DTS-HD Master (Full format) |
|
Analog Audio Embedding |
48KHz |
|
Transmission Distance |
LRM mode: 492ft/150m (4K30/1080P) STD-HBT mode: 328ft/100m (4K60/4K30/1080P) |
|
ESD Protection |
Human body model-±8kV (Air-gap discharge), ±4kV(Contact discharge) |
|
Connections |
|
|
Transmitter |

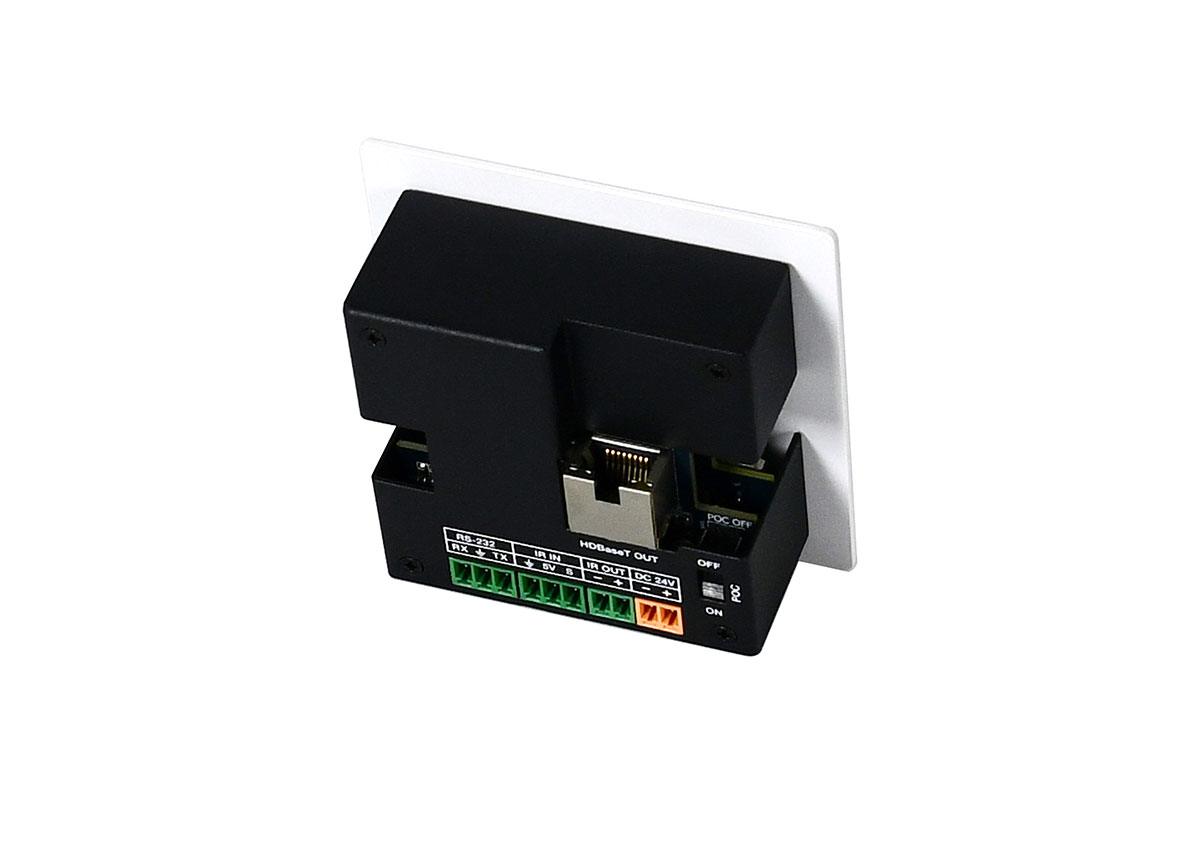

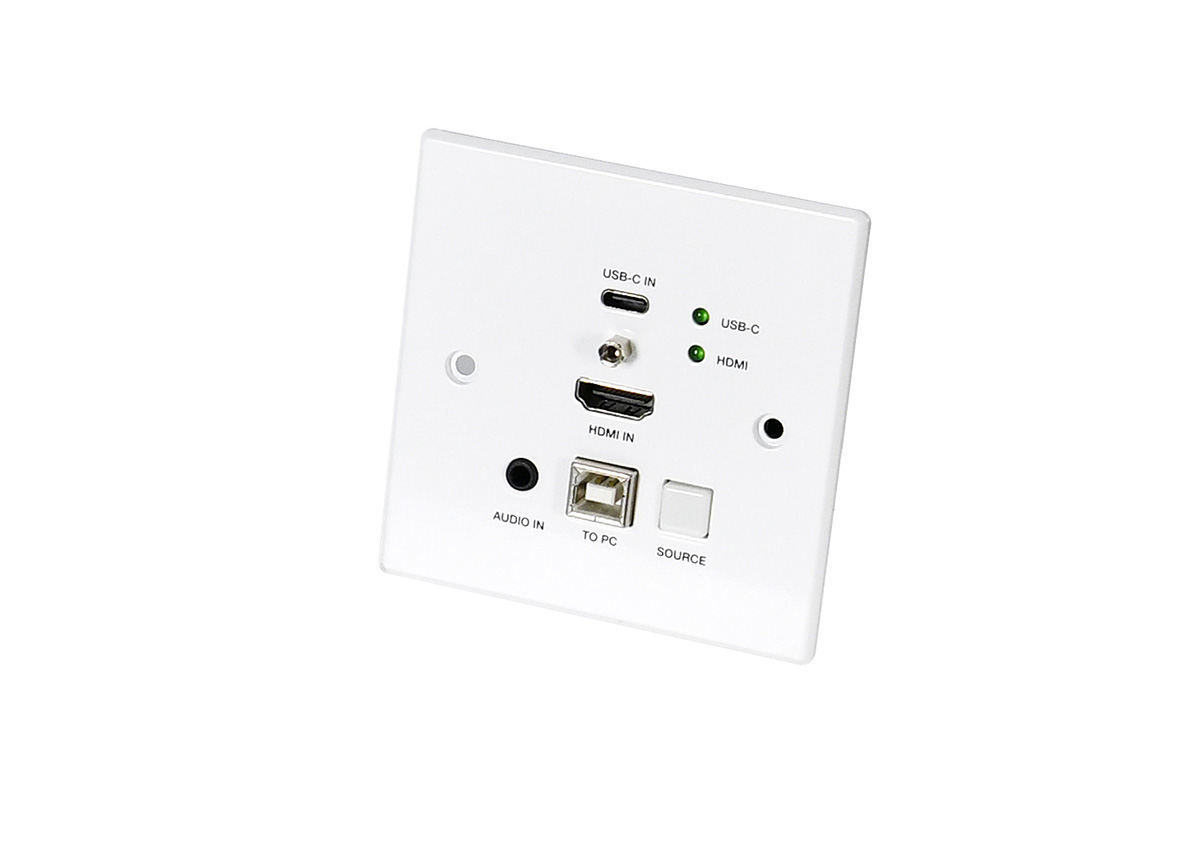

Input： 1 x HDMI IN [Type A, 19-pin female)] 1 x USB-C IN [USB Type C] 1 x AUDIO IN (3.5mm Stereo Mini-jack] Output: 1 x HDBaseT OUT [RJ45] Control: 1 x TO PC [USB Type B) 1 x RS-232 [3pin-3.81mm Phoenix connector) 1 x IR IN [3pin-3.81mm Phoenix connector) 1 x IR OUT [2pin-3.81mm Phoenix connector] |
|
Receiver |

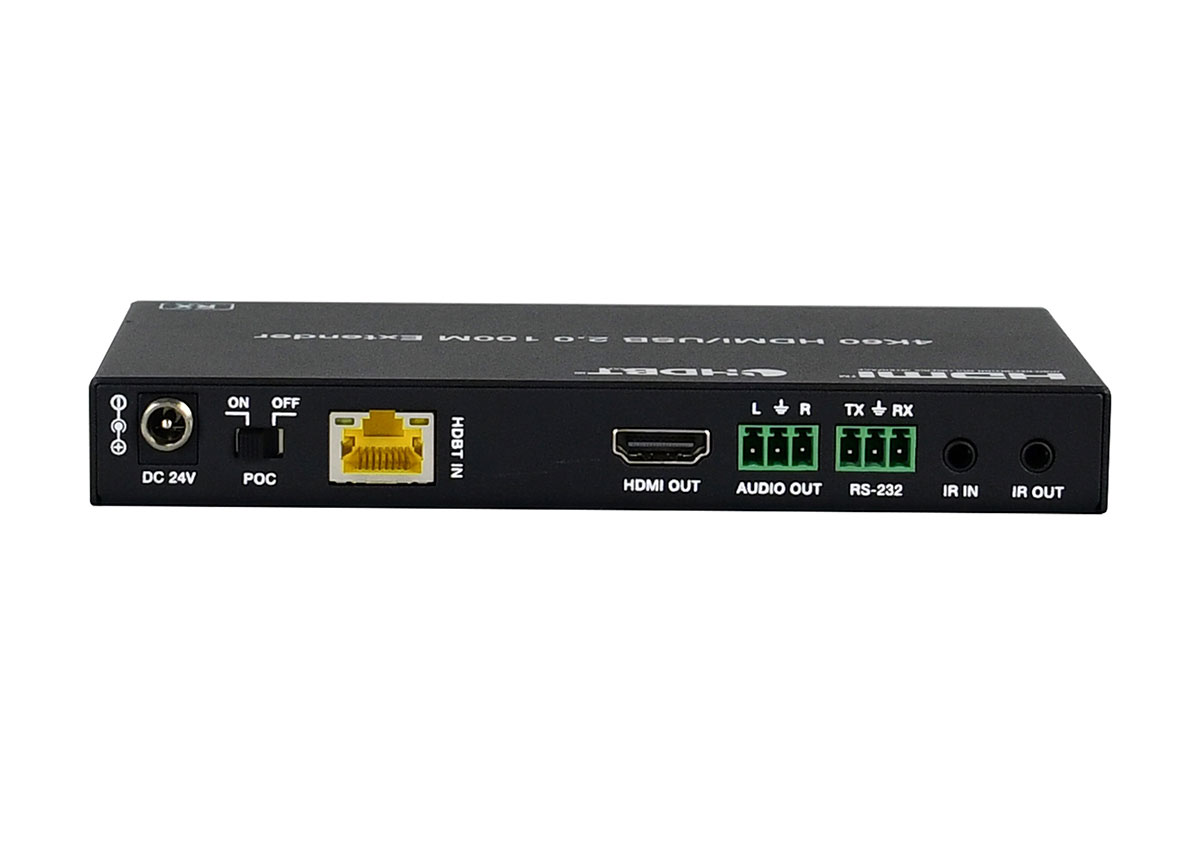

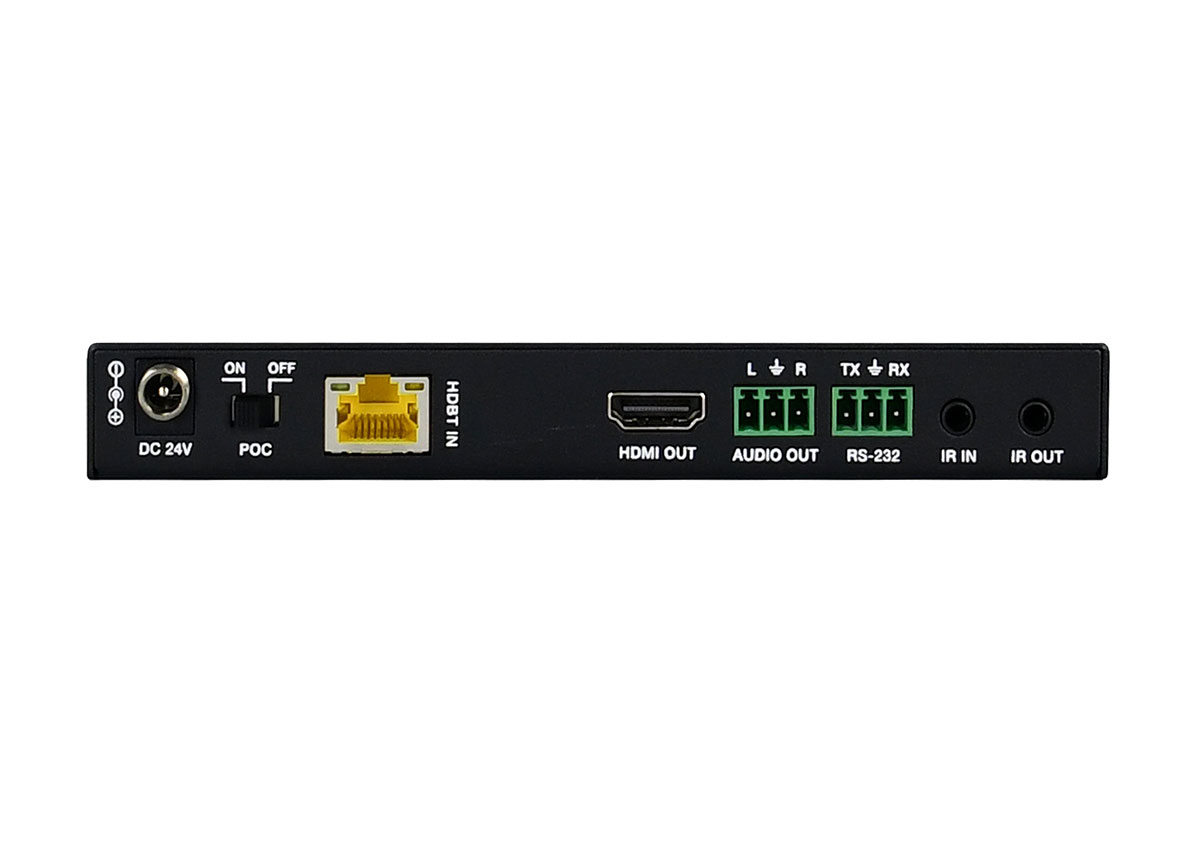

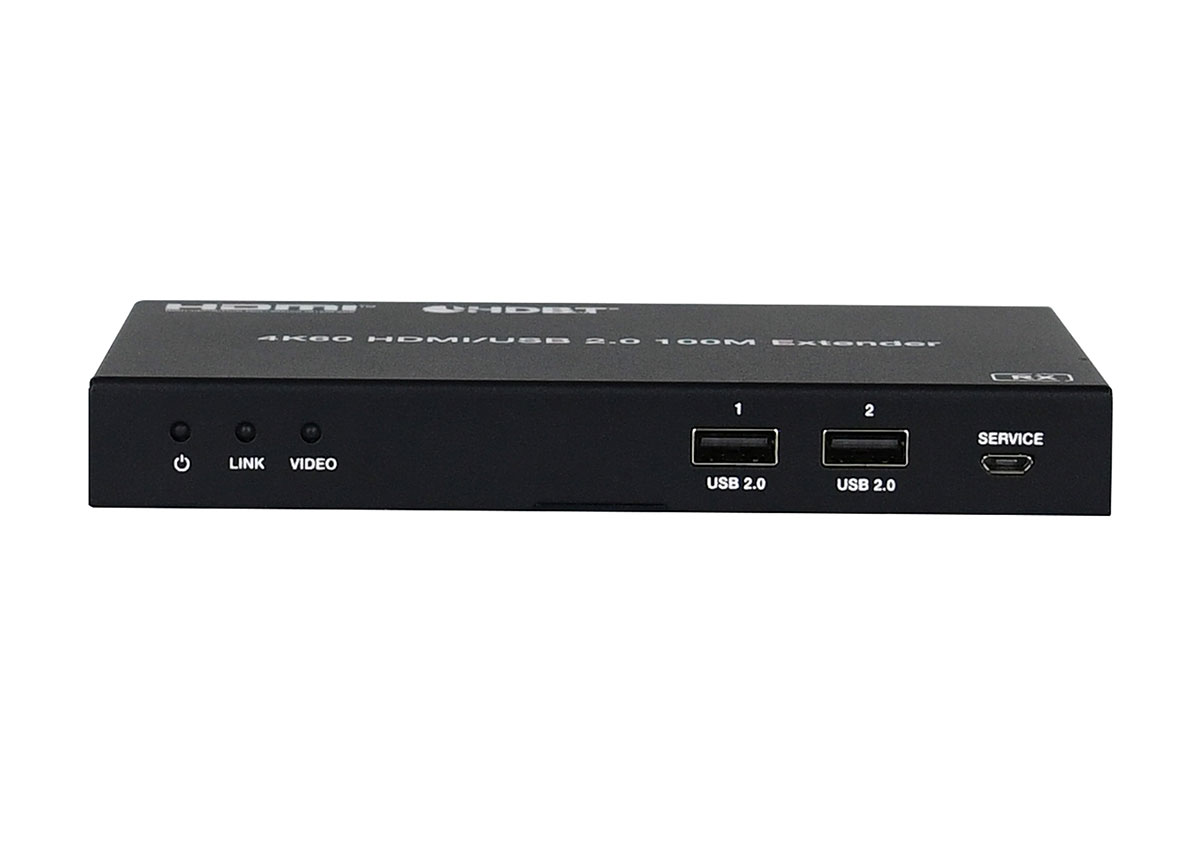

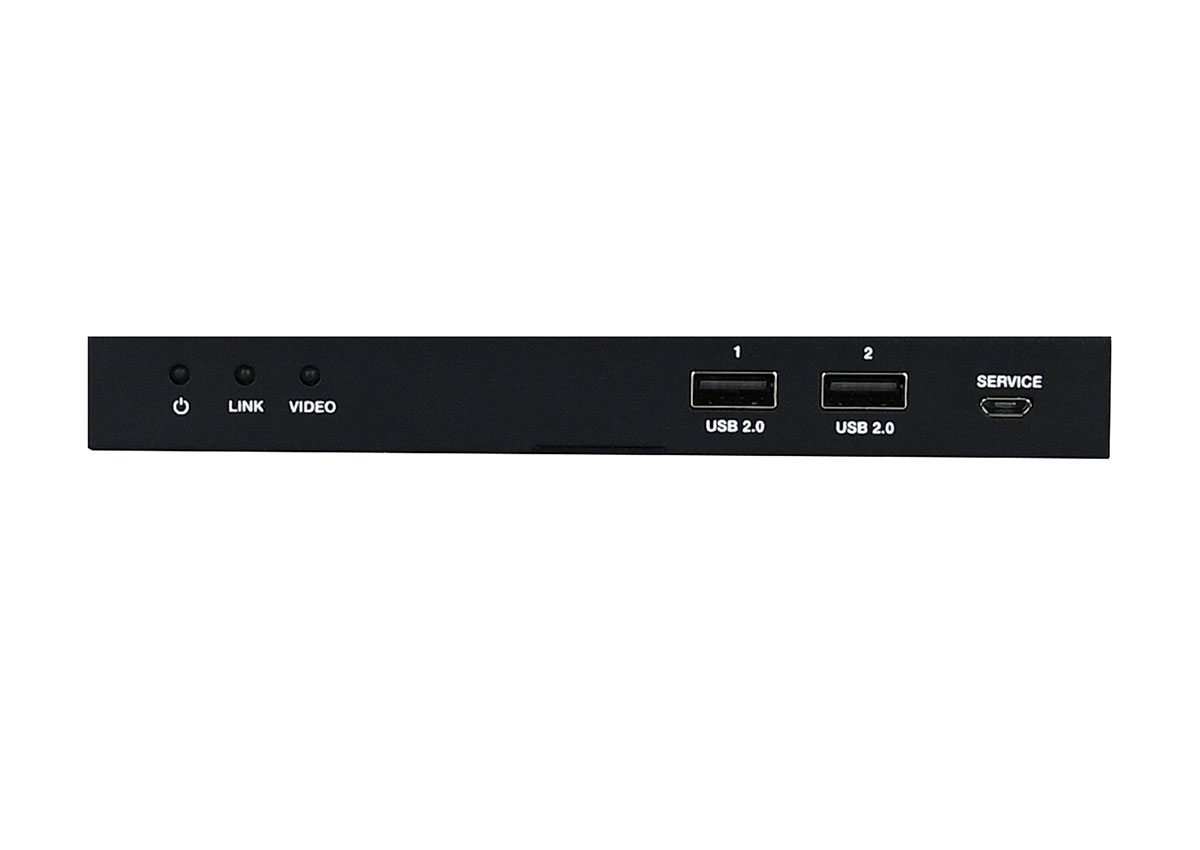

Input: 1 x HDBT IN(RJ45] Output: 1 x HDMI OUT [Type A, 19-pin female] 1 x AUDIO OUT [3pin-3.81mm Phoenix connector] Control: 2 x USB 2.0 [USB Type A] 1 x RS-232[3pin-3.81mm Phoenix connector] 1 x IR IN [3pin-3.81mm Phoenix connector] 1 x IR OUT [2pin-3.81mm Phoenix connector] 1 X SERVICE [Micro USB] |
|
Mechanical |
|
|
Housing |
Metal Enclosure |
|
Color |
Front panel: White; Rear case:Black |
|
Dimensions |
Transmitter: 86mm [W] x 86mm [D] x 38.5mm [H] Receiver: 157.2mm [W] x 88mm [D] x 20mm [H] |
|
Weight |
Transmitter: 234g; Receiver: 377g |
|
Power Supply |
24V/1A(supporting bidirectional POC power supply) |
|
Power Consumption |
12.48W(Max) |
|
Operating Temperature |
32-104℉/0-40℃ |
|
Storage Temperature |
-4-140℉/-20-60℃ |
|
Relative Humidity |
20-90% RH(no condensation) |
