4K60 HDBaseT Extender (150m) Support USB2.0 Transmission

Parameter Specifications

HDMI Compliance

HDMI 2.0b

HDCP Compliance

HDCP 2.2

Video Bandwidth

18Gbps

Video Resolution

Up to 4K2K@60Hz YUV 4:4:4

USB Compliance

USB 2.0

IR Level

5Vp-p

IR Frequency

Wide-band 20K-60KHz

Transmission Distance

HDBaseT mode: 4K60---100m

Long Reach mode: 1080P---150m, 4K60---120m

Color Space

RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0

Color Depth

8/10/12bit

HDR

HDR, HDR10, HDR10+, Dolby Vision, HLG

Audio Format

LPCM 7.1CH, Dolby True HD and DTS-HD Master

ESD Protection

Human body model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

Connection

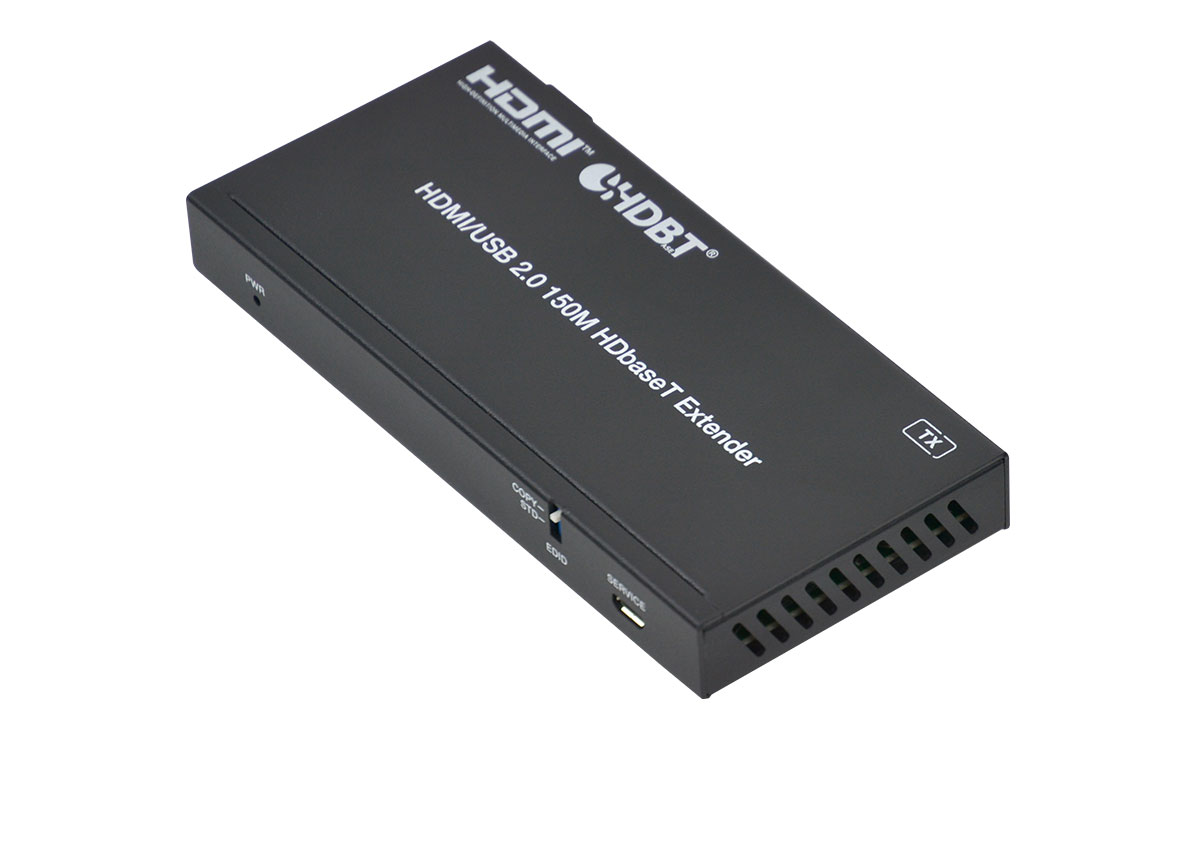

Transmitter

Input Port:

1 x HDMI IN [Type A, 19-pin female]

1 x IR IN [3.5mm Stereo Mini-jack]

1 x SERVICE [Micro-USB port]

1 x USB [USB-B, 4-pin female]

Output Port:

1 x HDBT OUT [RJ45, with indicator light]

1 x IR OUT [3.5mm Stereo Mini-jack]

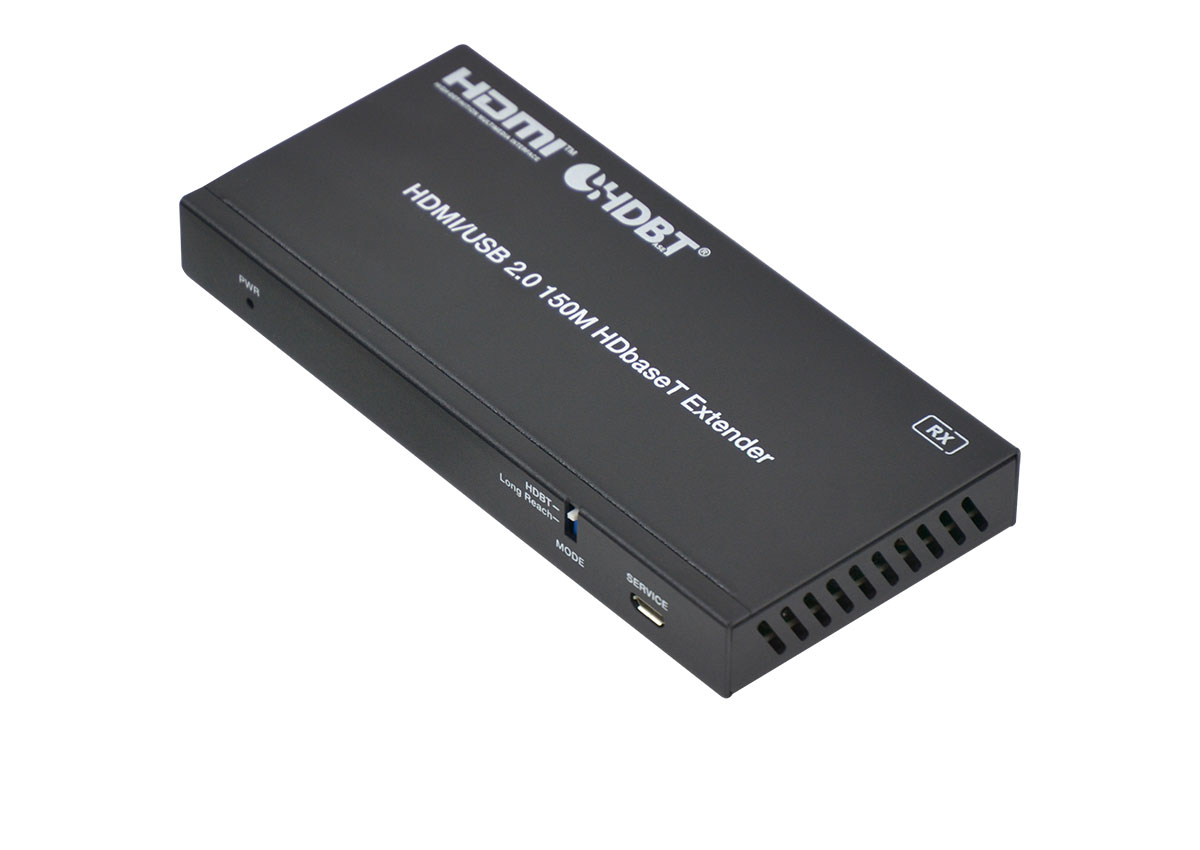

Receiver

Input Port:

1 x HDBT IN [RJ45, with indicator light]

1 x IR IN [3.5mm Stereo Mini-jack]

1 x SERVICE [Micro-USB port]
Output Port:

1 x HDMI OUT [Type A, 19-pin female]

1 x IR OUT [3.5mm Stereo Mini-jack]

2 x USB2.0 [Type A, 4-pin female]

Mechanical

Housing

Metal Enclosure

Color

Black

Dimensions

Transmitter/ Receiver:140mm (L)x65mm(W)x18mm(H)

Weight

Transmitter: 245g, Receiver: 249g

Power Supply

DC 24V/1A;

Support bidirectional POC function

Power Consumption

13.2W (Maximum)

Operating Temperature

0℃-40℃ / 32℉-104℉

Storage Temperature

-20℃ -60℃ / -4℉ -140℉

Relative Humidity

20-90% RH (non-condensing)
