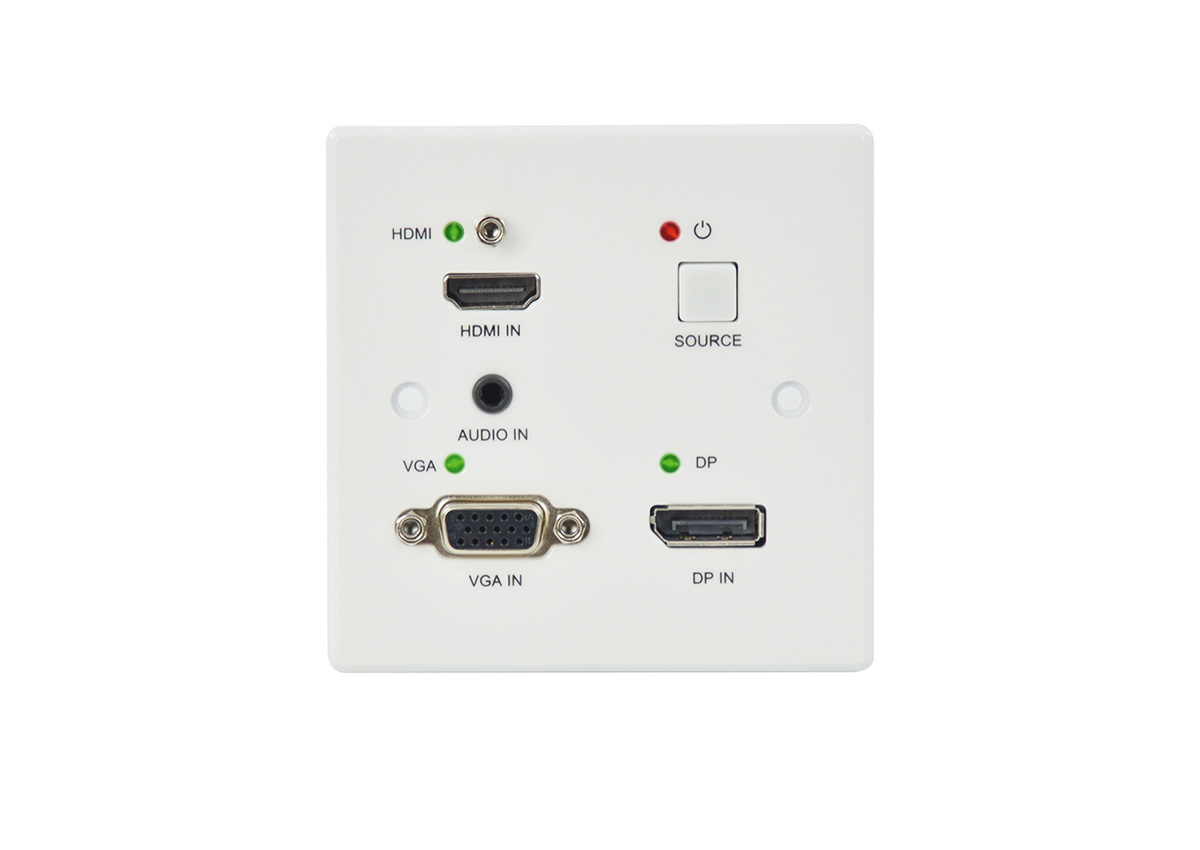

This 4K HDBaseT wall plug supports 3 inputs (HDMI/DP/VGA) and 1 output HDBaseT. Standard medium size 86 × 86mm wall boxes shall be used. 1080P @ 60Hz signals can be transmitted up to 70 meters and 4K@30Hz YCbCr 4:4:4 signals can be transmitted up to 40 meters through a single Cat6/6a network cable.
This 4K HDBaseT wall plug supports 3 inputs (HDMI/DP/VGA) and 1 output HDBaseT. Standard medium size 86 × 86mm wall boxes shall be used. 1080P @ 60Hz signals can be transmitted up to 70 meters and 4K@30Hz YCbCr 4:4:4 signals can be transmitted up to 40 meters through a single Cat6/6a network cable. The HDMI/DP input supports video resolutions up to 4K2K @ 30Hz, and the VGA input supports video resolutions up to 1920 × 1200 @ 60Hz. It supports both manual and automatic switching modes, as well as 24V POC function. Built-in bi-directional RS-232.
|
Parameter Specifications |
|
|
HDMI Compliance |
HDMI 1.4 |
|
HDCP Compatible |
HDCP 1.4 |
|
HDMI/DP Video Bandwidth |
10.2 Gbps |
|
HDMI/DP Video Resolution |
Up to 4K/2K@30Hz YCbCr 4:4:4 |
|
VGA Video Resolution |
Up to 1920×1200@60Hz |
|
Color Space |
RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
|
Color Depth |
8-bit (4K/2K@30Hz) |
|
HDMI/DP Audio Format |
LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS HIGH Res, DTS-HD Master Audio, DSD |
|
VGA Audio Format |
LPCM2.0/48KHz |
|
ESD Protection |
Human body model: ±8KV (Air-gap discharge), ±4KV (Contact Discharge) |
|
Connection |
|
|
Input Port |
1×HDMI Type A [19-pin female] 1×VGA [15-pin female] 1×DP [Standard size female] 1×AUDIO IN [3.5mm Stereo Mini-jack] |
|
Output Port |
1×HDBaseT Out [RJ45] |
|
Control Port |
1×RS-232 [phoenix terminal] |
|
Mechanical |
|
|
Housing |
Aluminum shell--front panel Iron case--rear panel |
|
Color |
White--front panel Black--rear panel |
|
Dimensions |
86mm (L)×86mm (W)×41mm (H) |
|
Weight |
205g |
|
Power Supply |
DC 24V/1A or support POC power supply |
|
Power Consumption |
5W (Maximum) |
|
Operating Temperature |
32-104℉ / 0-40℃ |
|
Storage Temperature |
-4-140℉ / -20-60℃ |
|
Relative Humidity |
20-90% RH (non-condensing) |
